Remote Switch: Service and Repair

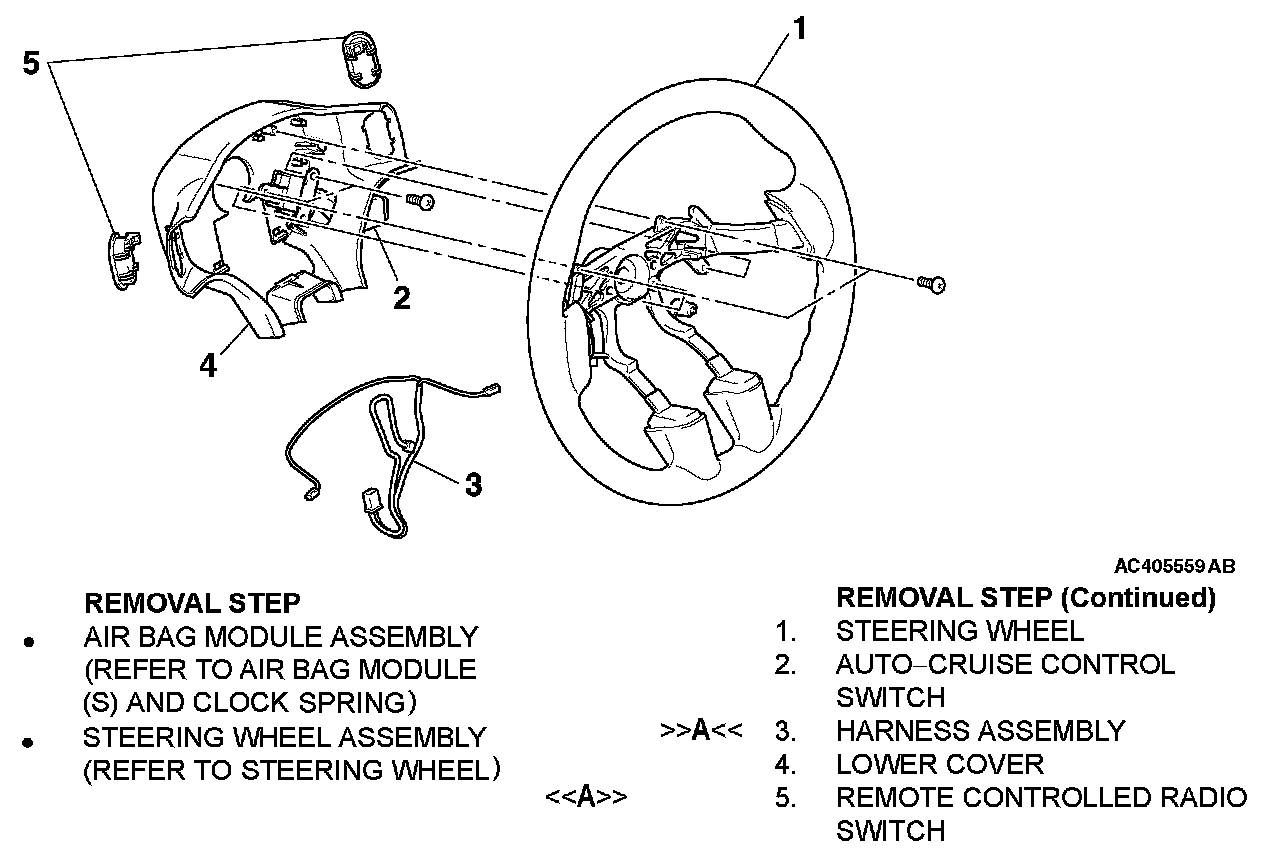

REMOTE CONTROLLED RADIO SWITCHRemoval Steps 1-5:
REMOVAL AND INSTALLATION
WARNING:
- Before removing the air bag module, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.
REMOVAL SERVICE POINT
<> REMOTE CONTROLLED RADIO SWITCH. REMOVAL

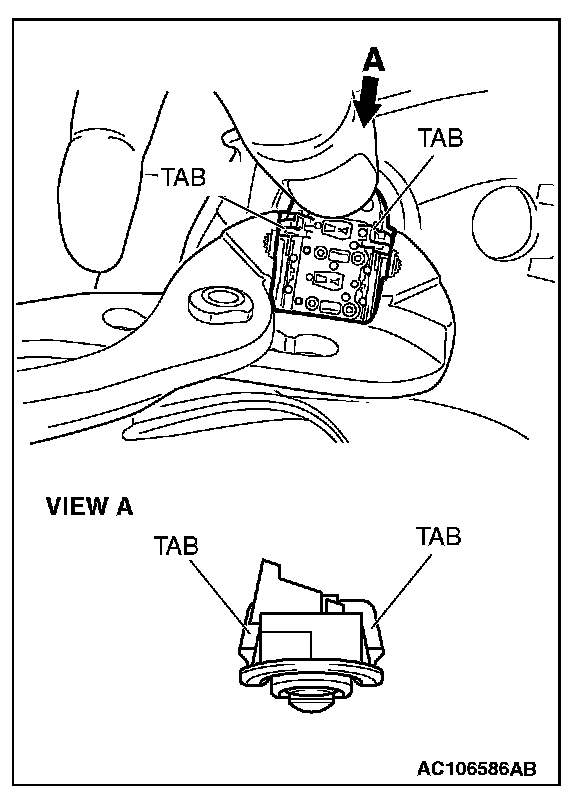

Use a tool to hold the tabs on the remote controlled radio switch, and push out the switch with your finger.
INSTALLATION SERVICE POINT
>>A<< HARNESS ASSEMBLY INSTALLATION.

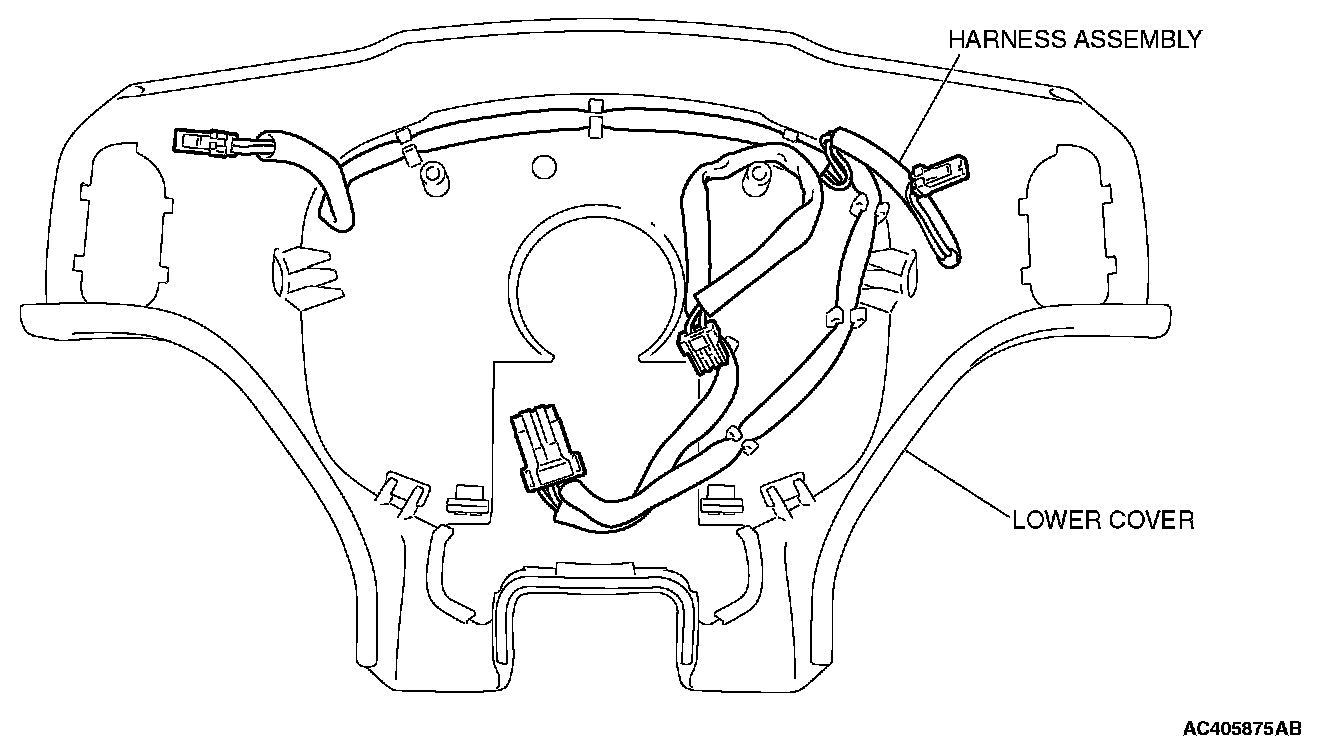

Attach the harness assembly to the position shown in the illustration.
