Audio System - Rear Subwoofer Garnish Buzz

No: TT-128-42A-001

DATE: July, 2006

MODEL: See Below

SUBJECT
REAR SUBWOOFER GARNISH BUZZ

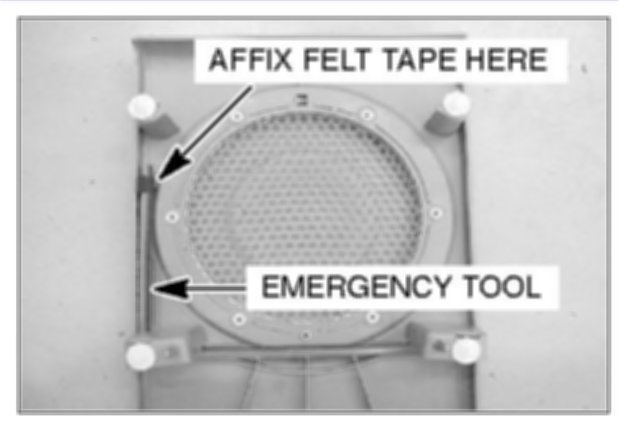

Rear Subwoofer Garnish Buzz - 2007 Eclipse Spyder. The emergency topstack tool may rattle against the rear subwoofer garnish when listening to the audio system. To correct this condition, cut a piece of felt tape approximately 12 mm x 35 mm, and wrap it around the tool about 10 mm from the end as shown.
