Compass Calibration One Turn Magnetic Compensation

ON-VEHICLE SERVICE

COMPASS CALIBRATION

ONE TURN MAGNETIC COMPENSATION
The compass is self-calibrating under normal driving conditions. It is not necessary to manually calibrate the compass. If manual calibration is desired, follow these instructions.
1. Engine started.
2. Display the compass on the multi-center display.

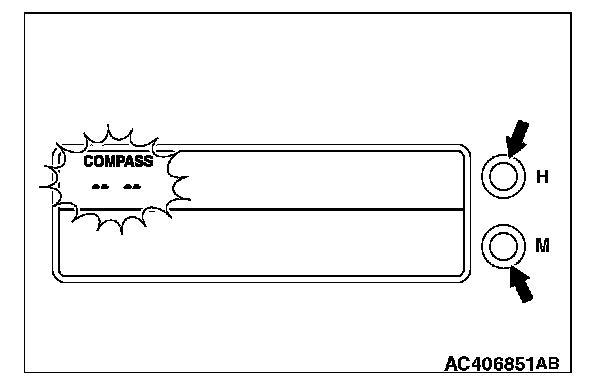

3. Press and hold the "H" switch and "M" switch until "-- --" appears in the display.
4. Release the switch to enter the calibration mode.

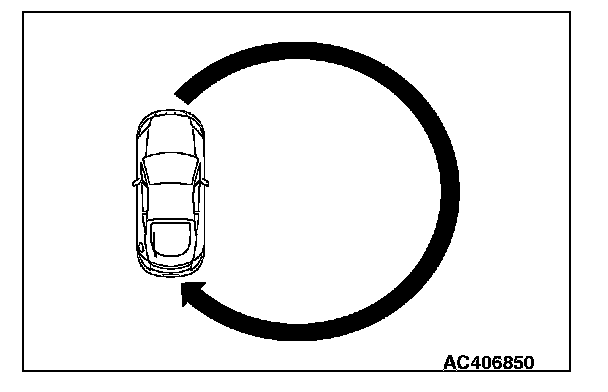

5. Drive very slowly in a circle until "-- --" disappears.
