Adjust For Compass Variance

ADJUST FOR COMPASS VARIANCE

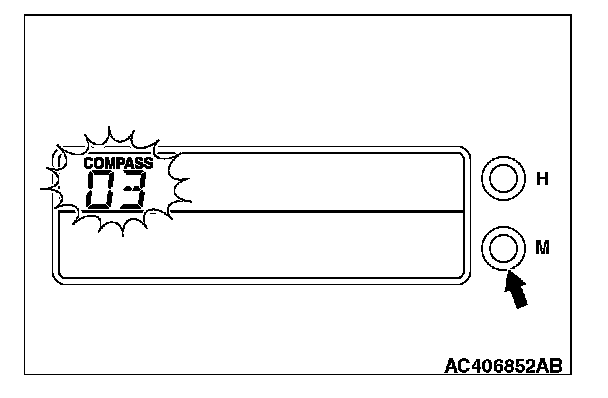

1. With the compass displayed, keep pressing "M" switch for two second or more. The current zone number will appear upon release.

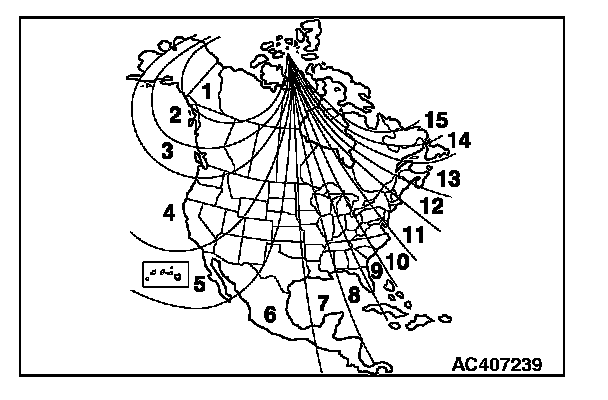

2. Find current location and variance zone number on the zone map.

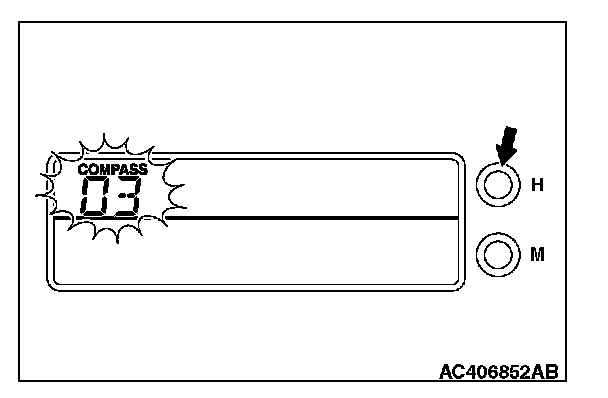

3. Press the "H" switch repeatedly until the correct zone number is displayed.




4. Pressing the "M" switch will exit zone entry mode. This area code number should remain in the battery off. If the compass deviates from the correct indication soon after repeated adjustment, have the compass checked at refer to INSPECTION PROCEDURE 5.

NOTE: Do not install a ski rack, antenna, etc., which are attached to the vehicle by means of a magnet. They affect the operation of the compass.

NOTE: The compass may not indicate the correct compass direction when in the places shown below:.

- Tunnels
- Railroads
- Underpass/Overpass
- Transforming station
- Large metal structures
- Area over the subway

NOTE: The compass returns to the correct compass direction vehicle moves to an area where the geomagnetism is stabilized.
