Pinout Values and Diagnostic Parameters

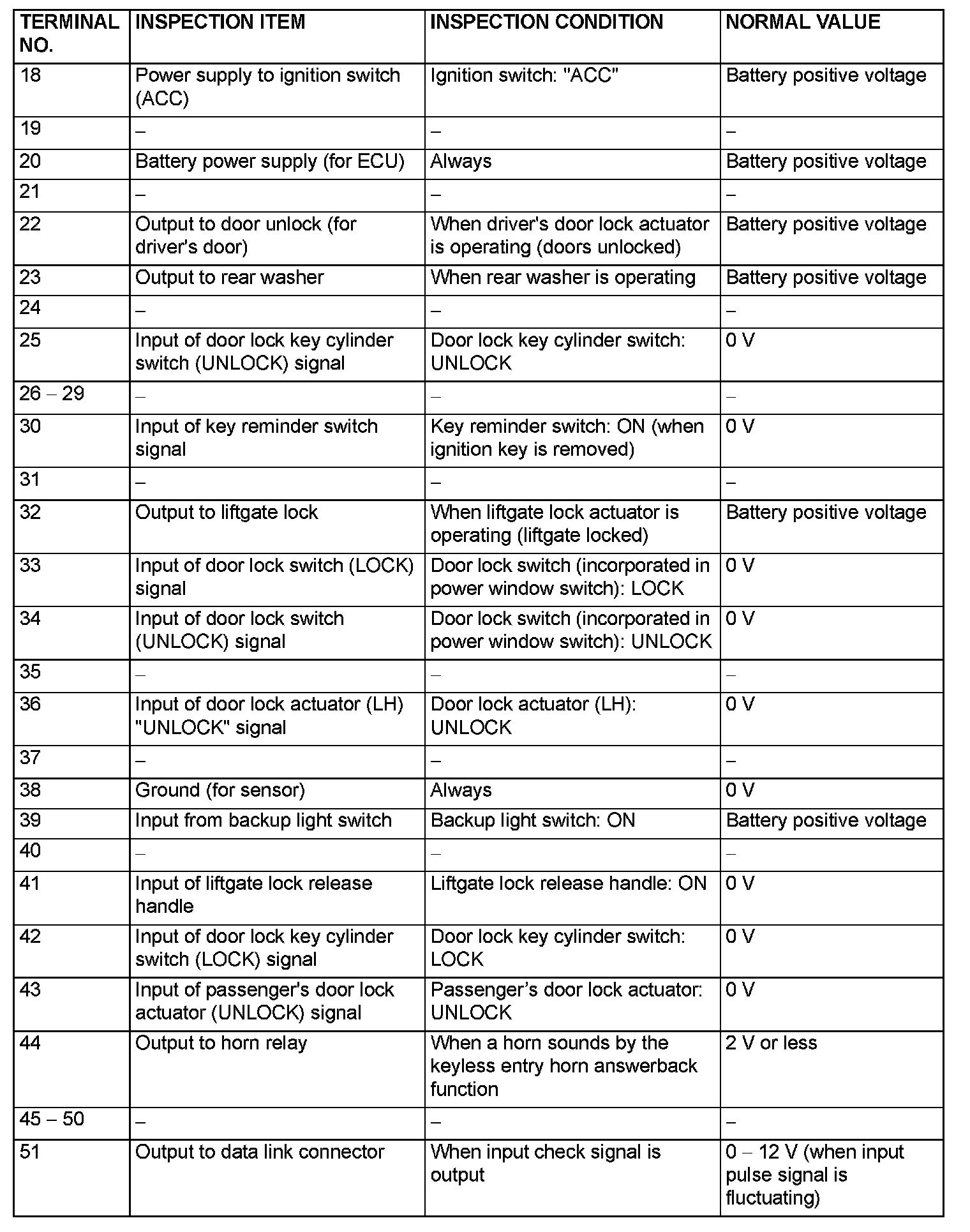

Check At ETACS-ECU (Immobilizer-ECU) Terminal Part 1:

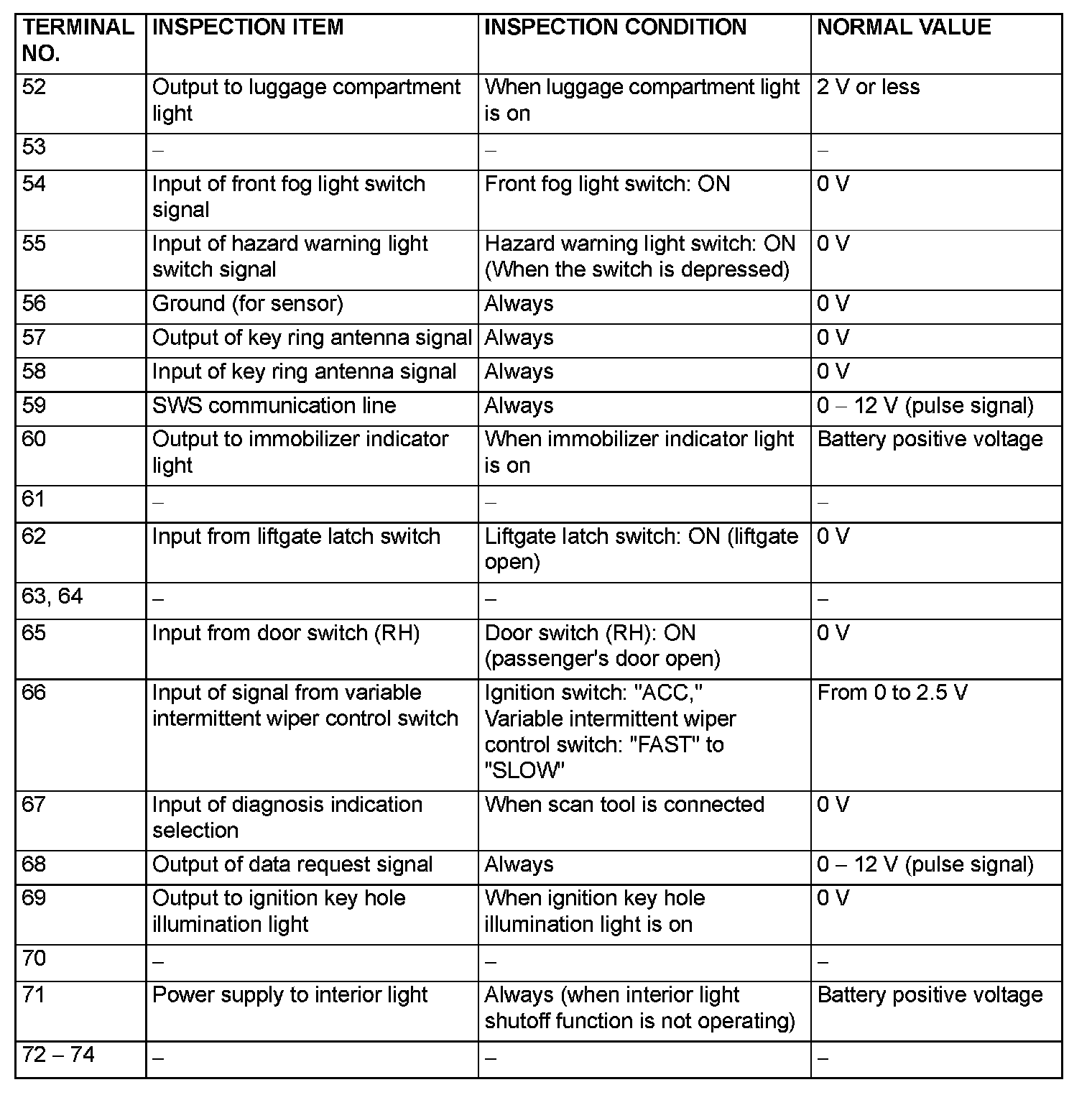

Check At ETACS-ECU (Immobilizer-ECU) Terminal Part 2:



Check At ETACS-ECU (Immobilizer-ECU) Terminal Part 3:
