Part 2
DTC P1770 (P0705): Transmission Range Switch System (Open Circuit) (Continued)STEP 31. Check harness for short circuit to ground between PCM connector B-19 terminal 39 and shift switch assembly connector C-17 terminal 6.

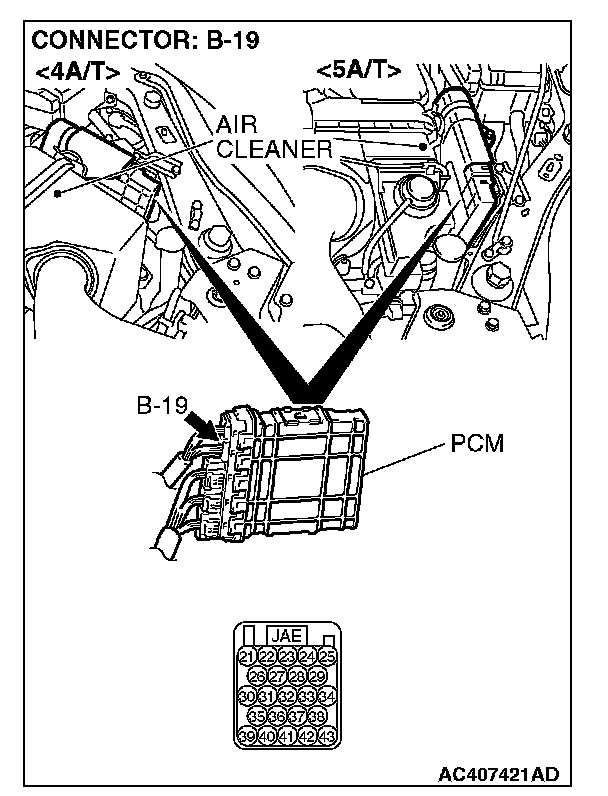

Connector: B-19:

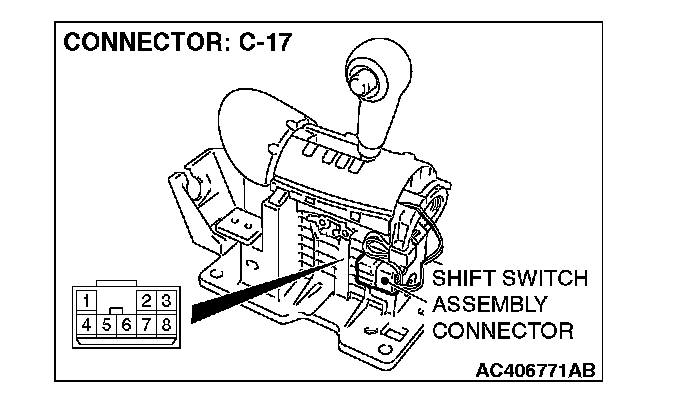

Connector: C-17:
Q:Is the harness wire in good condition?
YES Go to Step 5.
NO Repair or replace the harness wire.
