Anti-Lock Braking System (ABS)

DIAGNOSTIC TROUBLE CODE CHART

CAUTION: During diagnosis, a DTC code associated with another system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTC code(s) are set, erase them all.

Follow the inspection chart that is appropriate for the diagnostic trouble code.

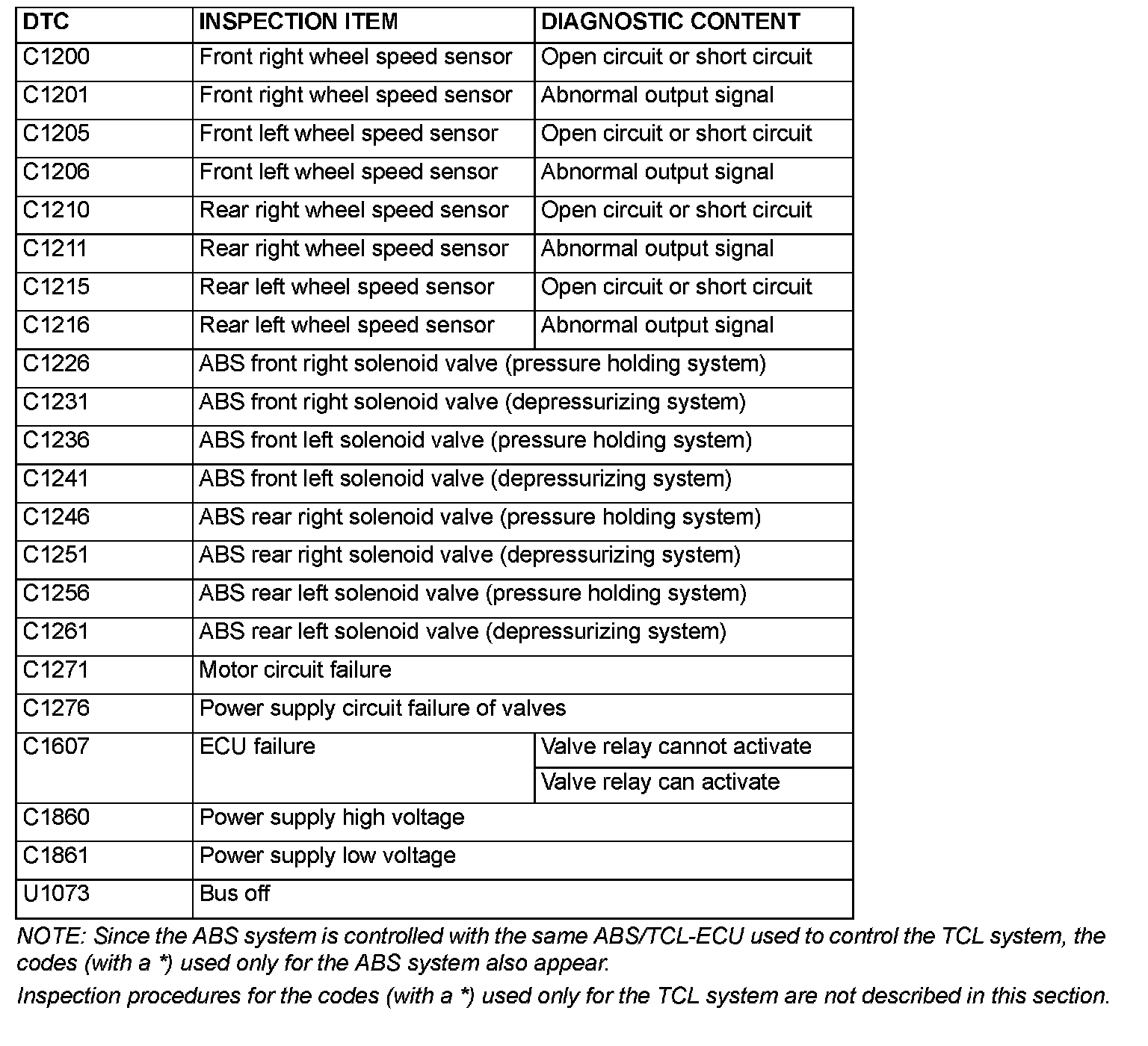

C1200-C1861/U1073:

NOTE: Since the ABS system is controlled with the same ABS/TCL-ECU used to control the TCL system, the codes (with a *) used only for the ABS system also appear.

Inspection procedures for the codes (with a *) used only for the TCL system are not described in this section.
