Removal and Installation

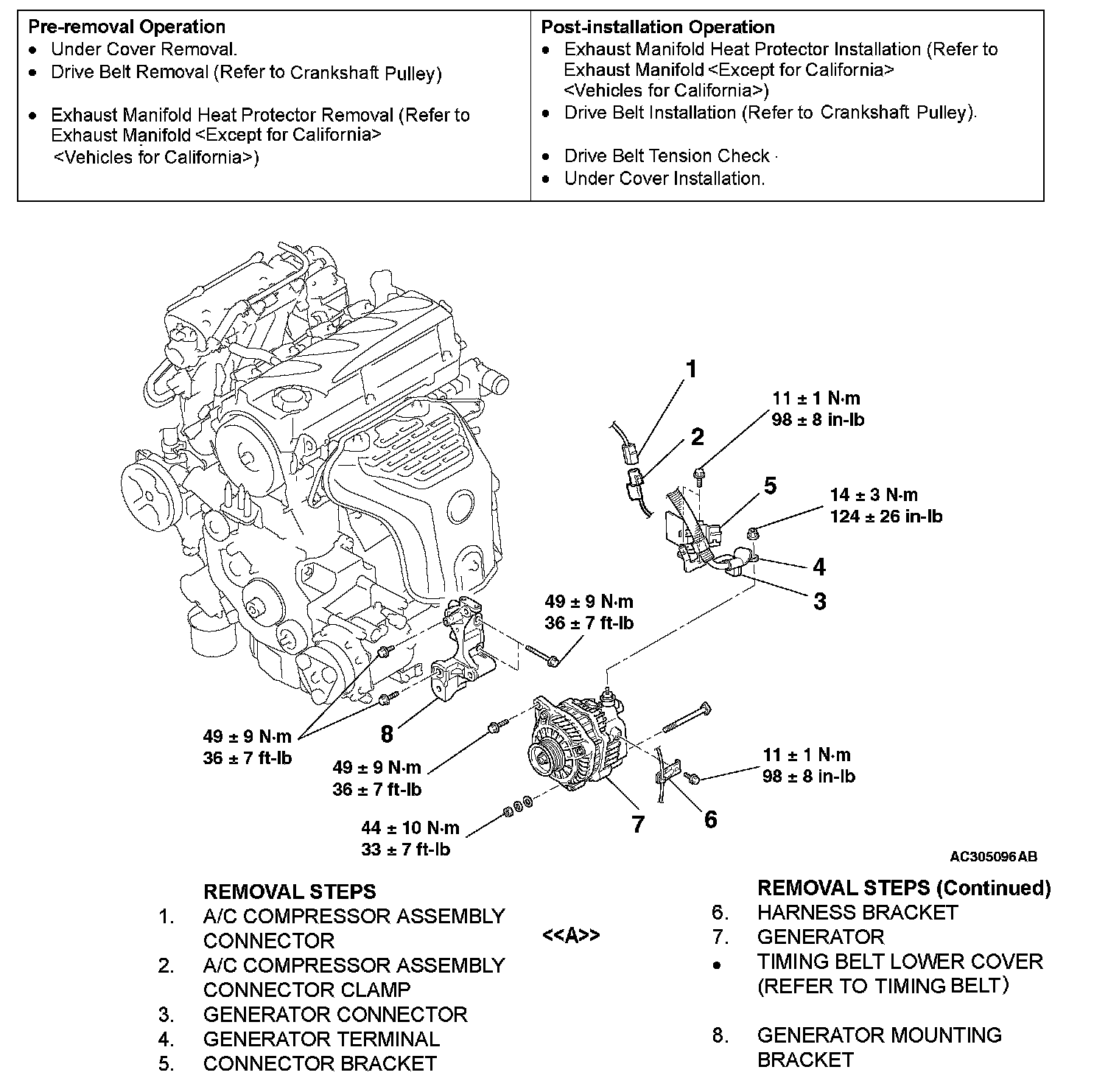

GENERATOR ASSEMBLY

Removal And Installation <2.4L Engine>:




REMOVAL AND INSTALLATION <2.4L ENGINE>

REMOVAL SERVICE POINT

<> GENERATOR REMOVAL
Remove the generator from above the vehicle.
