EGR Valve Gasket Installation
EGR Valve Gasket Installation
REMOVAL SERVICE POINT
>>A<< EGR VALVE GASKET INSTALLATION

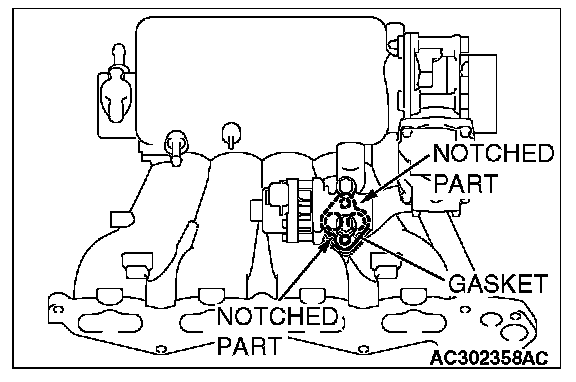

Install the EGR valve gasket as shown in the illustration.
