Home >> Mitsubishi >> 2006 >> Lancer L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Front Crankshaft Seal

Front Crankshaft Seal

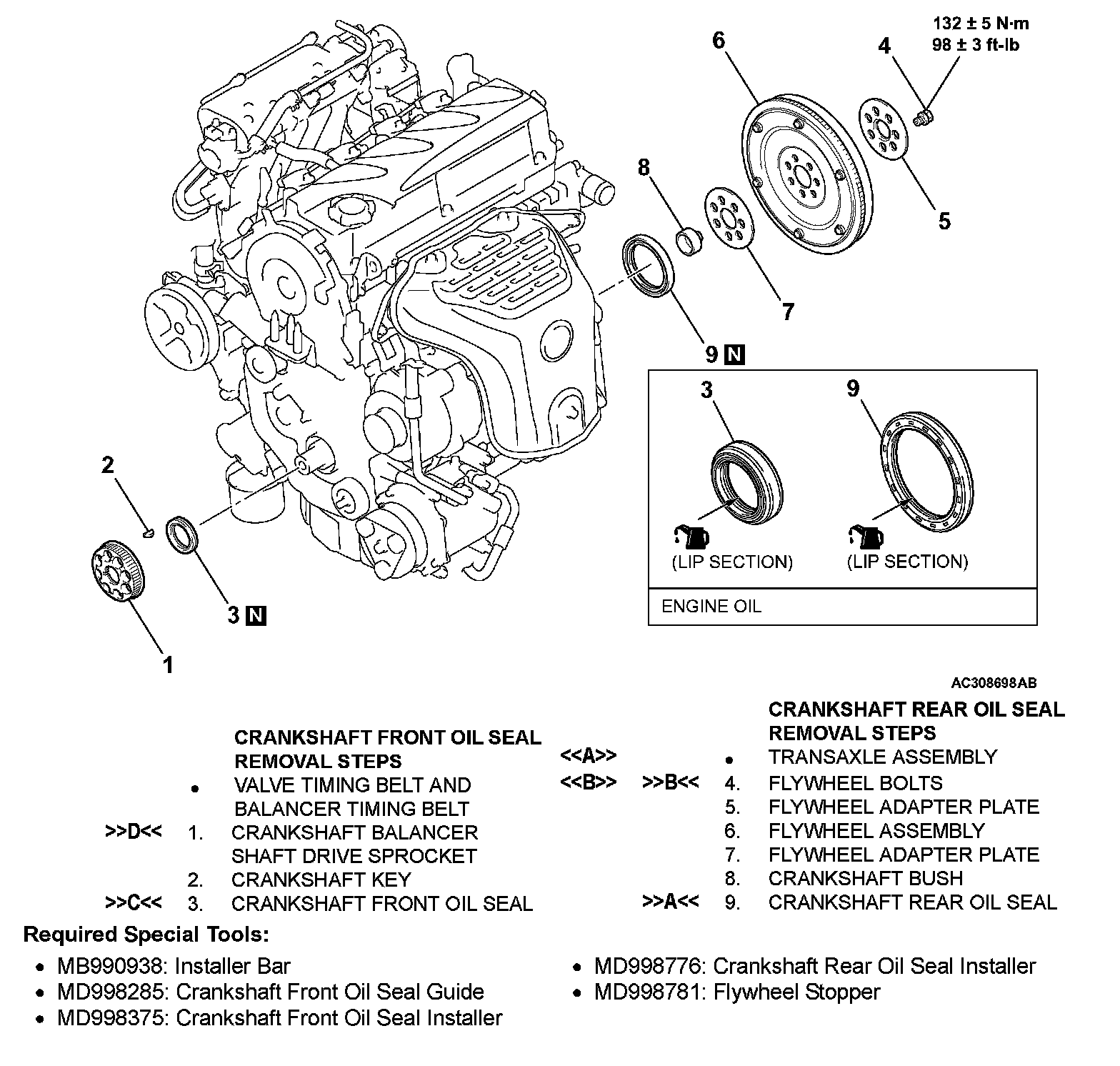

CRANKSHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS





[M/T]





[A/T]
