Overhaul

DISASSEMBLY AND ASSEMBLY

Disassembly Steps 1-6:

DISASSEMBLY SERVICE POINTS

[[A]] RIVET REMOVAL

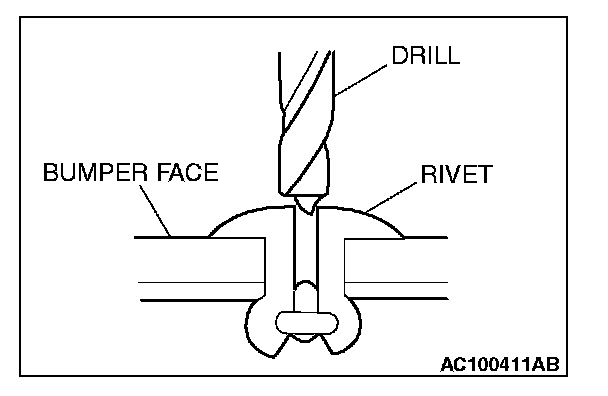

Use a drill [4.0 mm (0.16 inch)] to make a hole in the rivet to break it, and then remove the rivet.

ASSEMBLY SERVICE POINT

]]A[[ RIVET INSTALLATION






1. Insert the rivet into the rear bumper face and rear bumper side plate.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in position.
