Wiper and Washer Systems: Service and Repair
WINDSHIELD WIPER AND WASHERREMOVAL AND INSTALLATION

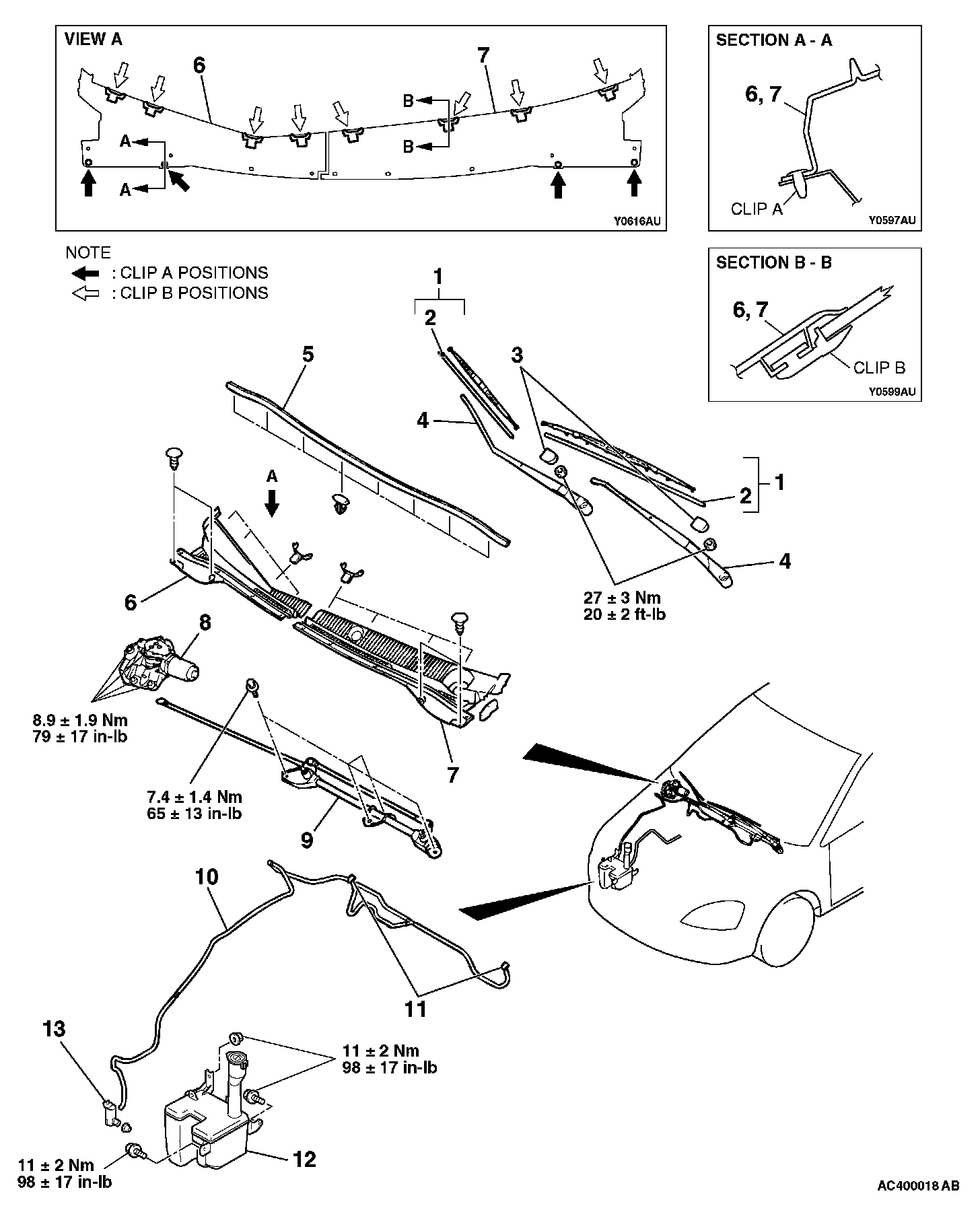

Removal Steps 1-13 (Part 1):

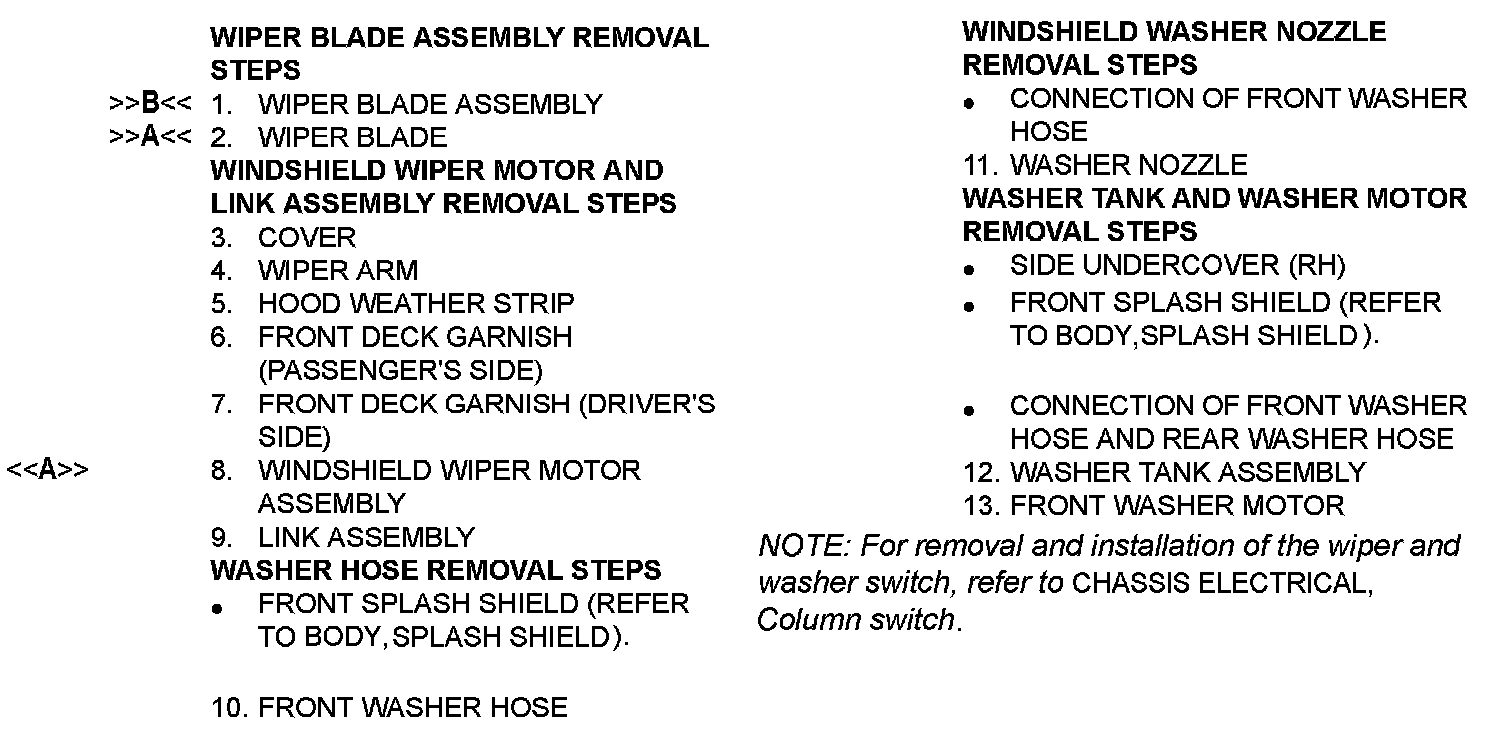

Removal Steps 1-13 (Part 2):
REMOVAL SERVICE POINT
[[A]] WINDSHIELD WIPER MOTOR ASSEMBLY REMOVAL
1. Remove the windshield wiper motor assembly mounting bolt.
CAUTION: Be careful not to damage the windshield glass when the windshield wiper motor assembly is removed.

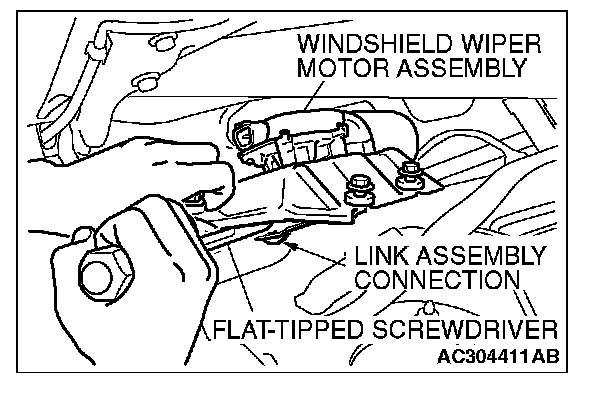

2. Use a flat-tipped screwdriver to disengage the link between the windshield wiper motor assembly and the link assembly to remove the windshield wiper motor assembly.
INSTALLATION SERVICE POINTS
]]A[[ WIPER BLADE INSTALLATION
CAUTION: The driver's side wiper blade is not warped.
When installing the passenger's wiper blade, check that the backing inside the wiper blade is warped toward the wiper arm.
]]B[[ WIPER BLADE ASSEMBLY INSTALLATION

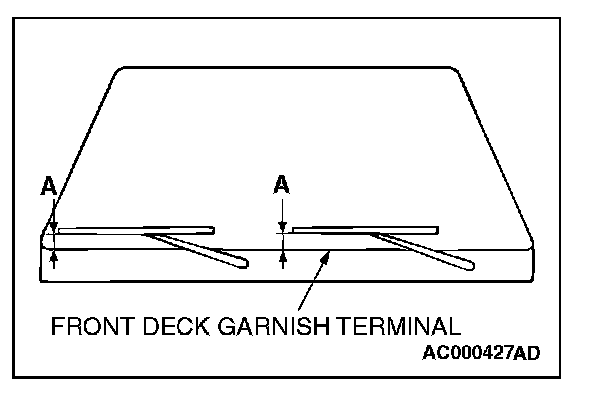

Install the wiper blade at the specified position (standard value).
Standard value (A): 34 ± 5 mm (1.3 ± 0.20 inches)
