Transmission Fluid Changing

Change oil

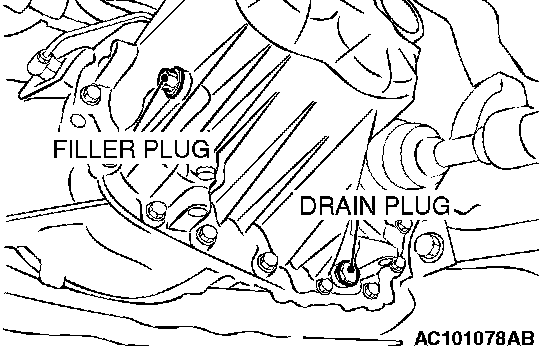

1. Remove the filler plug.
2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
4. Fill with Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification GL-4 until the level comes to the lower portion of filler plug hole.
Quantity: 2.2 dm3 (2.3 quarts)
5. Tighten the filler plug to the specified torque.
Tightening torque: 32 ± 2 Nm (24 ± 1 ft. lbs.)
