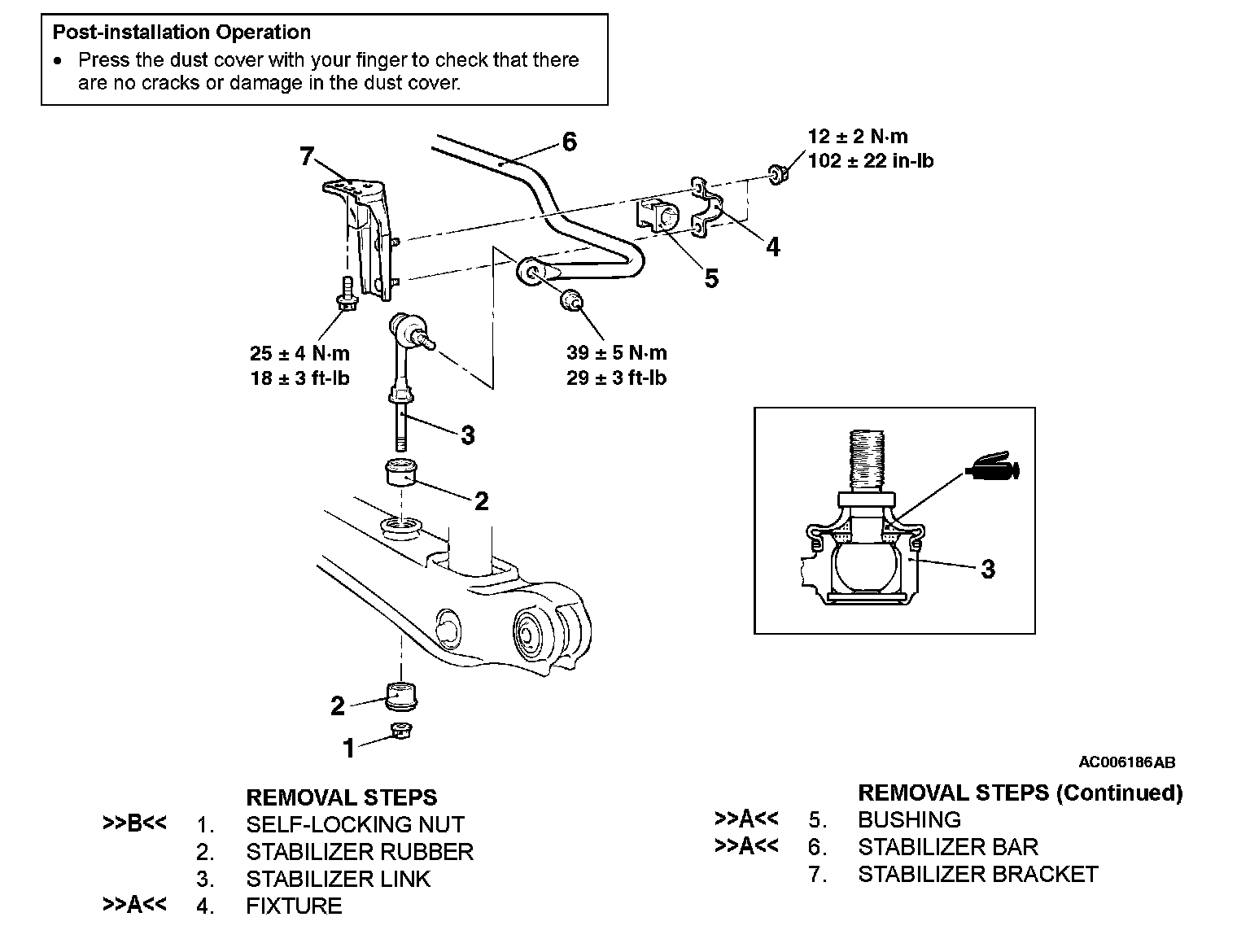

Removal and Installation

REMOVAL AND INSTALLATION
INSTALLATION SERVICE POINT
]]A[[ STABILIZER BAR/BUSHING/FIXTURE INSTALLATION





Align the identification color on the left side of the stabilizer bar with the right end of the bushing.

]]B[[ SELF-LOCKING NUT INSTALLATION

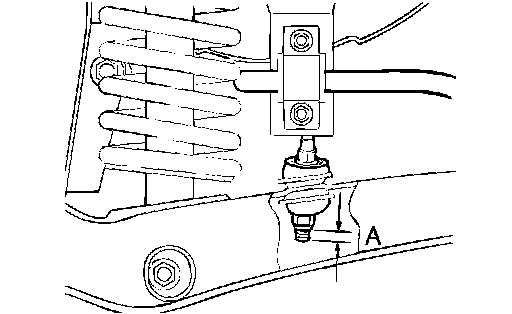

Tighten the self-locking nut so that the amount of protrusion of the end of the stabilizer link bolt is at the standard value.
Standard value (A): 6 - 8 mm (0.24 - 0.31 inch)
