Overhaul

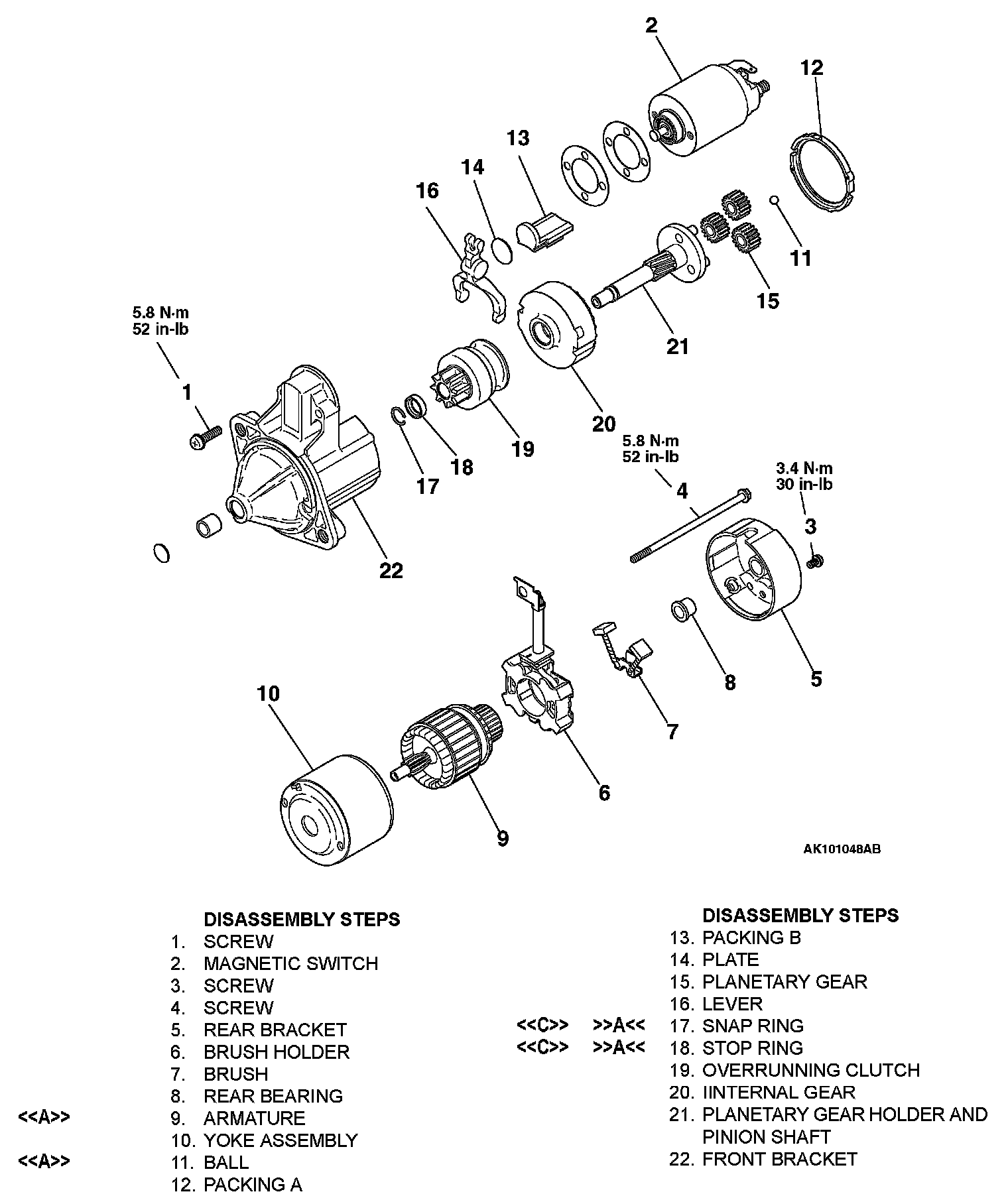

STARTER MOTOR ASSEMBLY
DISASSEMBLY AND ASSEMBLY <2.0L ENGINE>
DISASSEMBLY SERVICE POINTS
<> ARMATURE AND BALL REMOVAL
CAUTION: When removing the armature, take care not to lose the ball (which is used as a bearing) in the armature end.
<> MAGNETIC SWITCH REMOVAL

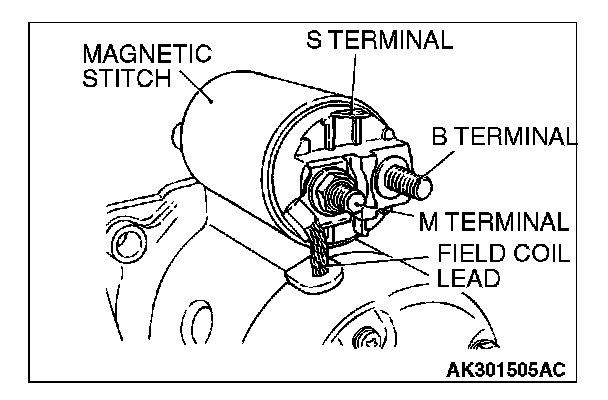

CAUTION: Do not clamp the yoke assembly with a vise. Disconnect the lead from the M terminal of the magnetic switch.
<

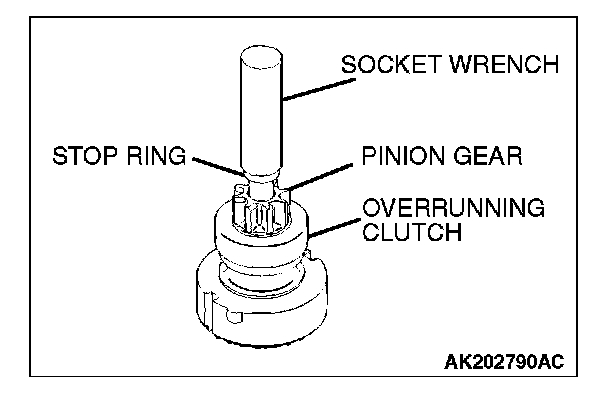

1. Press a long socket wrench to the stop ring. Then tap the socket wrench to remove the stop ring to the pinion gear side.

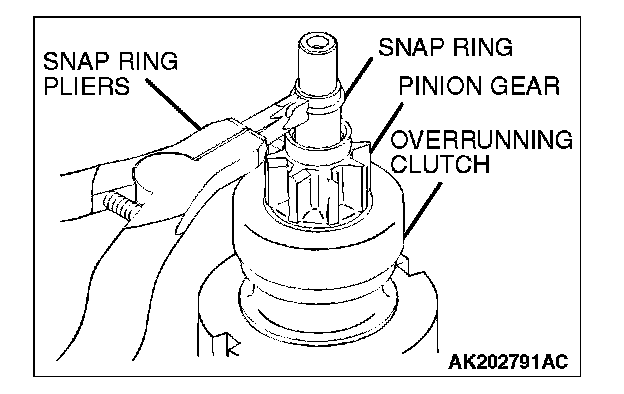

2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.
