Removal and Installation

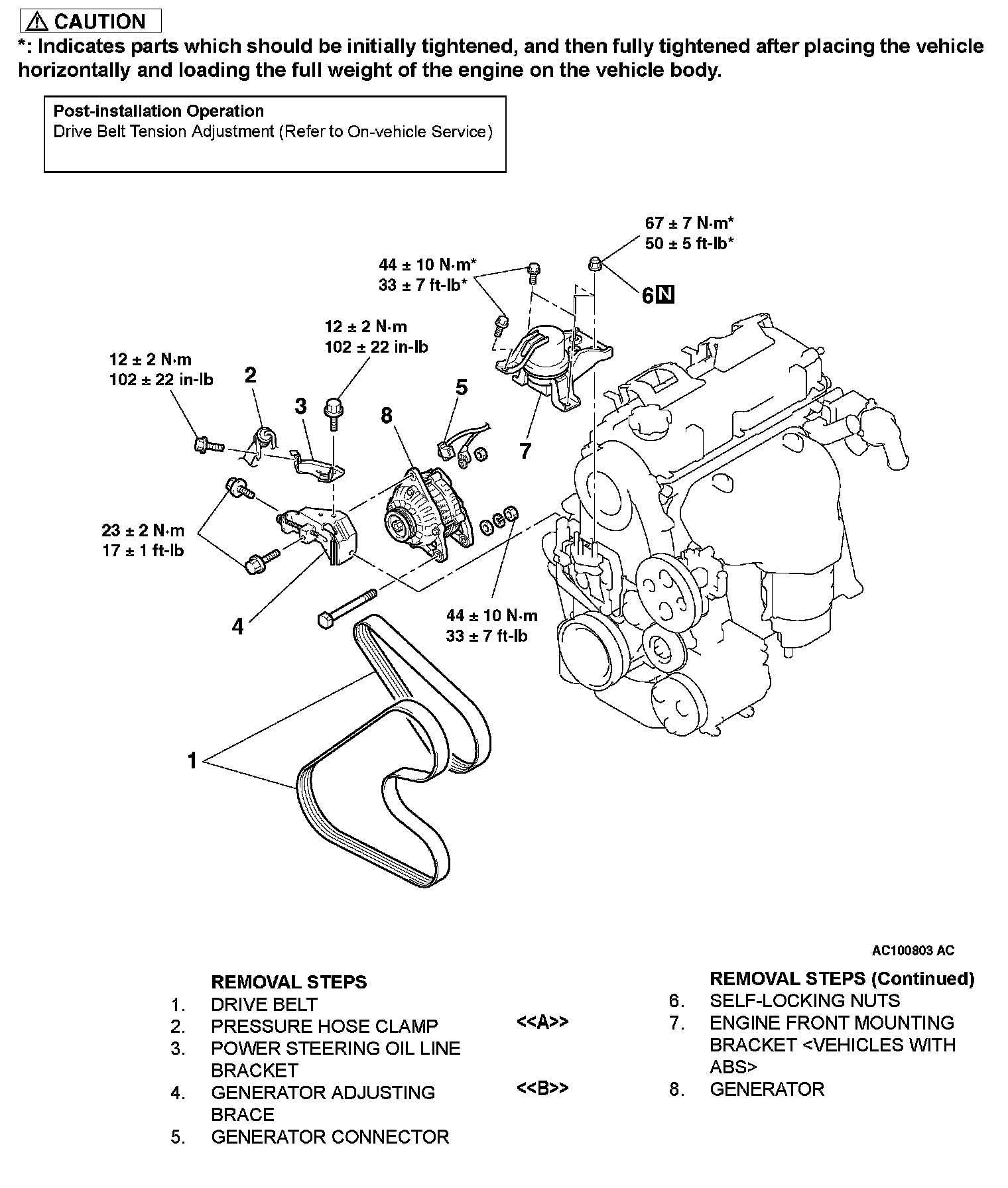

GENERATOR ASSEMBLY
REMOVAL AND INSTALLATION <2.0L ENGINE>
REMOVAL SERVICE POINT
<> ENGINE FRONT MOUNTING BRACKET
1. Remove all the power steering hose clamp mounting bolts.
2. Jack up and support the engine assembly, and remove the engine front mounting bracket.
3. Tilt the engine to remove the generator.
<> GENERATOR REMOVAL
Remove the generator from above the vehicle.
