Oxygen Sensor: Service and Repair

REMOVAL AND INSTALLATION

Refer to Intake and Exhaust for the removal and installation of catalytic converter because it is integrated in the exhaust manifold and the front exhaust pipe.

- Exhaust manifold side
- Front exhaust pipe side

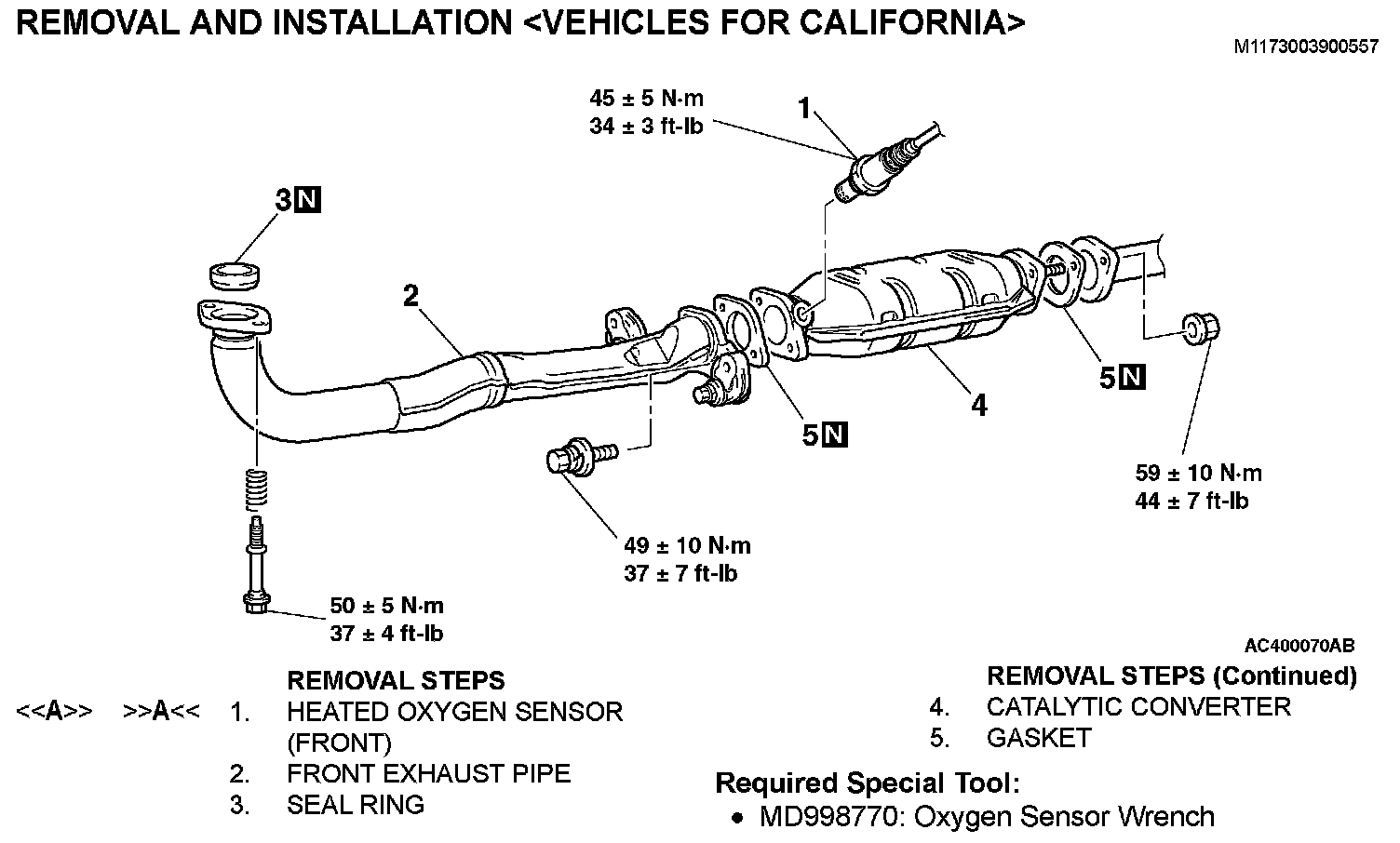

Removal Steps 1 To 5:

REMOVAL AND INSTALLATION




REMOVAL SERVICE POINT

<>HEATED OXYGEN SENSOR (FRONT) REMOVAL

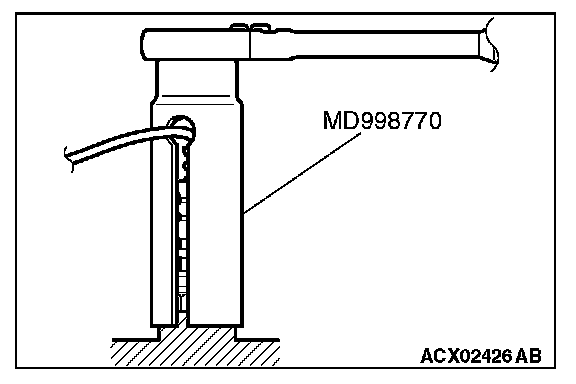

Use special tool MD998770 to remove the oxygen sensor.




INSTALLATION SERVICE POINT

>>A<< HEATED OXYGEN SENSOR (FRONT) INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.
