Sensor Resistance Check

FUEL LEVEL SENSOR RESISTANCE

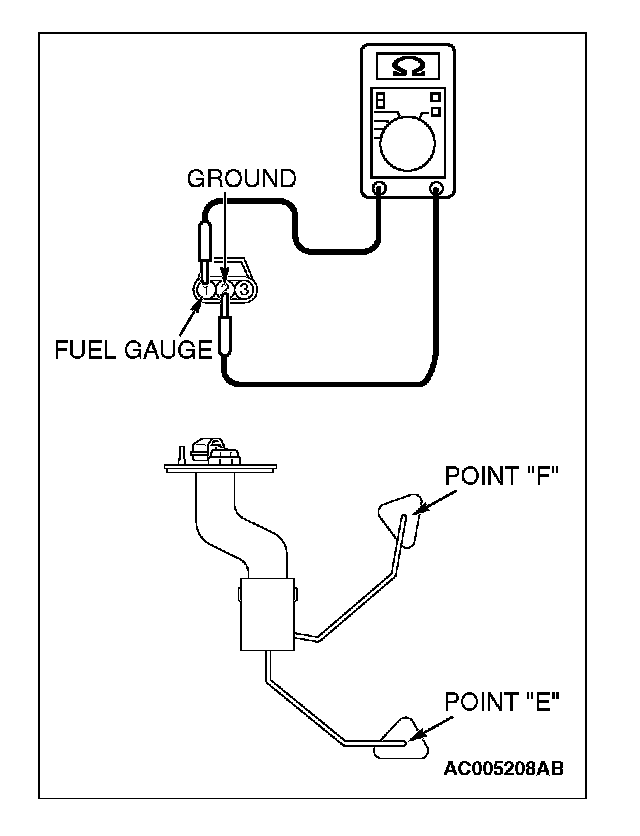

1. Check that resistance value between terminals 2 and 1 is at the standard value when the fuel level sensor float is between point "F" (highest) and point "E" (lowest).

Standard value:
- Point "F": 3 ± 0.8 ohm
- Point "E": 110 ± 2.5 ohm

2. Check that resistance value changes smoothly when the float moves slowly between point "F" (highest) and point "E" (lowest).
3. If all checks are correct, go to fuel level sensor float height check. If any check is not correct, replace the fuel level sensor.
