Disassembly and Assembly

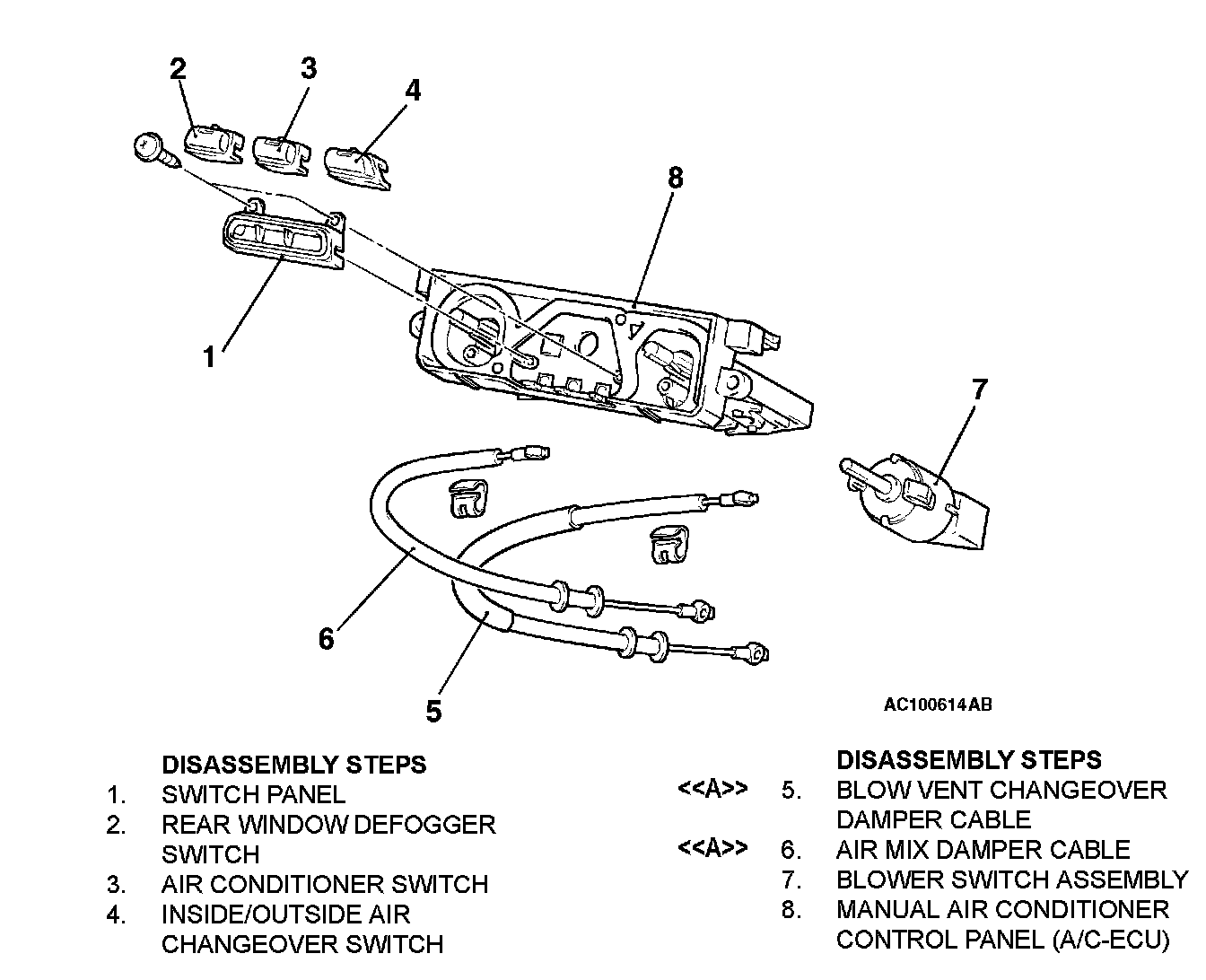

DISASSEMBLY AND ASSEMBLY

Disassembly And Assembly:






DISASSEMBLY SERVICE POINT




<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DAMPER CABLE REMOVAL

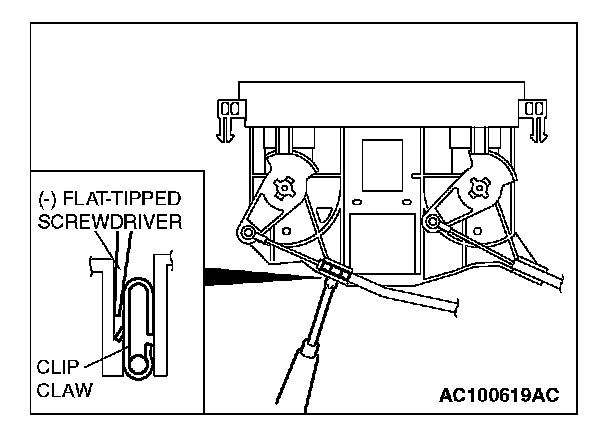

Insert a flat-tipped screwdriver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables.
