Home >> Mitsubishi >> 2006 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> ABS Main Relay >> Testing and Inspection

ABS Main Relay: Testing and Inspection

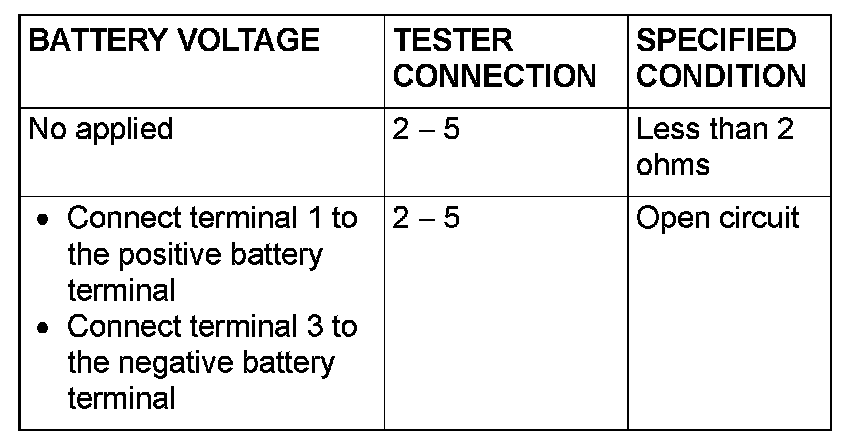

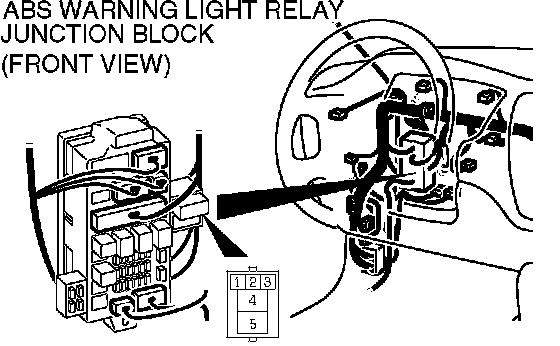

ABS WARNING LIGHT RELAY CHECK
