Throttle Cable/Linkage: Service and Repair

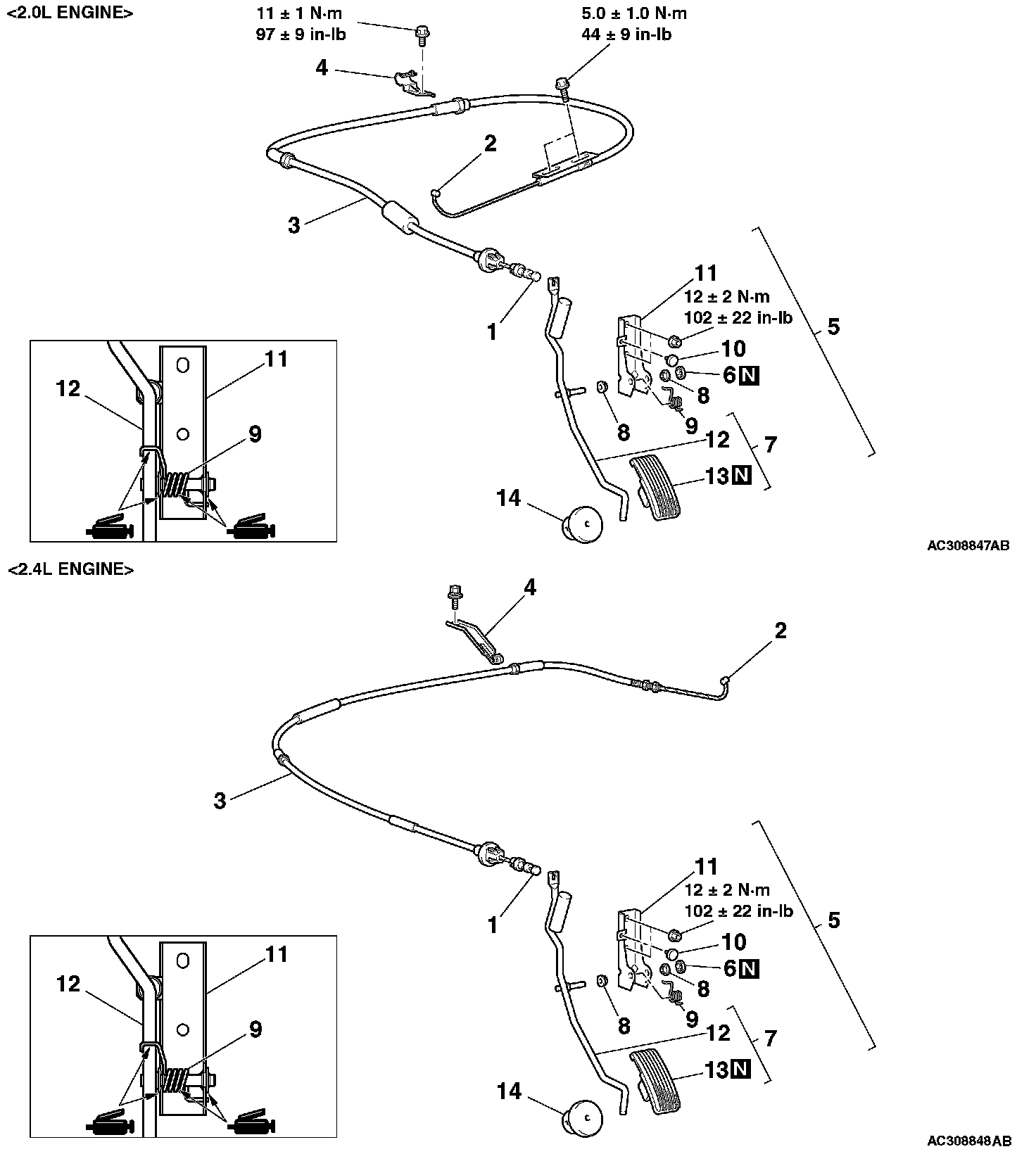

ACCELERATOR CABLE AND PEDAL REMOVAL AND INSTALLATION

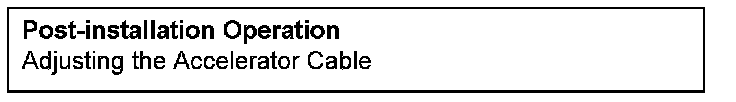

Post-installation Operation:

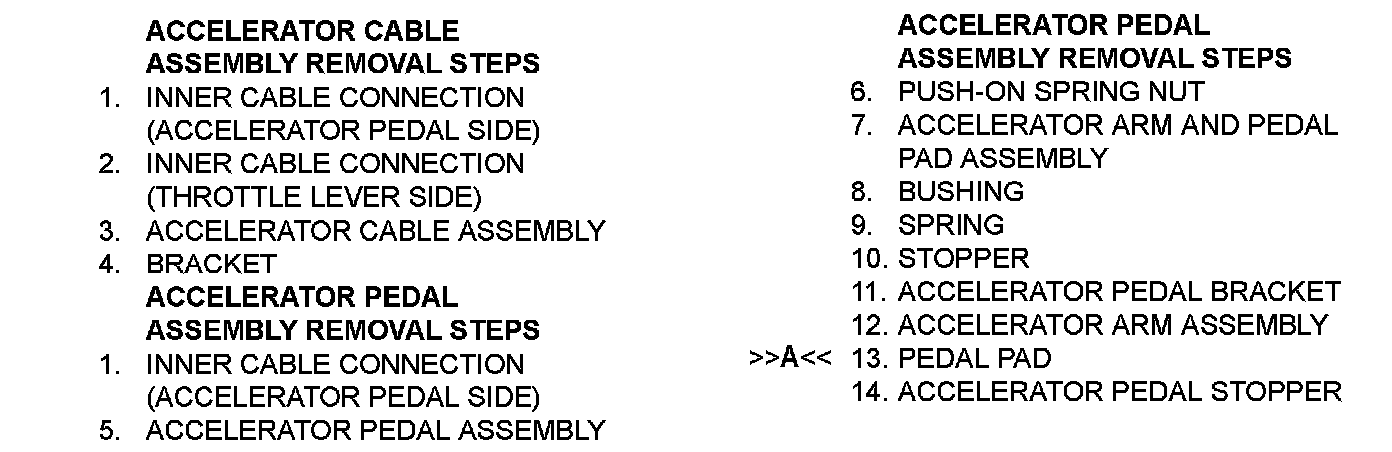

Removal Steps 1 To 14:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<< PEDAL PAD INSTALLATION
Warm the peg of the pedal pad with a dryer before installing the pad.

NOTE: If it is difficult to fit, apply soapy water to the peg lightly.
