Removal and Installation

THROTTLE BODY ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION: When the throttle body assembly replacement is performed, use scan tool MB991958 to initialize the learning value .

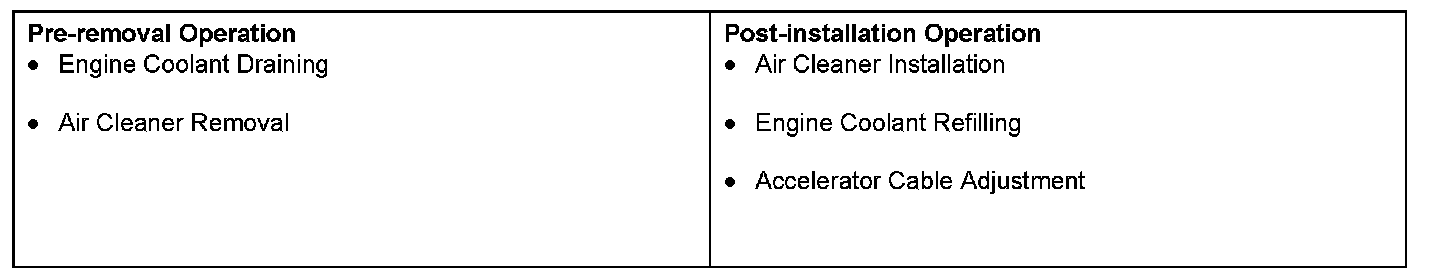

Pre-Removal And Post-Installation Operation:

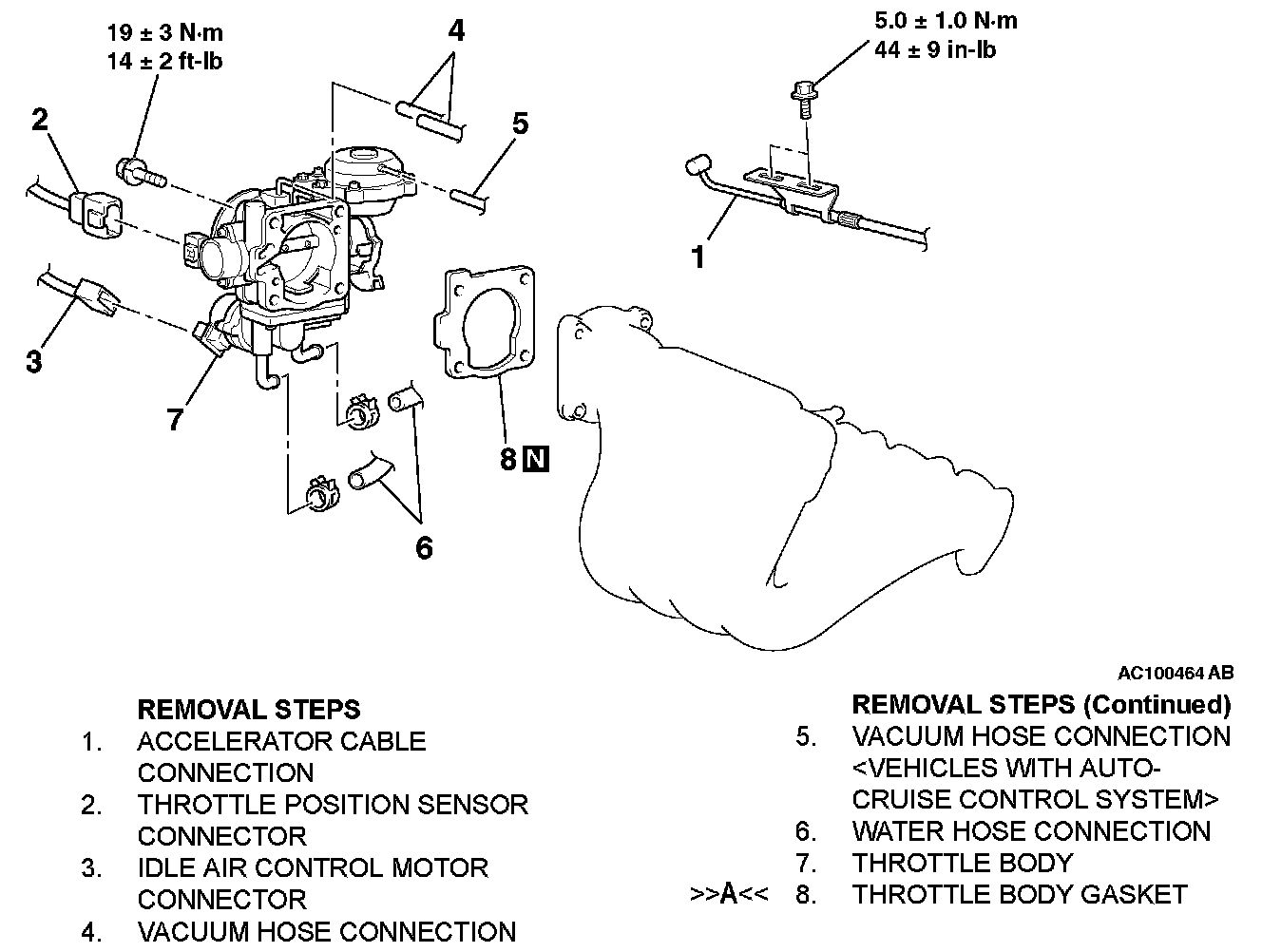

Removal Steps 1 - 8:

INSTALLATION SERVICE POINT

>>A<

CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

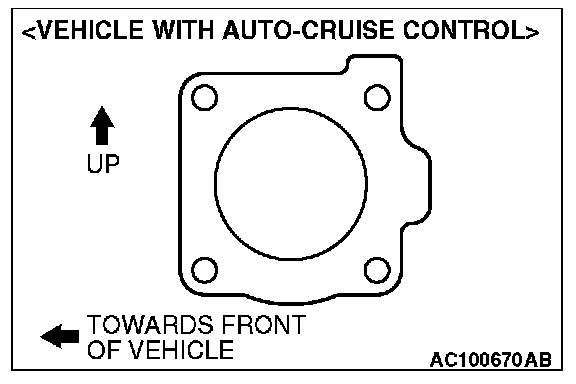

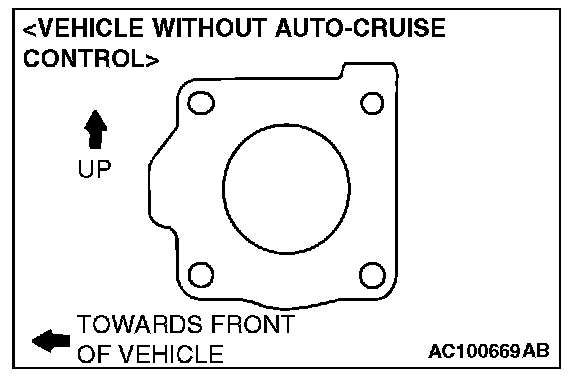

Install the throttle body gasket as shown in the illustration.
