Fuel Tank: Description and Operation

GENERAL DESCRIPTION

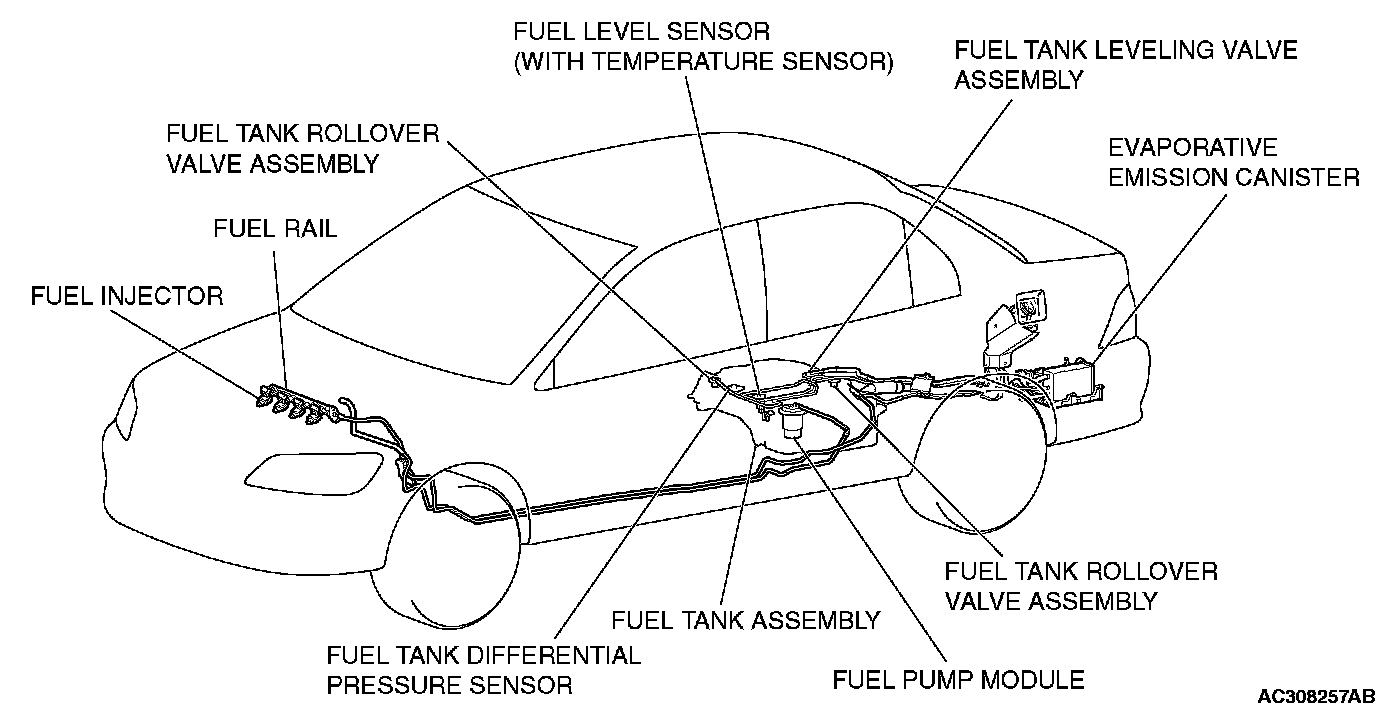

Construction Diagram:

- The fuel tank is located under the floor of the rear seats to provide increased protection and a more luggage space.
- A fuel tank rollover valve assembly has been adopted to prevent fuel from leaking out in case of a collision.
- A fuel pump module, including fuel pump, fuel filter and reservoir cup, has been adopted to lighten weight and improve serviceability.
