Disassembly and Assembly

FUEL PUMP MODULE DISASSEMBLY AND ASSEMBLY

NOTE: For removal and installation, refer to On-vehicle service - Fuel pump (module) replacement.

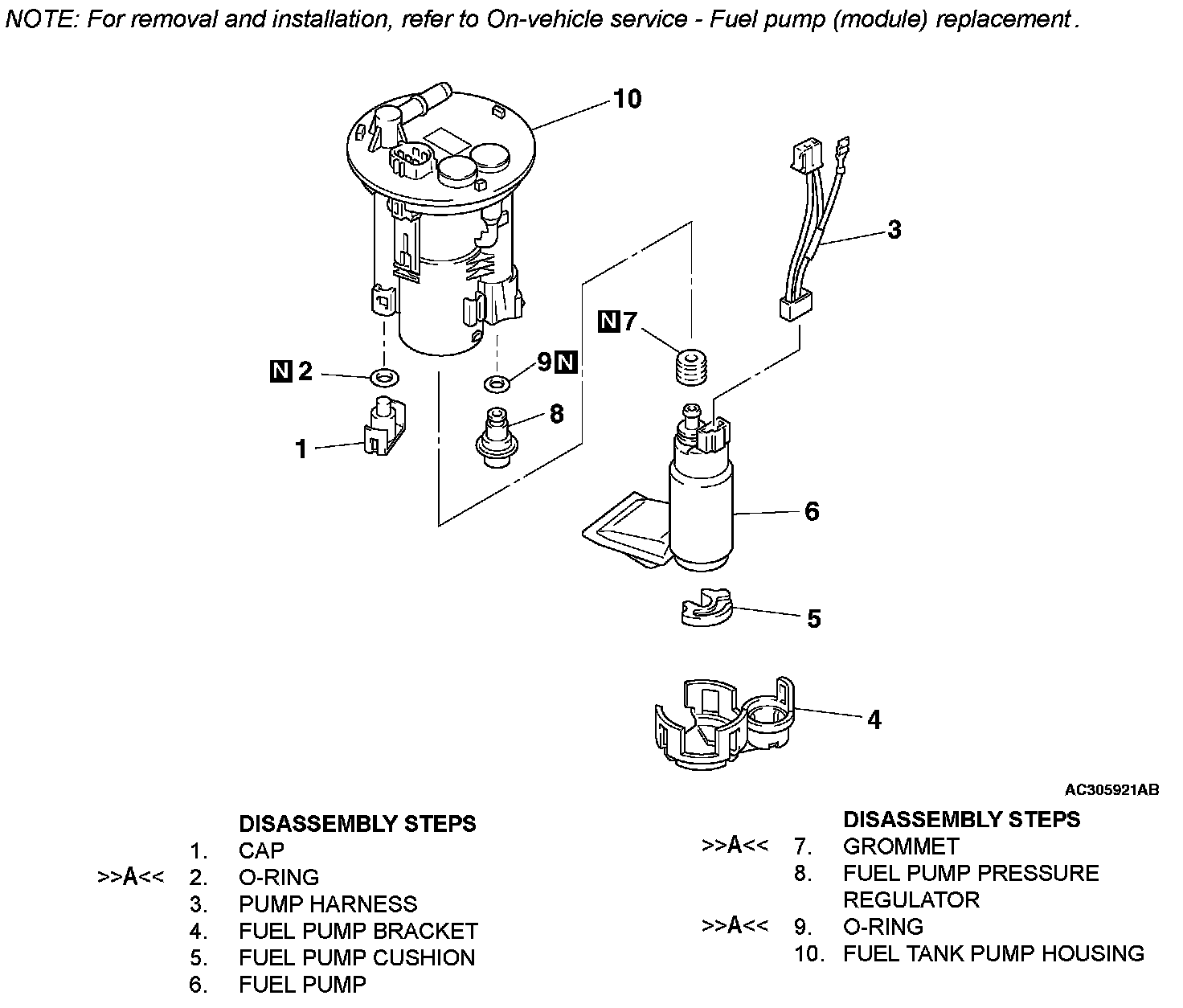

Removal Steps 1 To 10:

ASSEMBLY SERVICE POINT

>>A<< O-RING/GROMMET INSTALLATION
Apply gasoline on the grommet and the O-ring before mounting them to prevent damage or twisting.
