Exploded Views

FUEL TANK

REMOVAL AND INSTALLATION

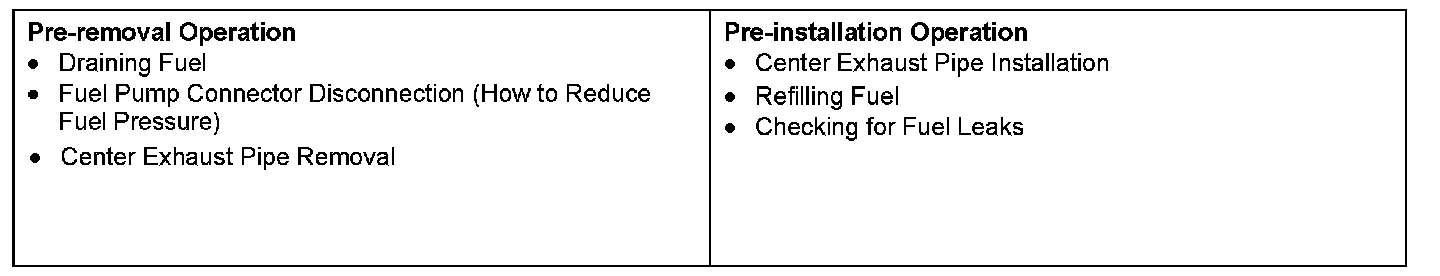

Pre-removal And Post-installation Operation:

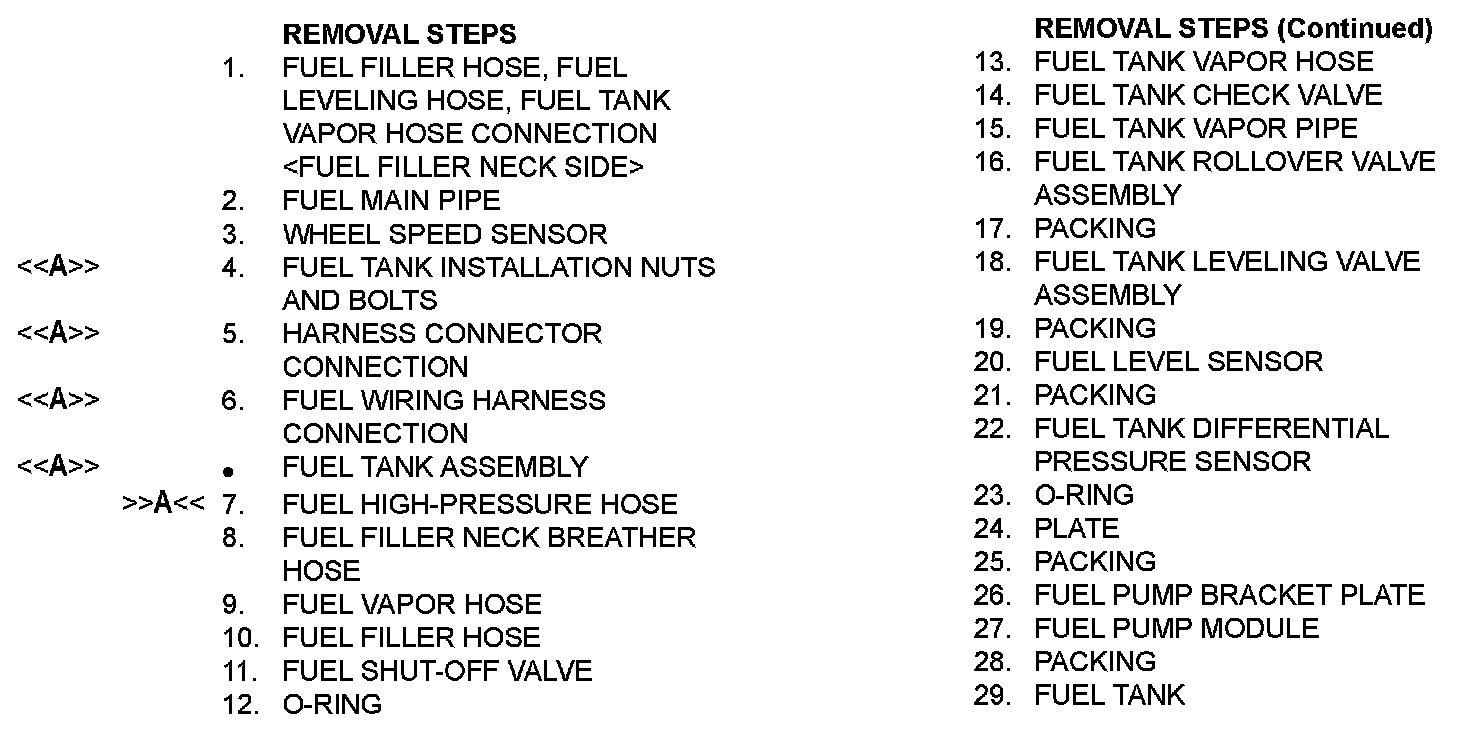

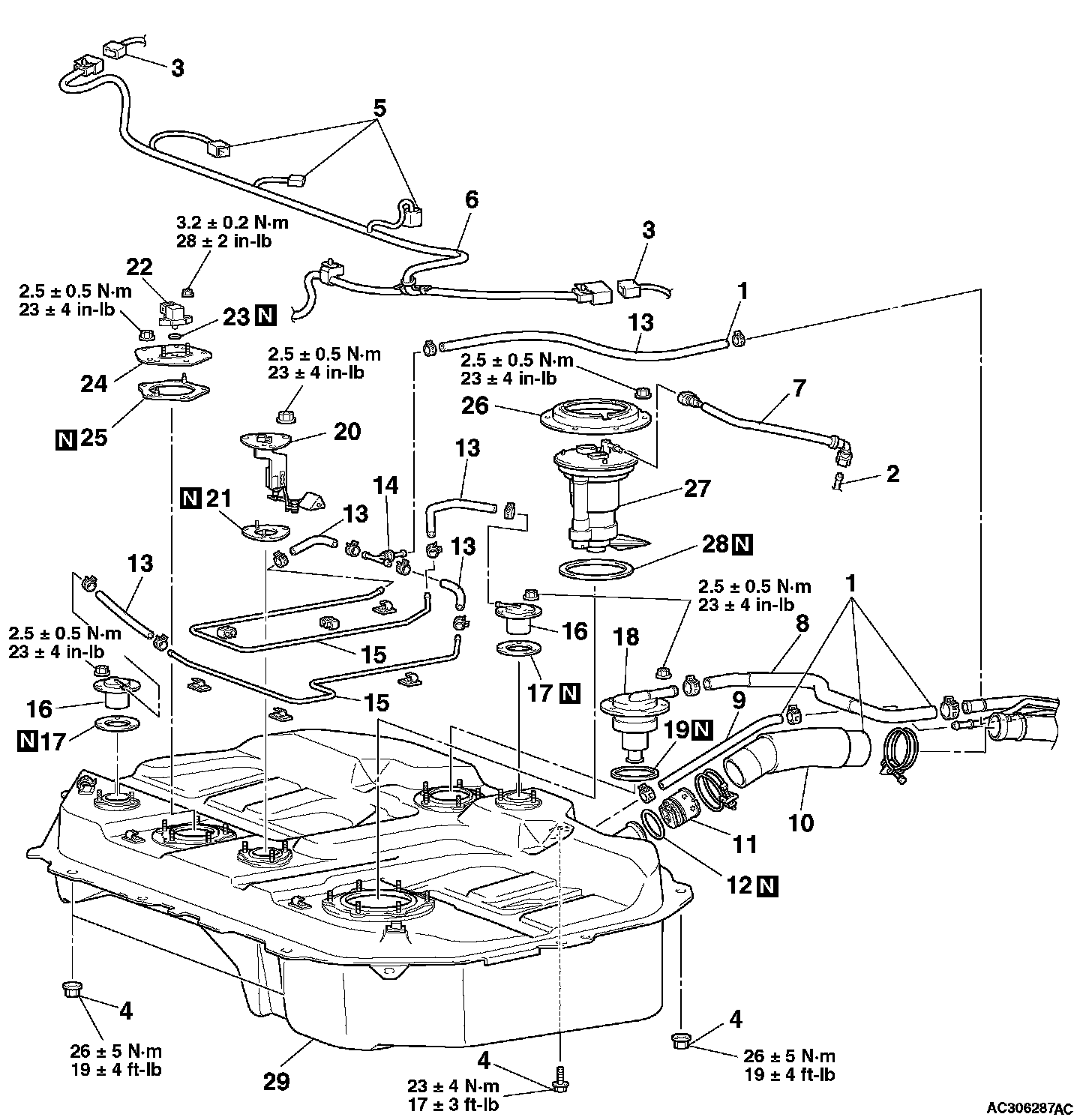

Removal Steps 1 To 29:

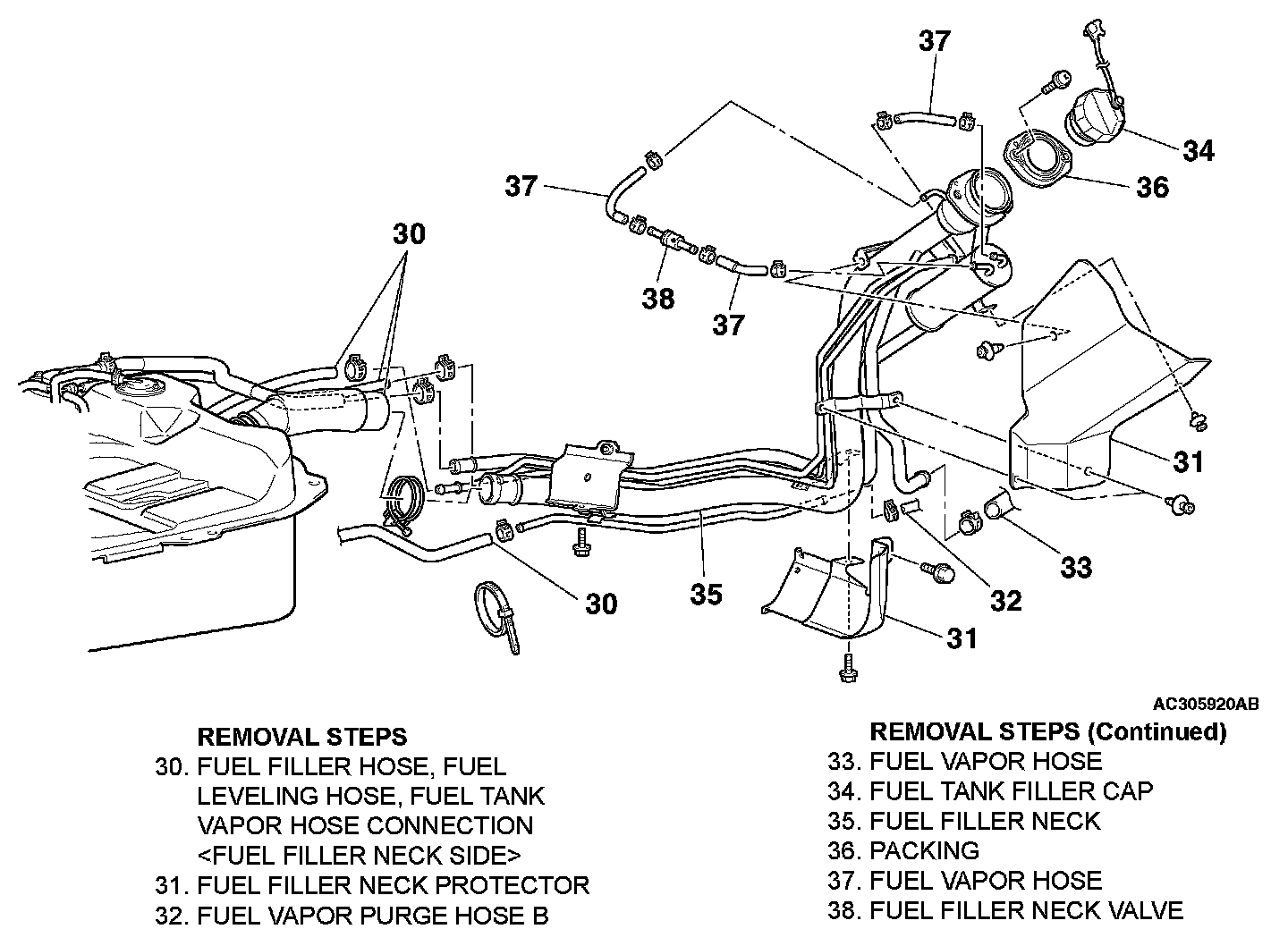

Removal Steps 30 To 38:

Required Special Tool:
- MB991348: Test Harness Set

REMOVAL SERVICE POINT

<> FUEL TANK INSTALLATION NUTS AND BOLTS/HARNESS CONNECTOR/FUEL WIRING HARNESS/FUEL TANK ASSEMBLY REMOVAL
Lower the fuel tank assembly halfway to disconnect the fuel tank harness connector and fuel wiring harness.

INSTALLATION SERVICE POINT

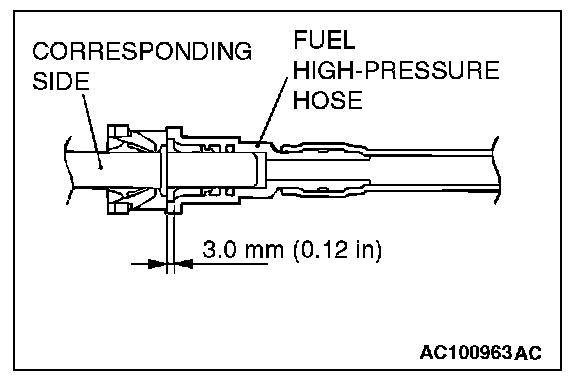

>>A<< FUEL HIGH-PRESSURE HOSE INSTALLATION

CAUTION: After connecting the quick action joint of the fuel high-pressure hose, pull the joint lightly away from the quick action joint to confirm that it is secure. In addition, confirm that there is a play of approximately 3.0 mm (0.12 inch) at the joint.
