Inspection Procedure 27

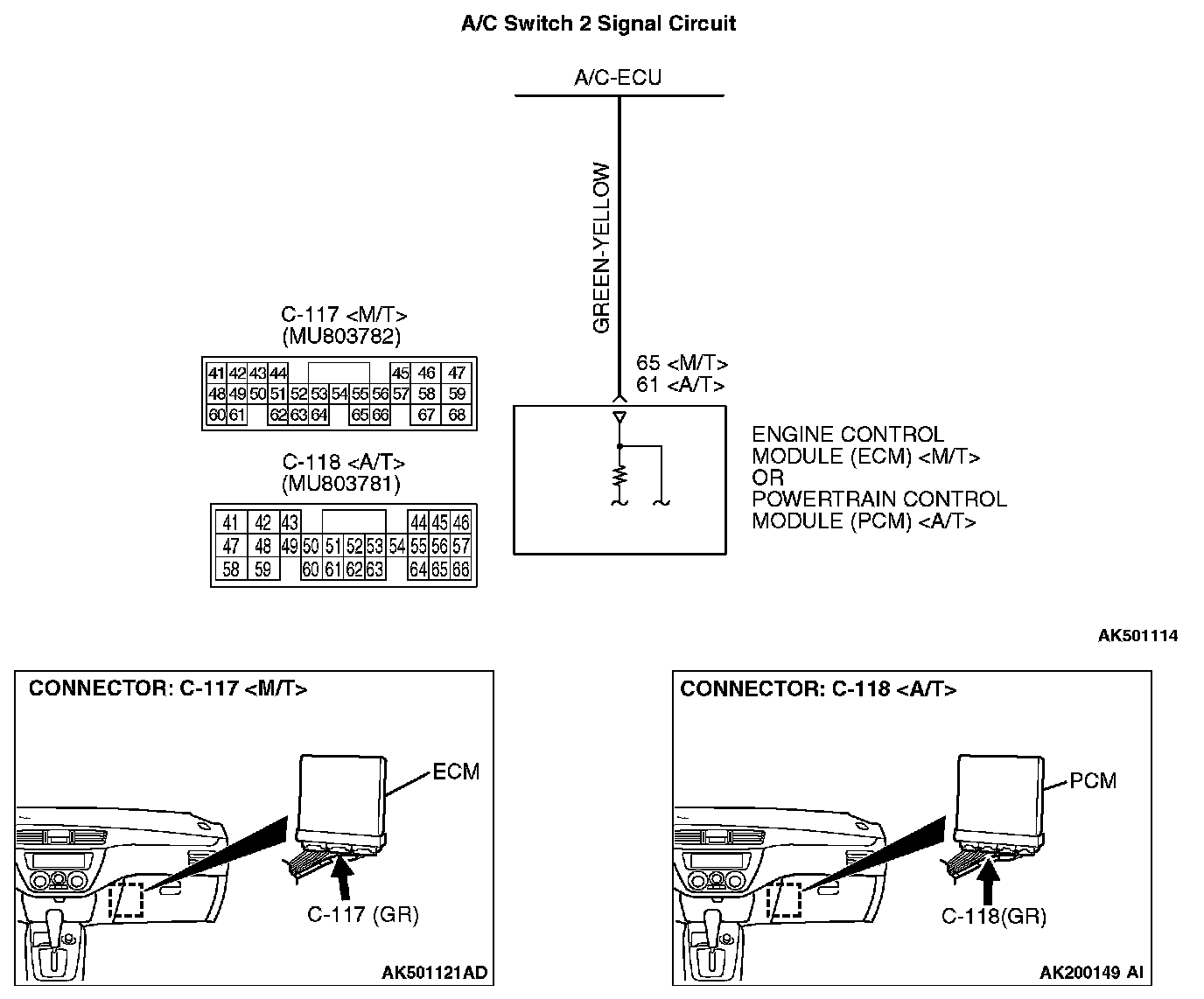

INSPECTION PROCEDURE 27: Incorrect Idle Speed when the A/C Is Operating (A/C Switch 2 Signal)A/C Switch 2 Signal Circuit:
CIRCUIT OPERATION
- The ECM
- The A/C-ECU detects how the air conditioning is applying load to the engine, and converts the information to a voltage signal (High voltage = low load, Low voltage = high load). This voltage signal is called "A/C switch 2 signal". The ECM
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are: )
- Malfunction of the A/C control system.
- Open or shorted circuit, or improper connector contact.
- ECM
DIAGNOSIS

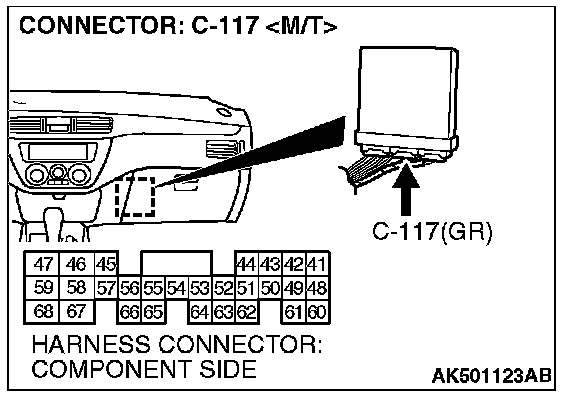

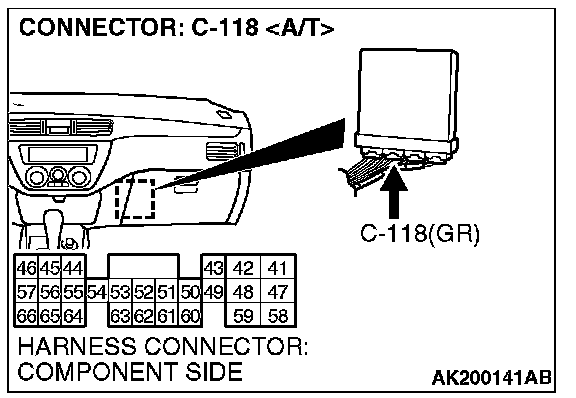

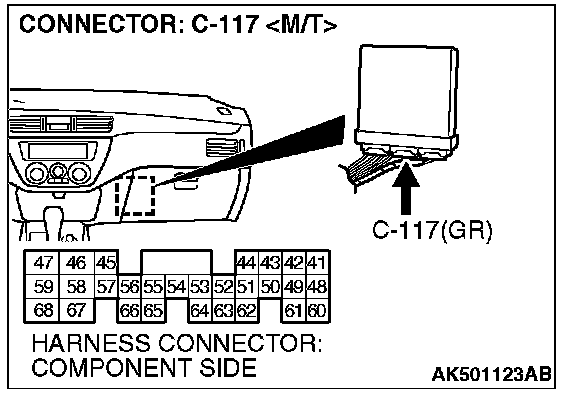

STEP 1. Check connector C-117 at ECM
Q: Is the connector in good condition?
YES: Go to Step 2.
NO: Repair or replace it. Then confirm that the malfunction symptom is eliminated.

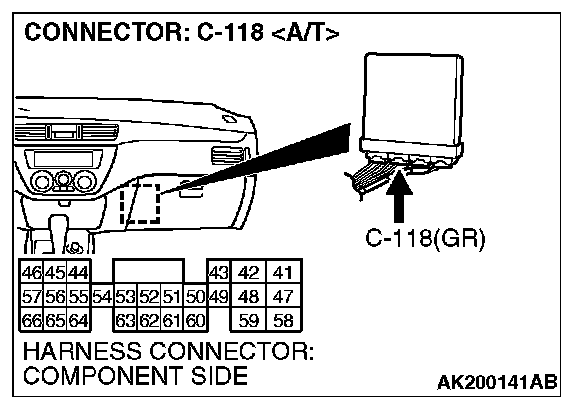

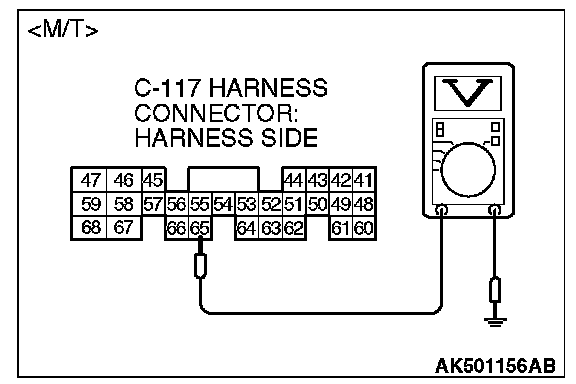

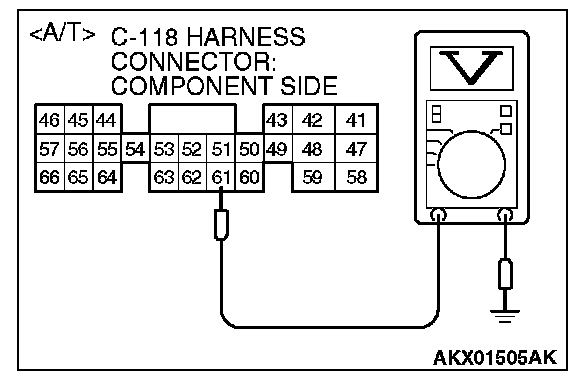

STEP 2. Measure the output voltage at ECM harness side connector C-117
1. Disconnect the connector C-117
2. Start the engine and run at idle.
3. Turn the A/C switch "ON".
4. Measure the voltage between terminal No. 65
- If atmospheric air temperature is 15 degrees C (59 degrees F) or less, the voltage should be 1 volt or less.
- If atmospheric air temperature is 18 degrees C (64.4 degrees F) more, the voltage should be battery positive voltage.
5. Turn the A/C switch "OFF".
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?
YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.
NO: Refer to Heater, Air Conditioning And Ventilation - Manual A/C Diagnosis - Symptom Chart in heating and Air Conditioning/Testing/Diagnosis by symptom.
