Engine Controls - Service Manual Revisions
No: TSB-06-52B-001DATE: October, 2006
MODEL: 2006 Lancer
SUBJECT:
CORRECTION TO CONNECTING
HARNESS & HOW TO READ & ERASE DTCS
- SERVICE MANUAL REVISION
TSB Revision: TSB-06-52B-OO1
PURPOSE
This bulletin has information about the following corrections:
^ The scan tool connecting harness is corrected
^ The procedures for reading and erasing diagnostic trouble codes (DTCs) is corrected.
AFFECTED VEHICLES
2006 Lancer
AFFECTED SERVICE MANUAL

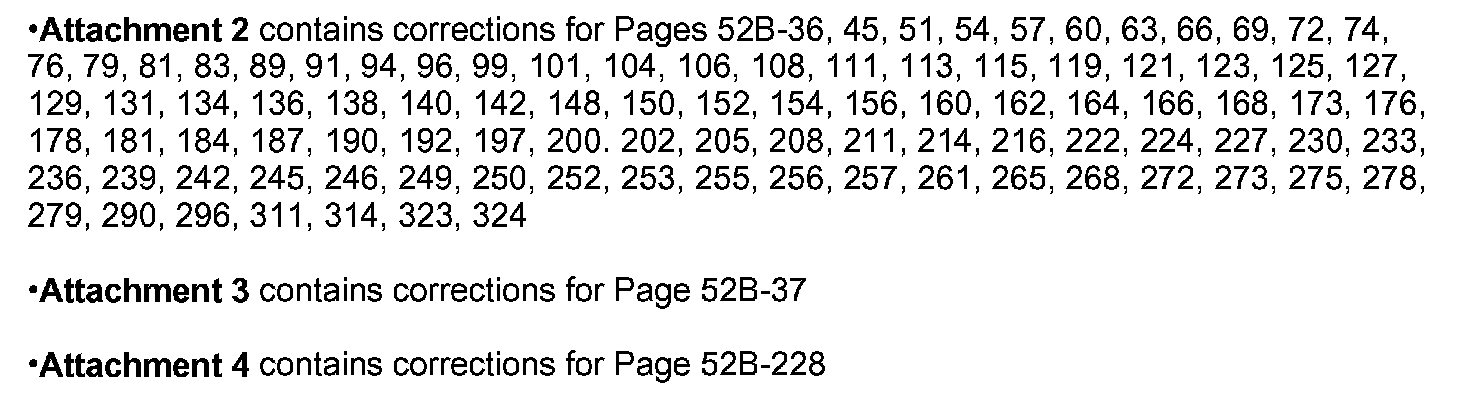

Attachments 2, 3 and 4 Corrections
SERVICE MANUAL REVISIONS
2006 Lancer Service Manual

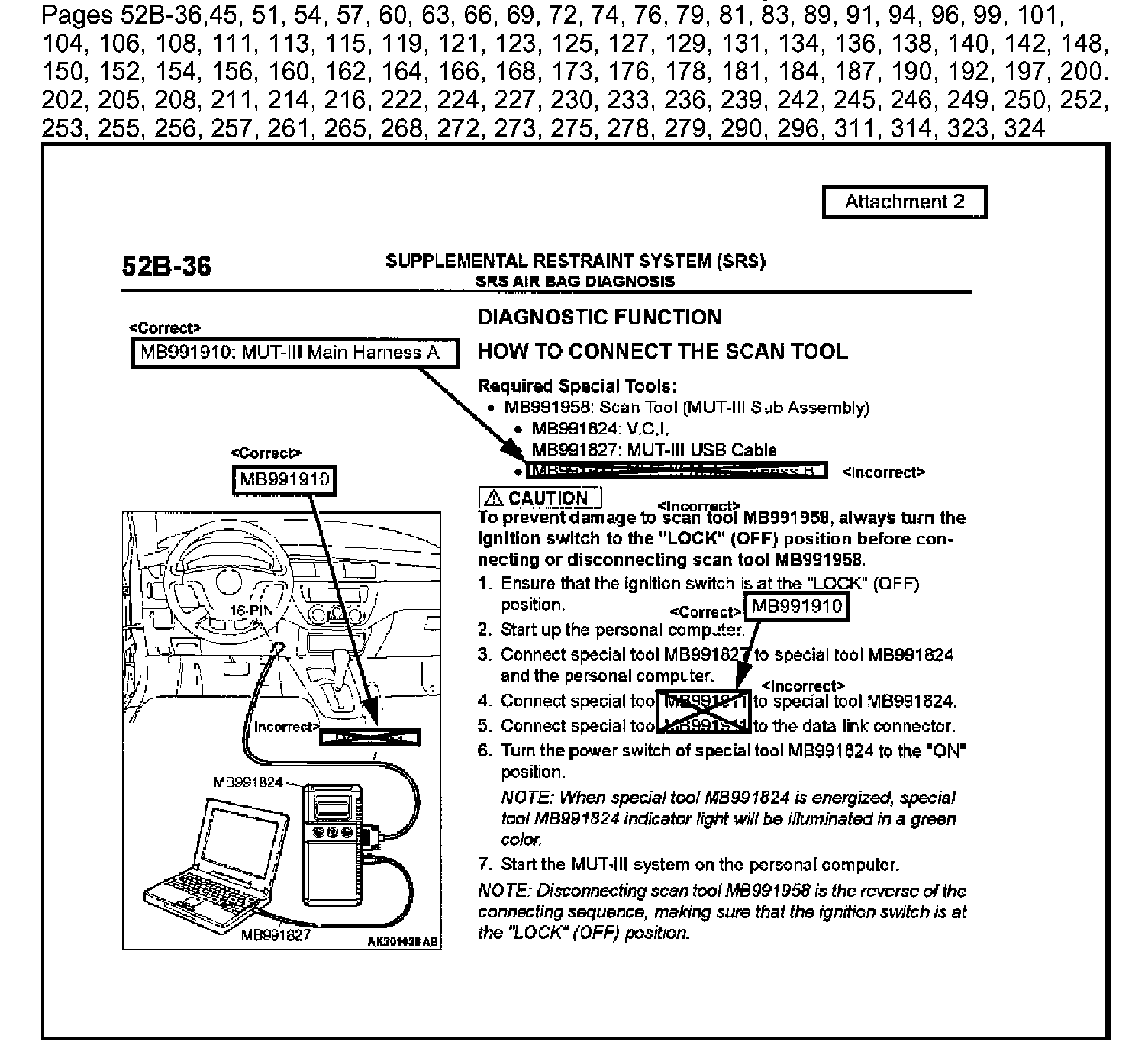

2006 Lancer Service Manual., Attachment 2 revises the following:

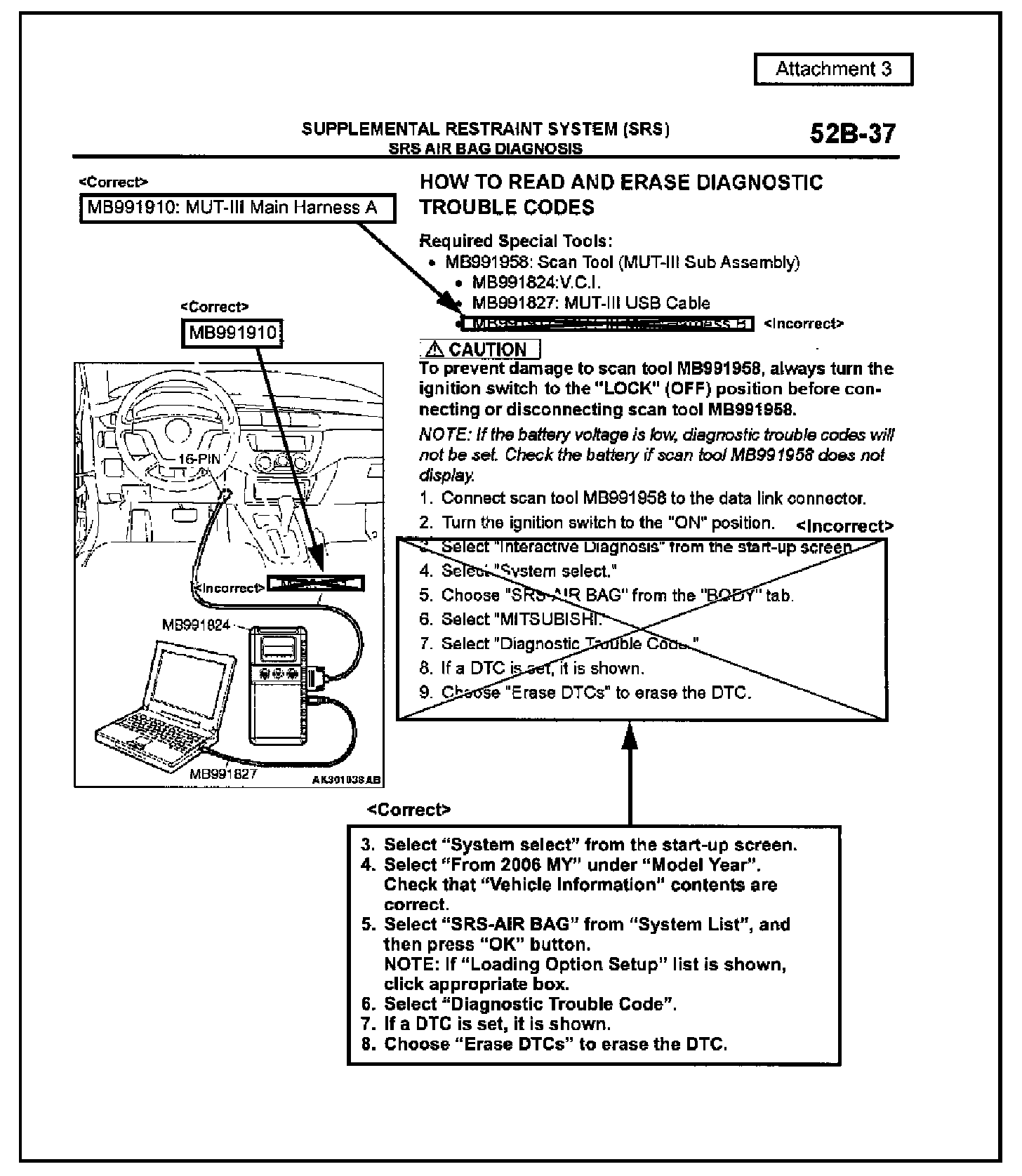

2006 Lancer Service Manual., Attachment 3 revises Page 52B-37

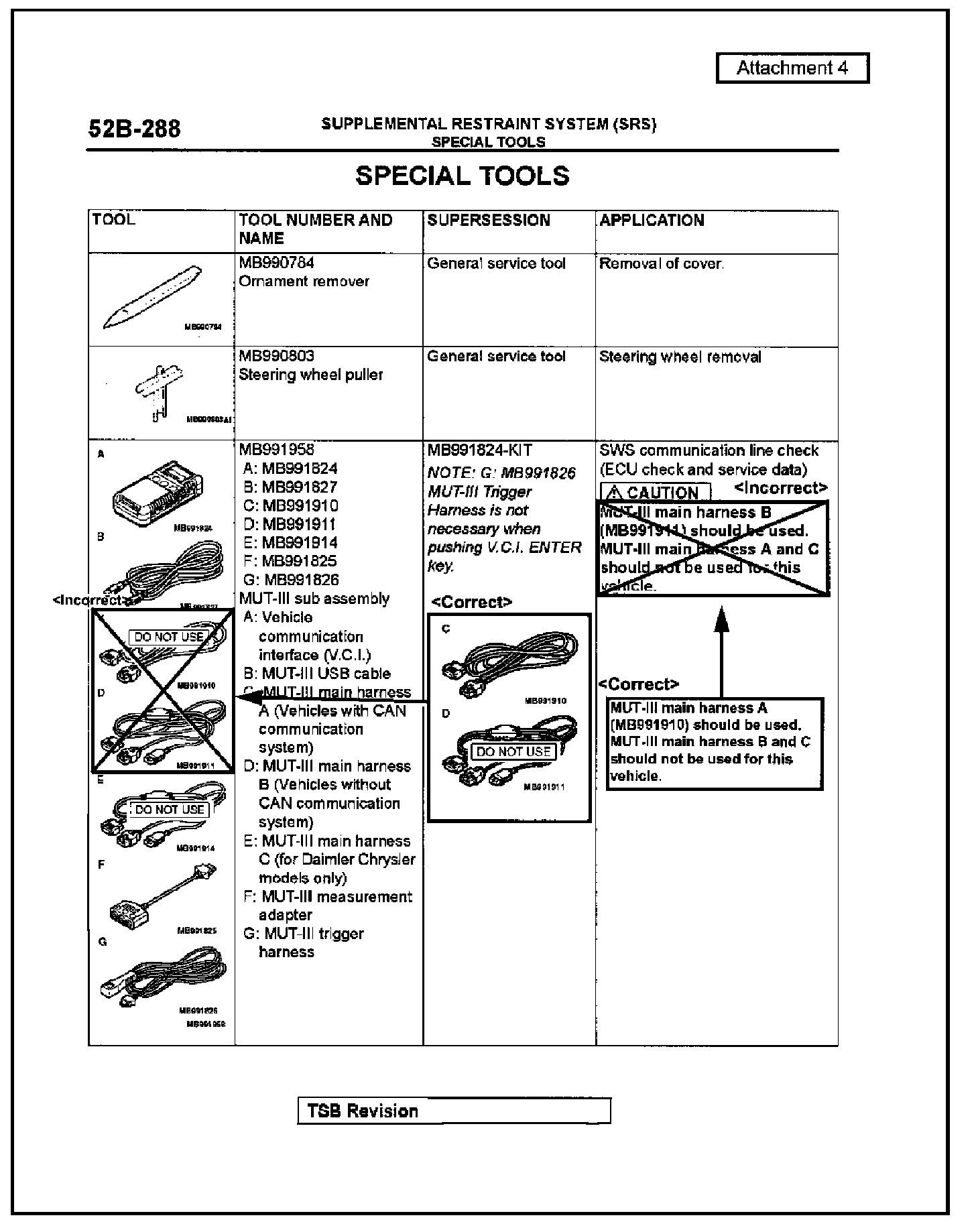

2006 Lancer Service Manual., Attachment 4 revises Page 52B-288
