Engine Controls - Correct DTC P2100/P2101

No: TSB-05-13-011

DATE: October 07, 2005

SUBJECT:
CORRECTED DTC P2100 & P2101 SET CONDITIONS & ELIMINATION OF DTCS P2102 & P2103 - SERVICE MANUAL REVISION

MODEL: See Below

PURPOSE
This bulletin contains corrected DTC set conditions for DTCs P2100 and P2101 and eliminates references to DTCs P2102 and P2103.

AFFECTED VEHICLES

2006 Lancer 2006 Outlander

AFFECTED SERVICE MANUALS

2006 Lancer Service Manual, Pages 13B-9, 40, 684, 691, 696-707
2006 Outlander Service Manual, Pages 13A-10, 43, 698, 704, 709-720

SERVICE MANUAL REVISIONS
Delete all procedures and references related to DTCs P2102 & P2103 from the following pages:

2006 Lancer, Pages 13B-696 through 707
2006 Outlander, Pages 13A-709 through 720

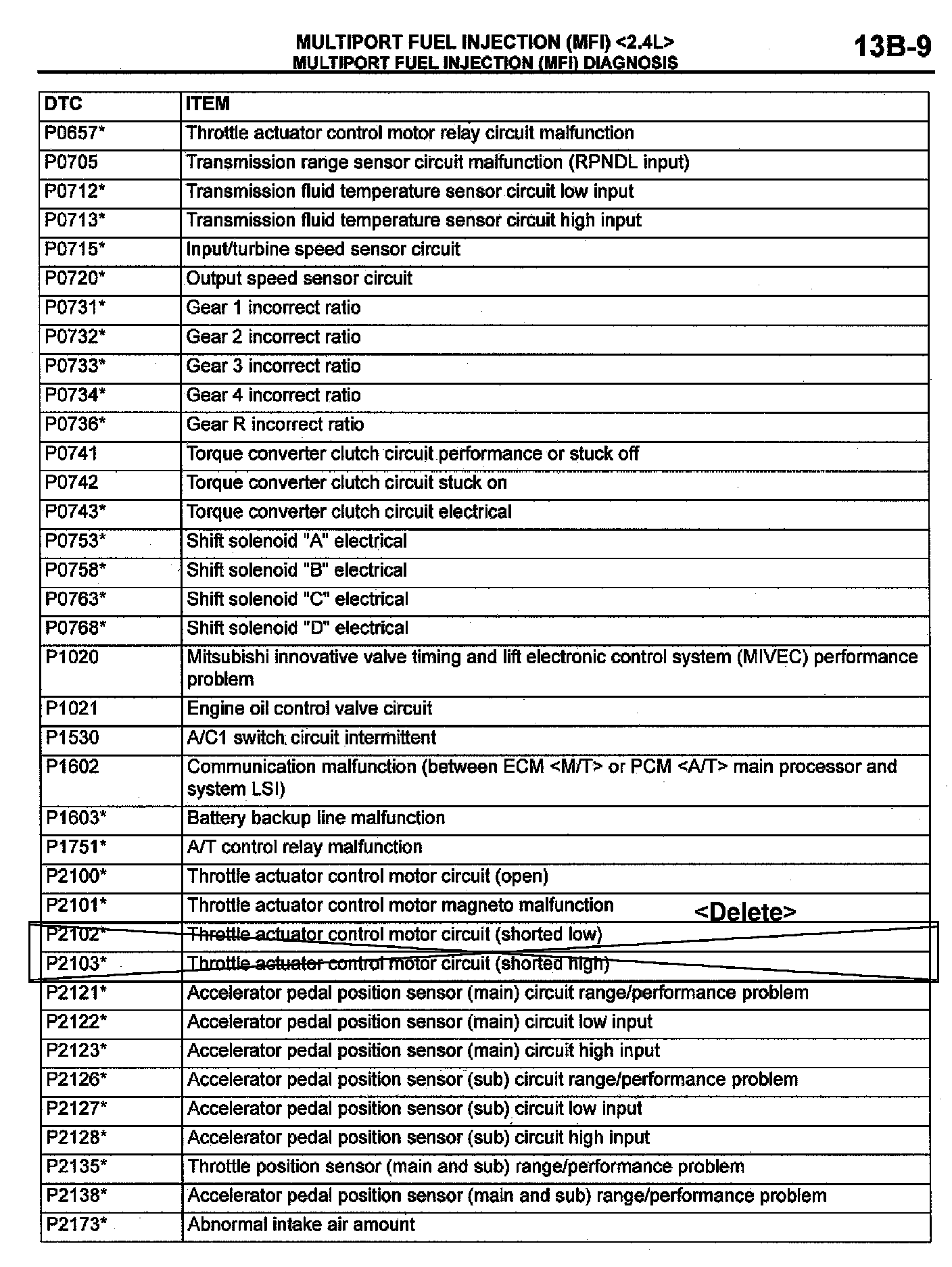

2006 Lancer, Page 13B-9

Eliminate references to DTCs P2102 & P2103 as shown:

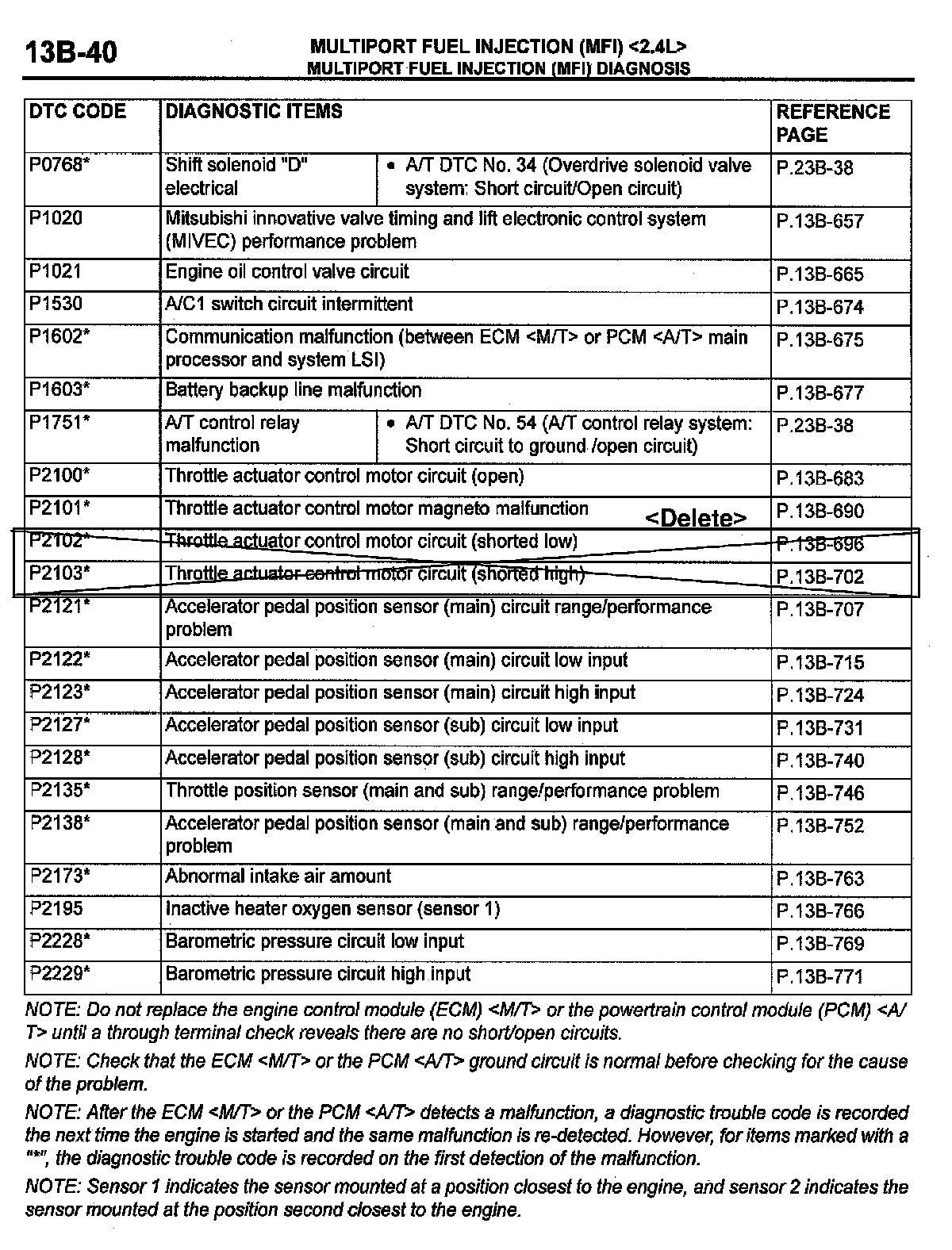

2006 Lancer, Page 13B-40
Eliminate references to DTCs P2102 & P2103 as shown:

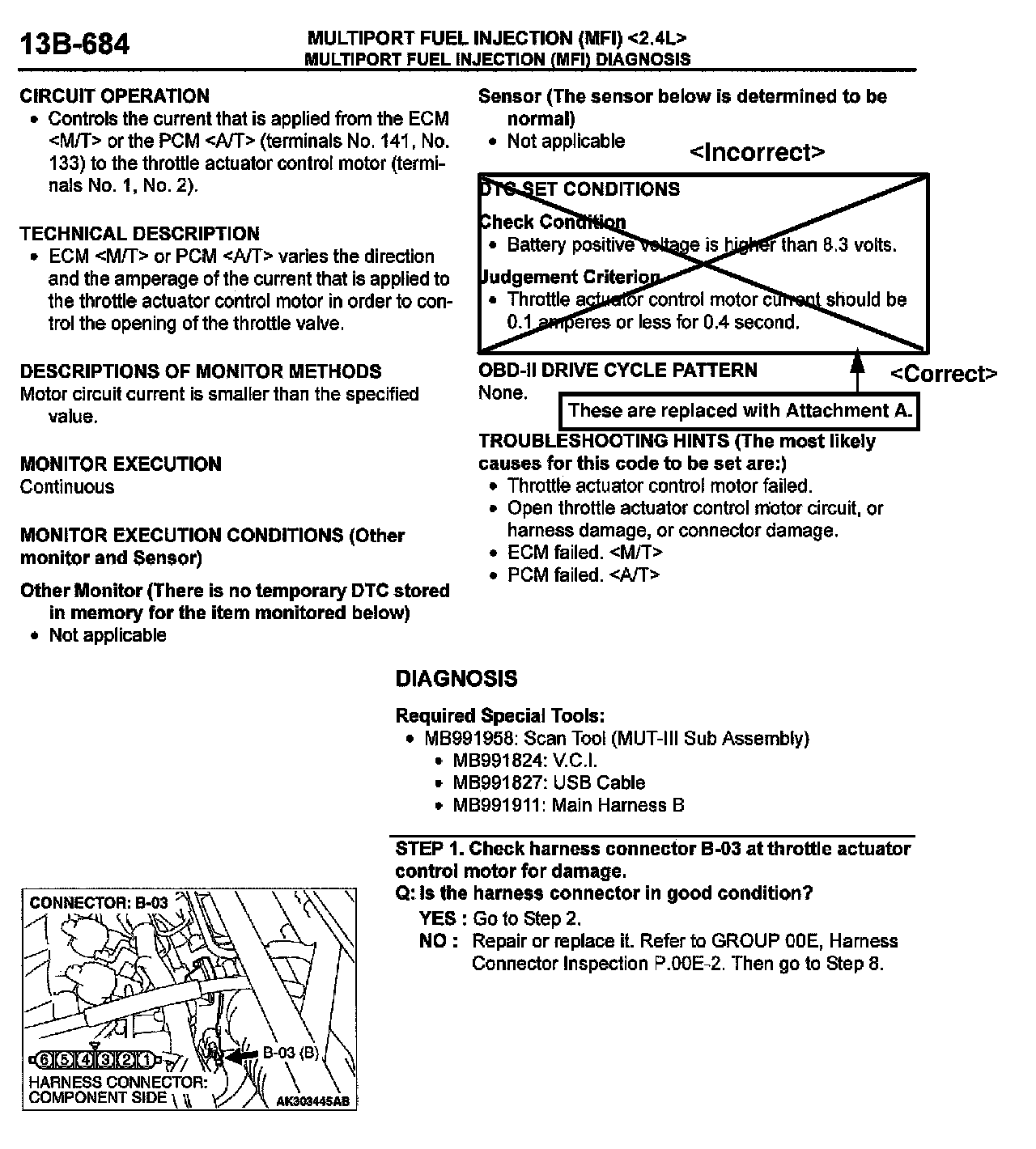

2006 Lancer, Page 13B-684

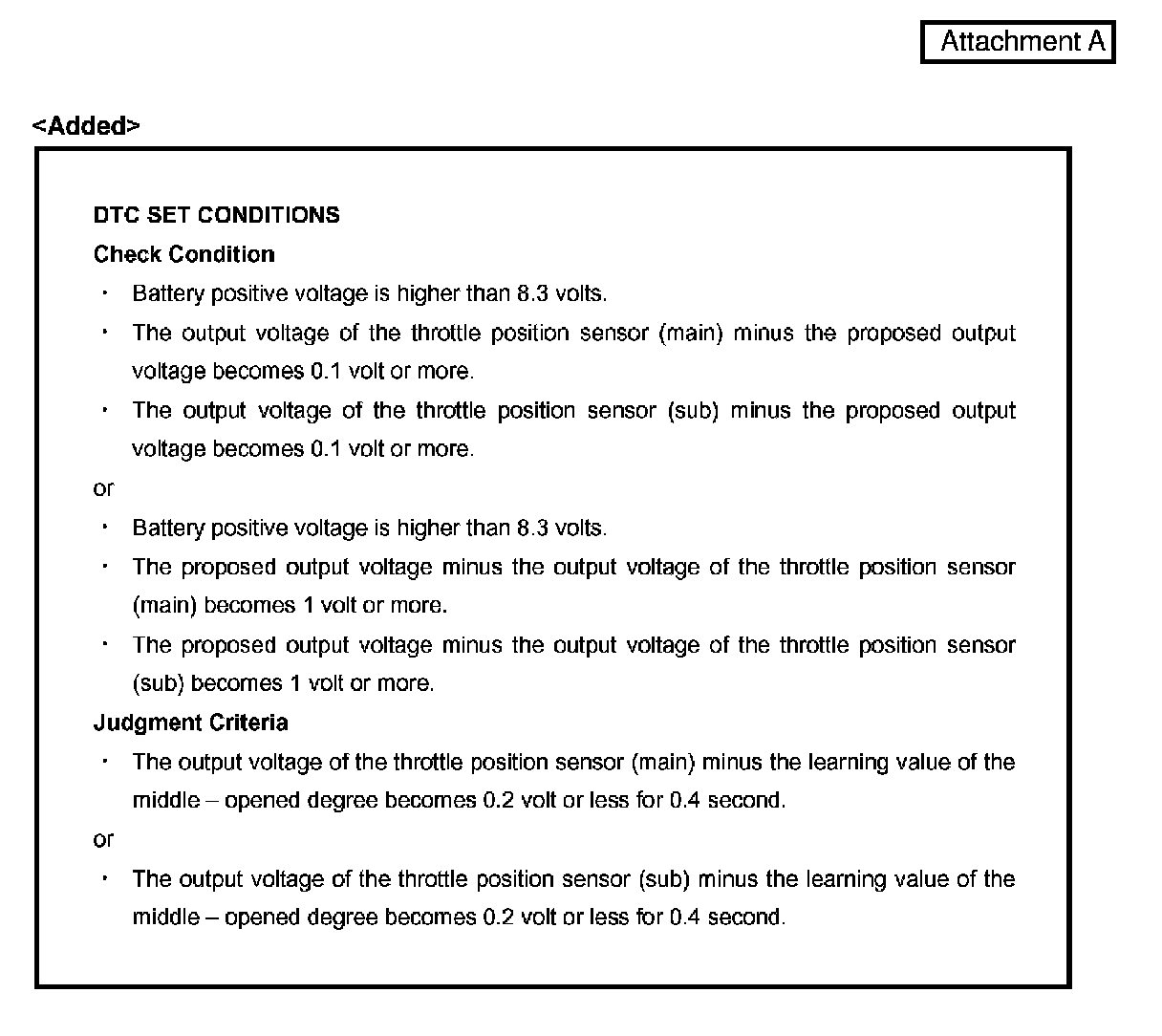

Replace the DTC P2100 Set Conditions shown with Attachment A.

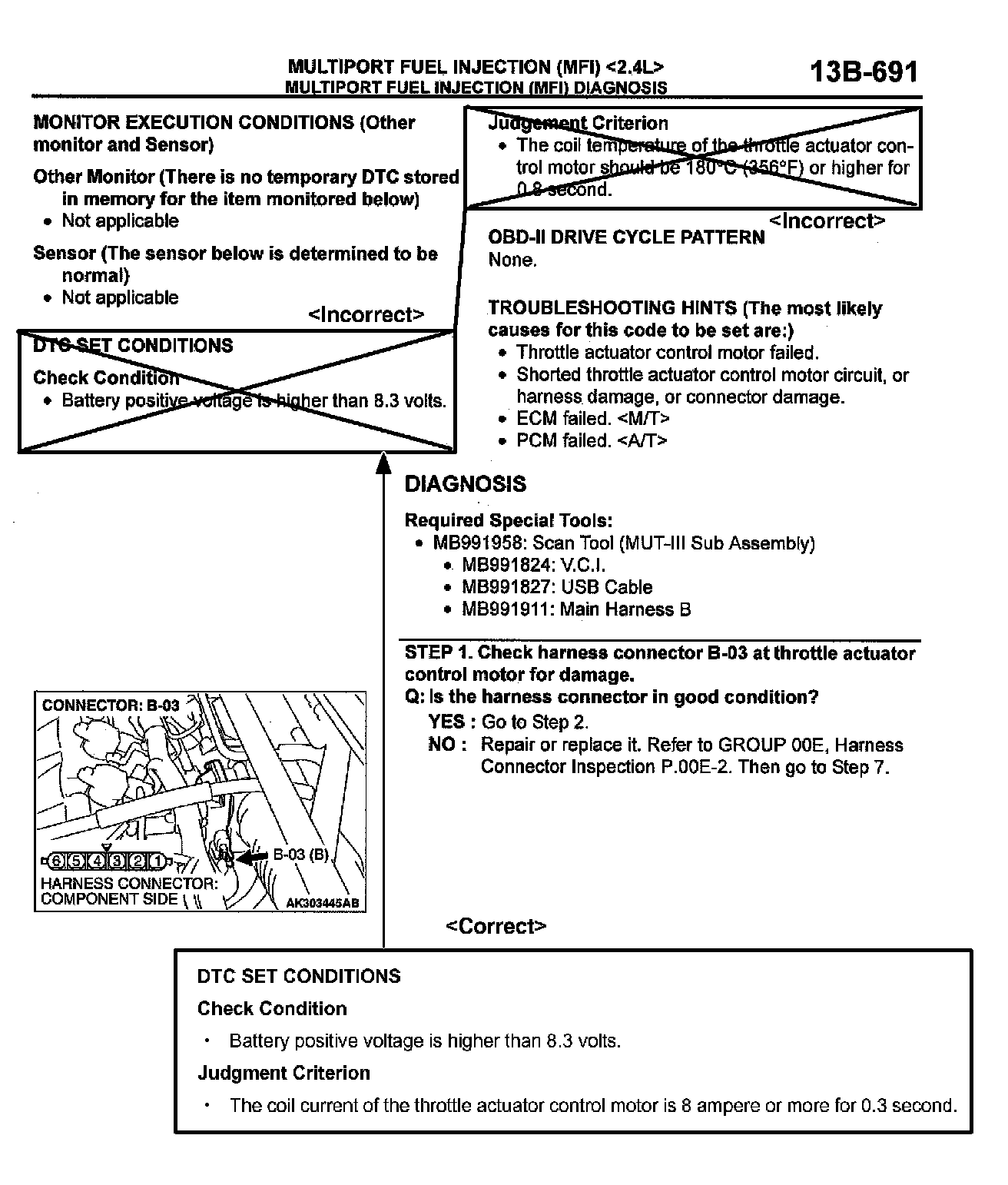

2006 Lancer, Page 13B-691
Correct the DTC P2101 Set Conditions as shown:

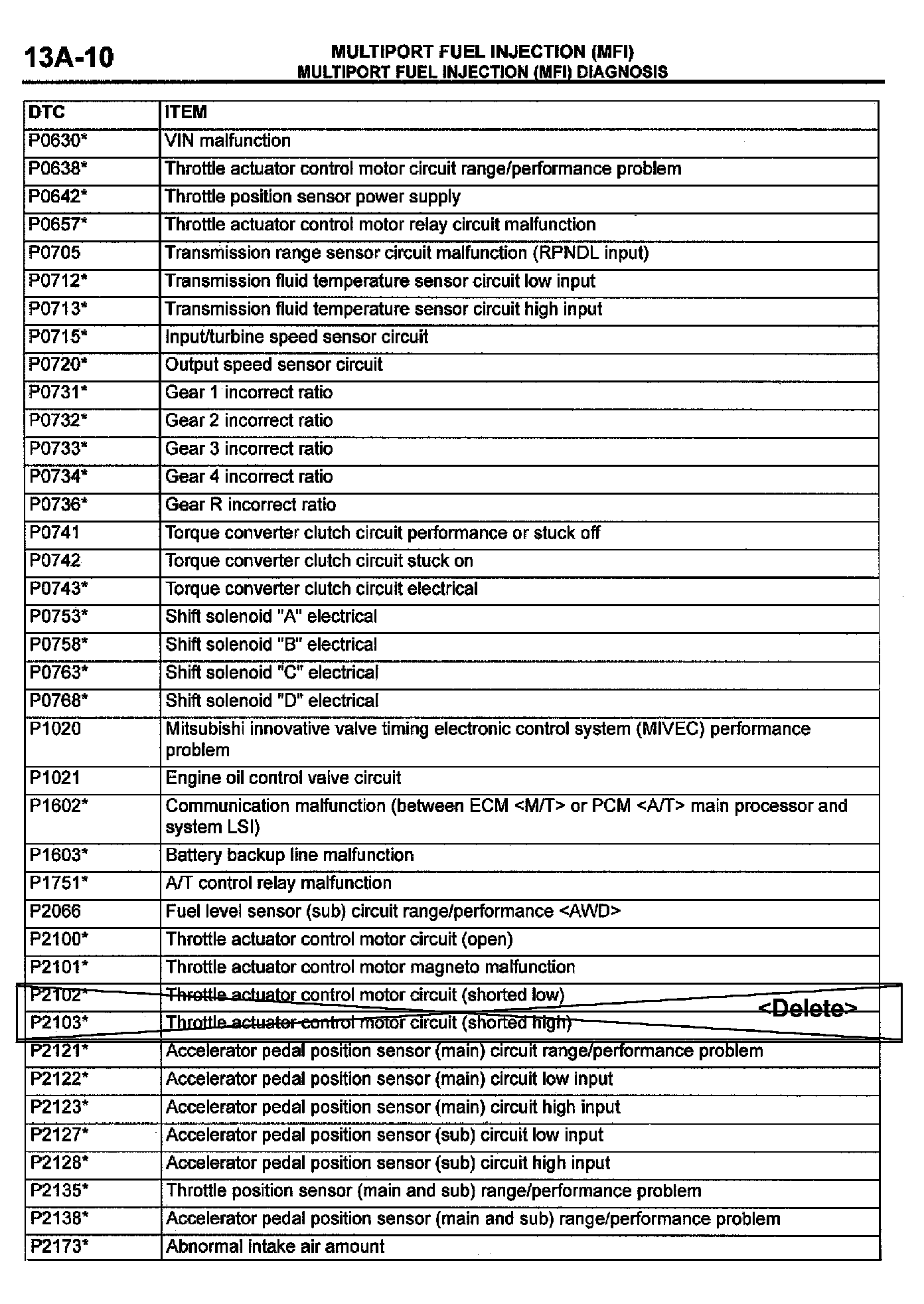

2006 Outlander, Page 13A-10
Eliminate references to DTCs P2102 & P2103 as shown:





2006 Outlander, Page 13A-43
Eliminate references to DTCs P2102 & P2103 as shown:

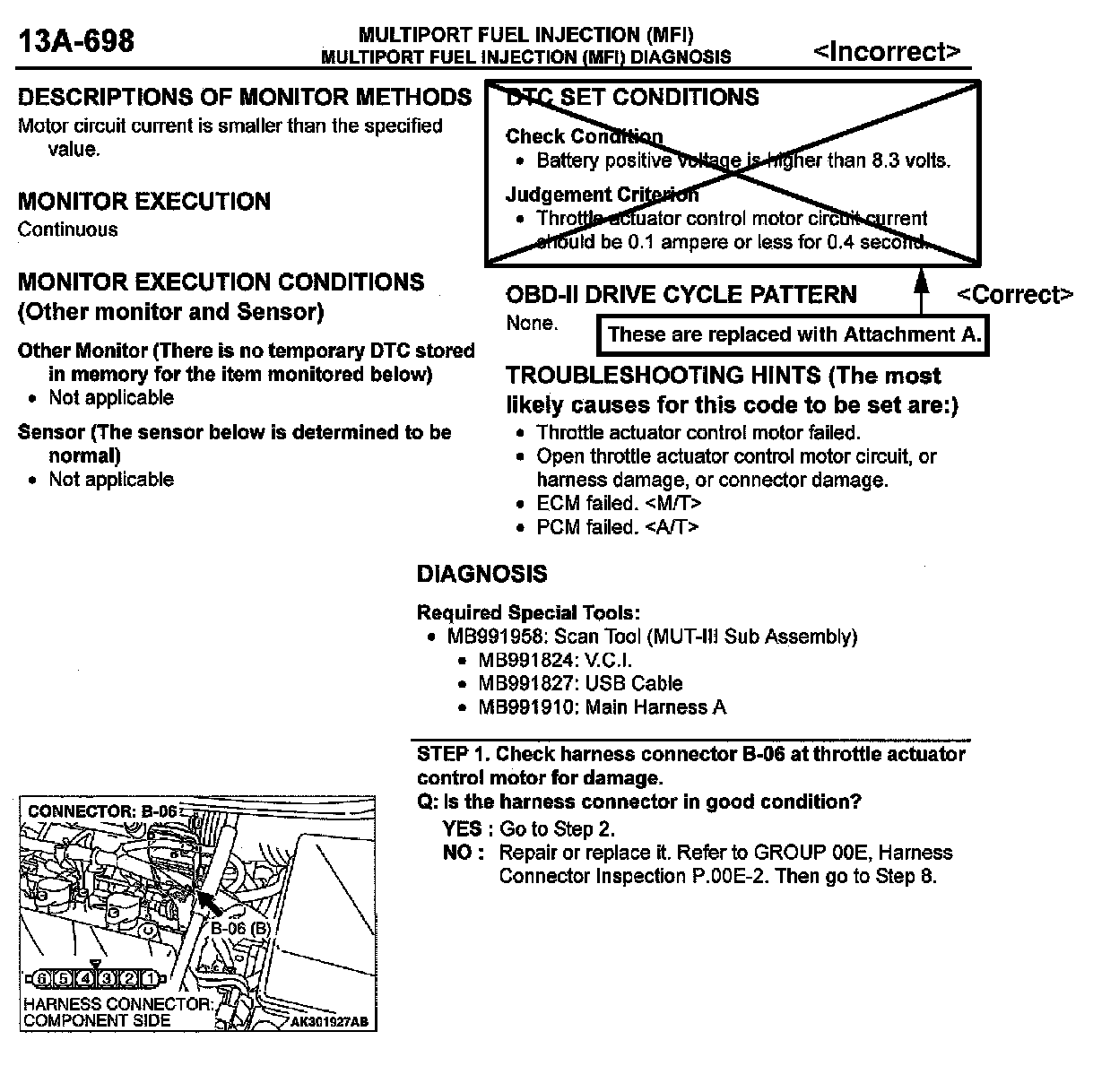

2006 Outlander, Page 13A-698

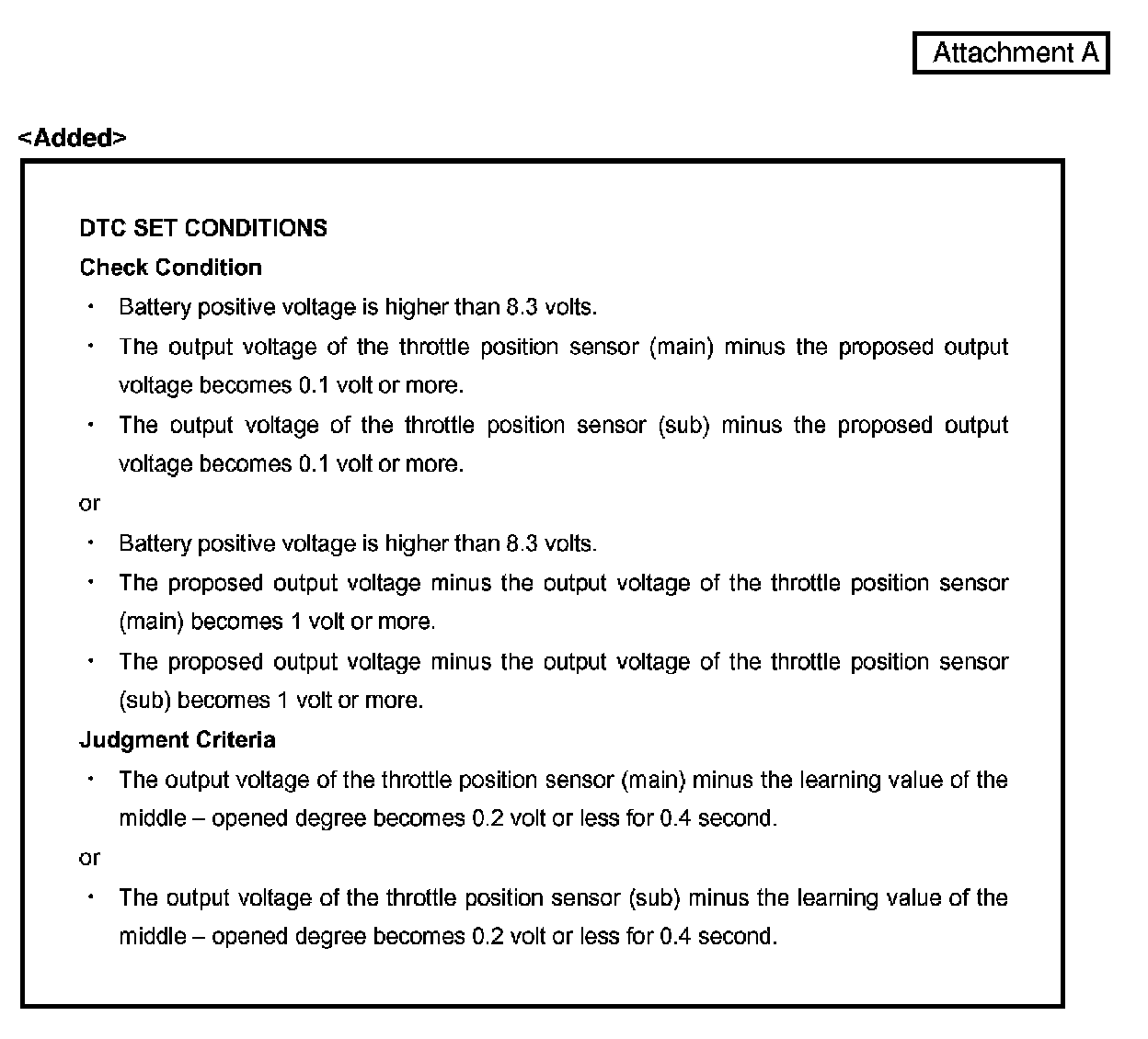

Replace the DTC P2100 Set Conditions shown with Attachment A.

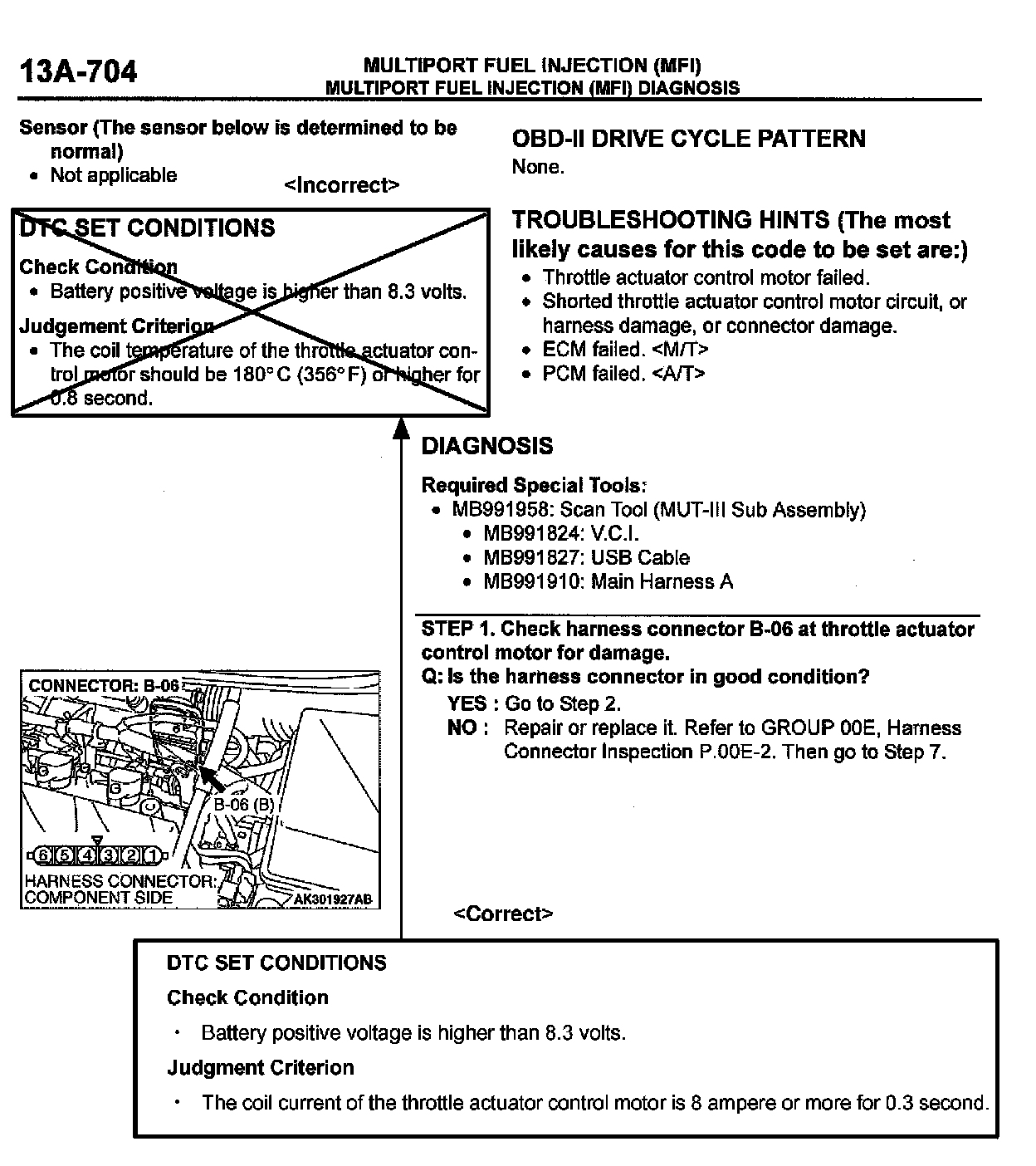

2006 Outlander, Page 13A-704
Correct the DTC P2101 Set Conditions as shown:
