Removal and Installation

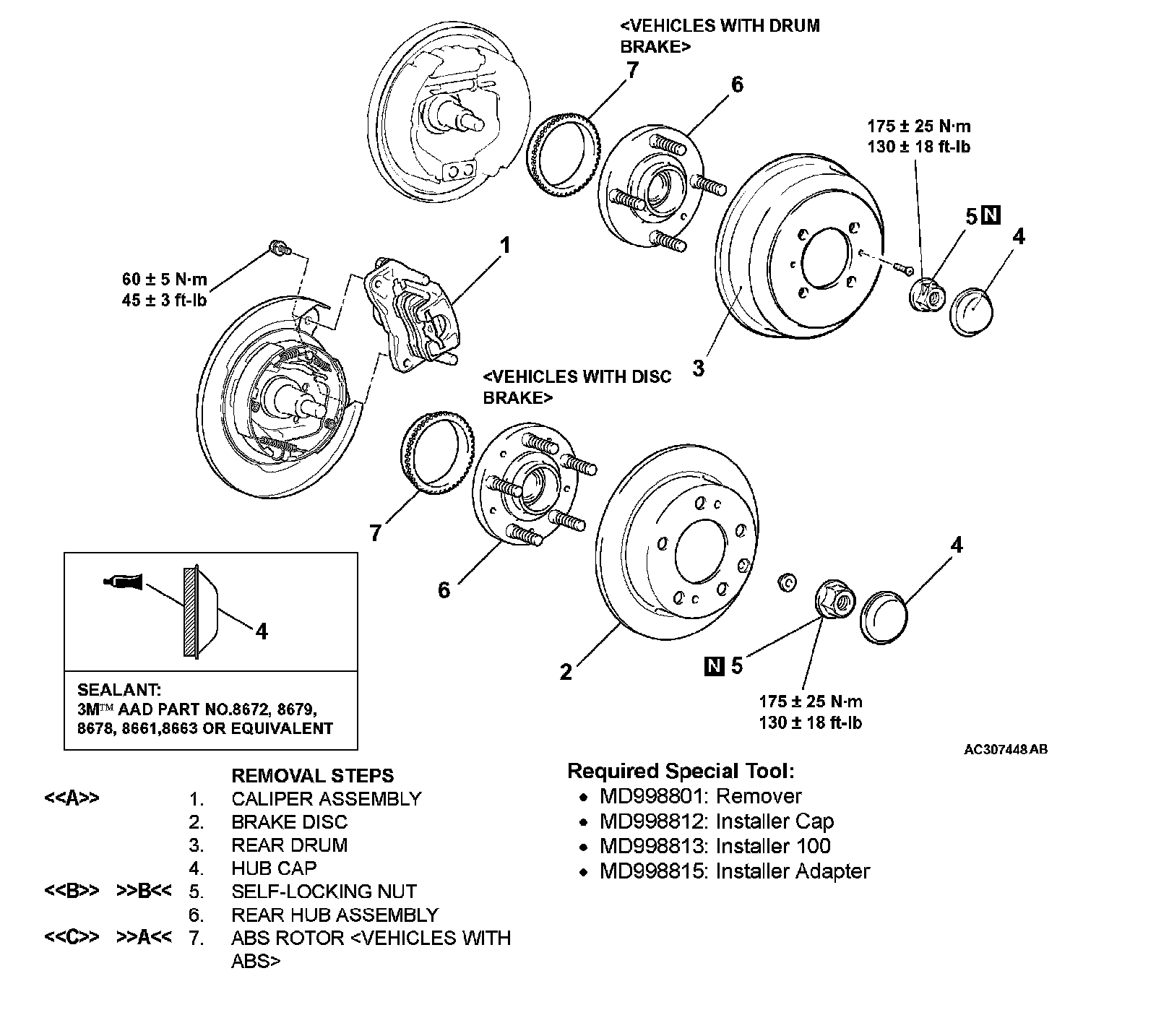

REAR AXLE HUB ASSEMBLY
REMOVAL AND INSTALLATION

CAUTION:
1. For vehicles with ABS, care must be taken not to scratch or damage the teeth of the ABS rotor. The ABS rotor must never be dropped. If the teeth of the ABS rotor are chipped, resulting in a deformation of the ABS rotor, it will not be able to accurately detect the wheel rotation speed, and the system will not function normally.
2. The rear hub assembly should not be dismantled. When removing the rear hub assembly, the wheel bearing inner race may be left at the spindle side. In this case, always replace the rear hub assembly, otherwise the hub will damage the oil seal, causing oil leaks or excessive play.

REMOVAL SERVICE POINTS
[[A]] CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, etc.

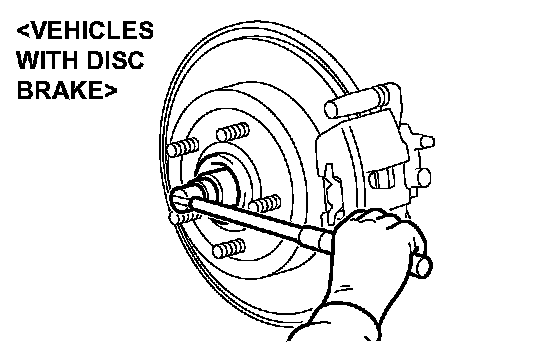

[[B]] SELF-LOCKING NUT REMOVAL








CAUTION: Do not apply the vehicle weight to the wheel bearing while loosening the self-locking nut, or the wheel bearing will be damaged.

[[C]] ABS ROTOR REMOVAL

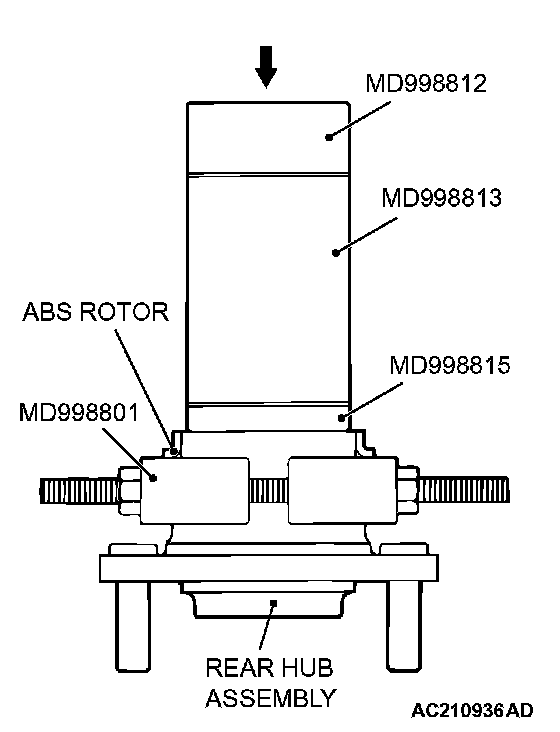

Use special tools MD998812, MD998813, MD998815 and MD998801 to press out ABS rotor from the rear hub assembly.

INSTALLATION SERVICE POINT

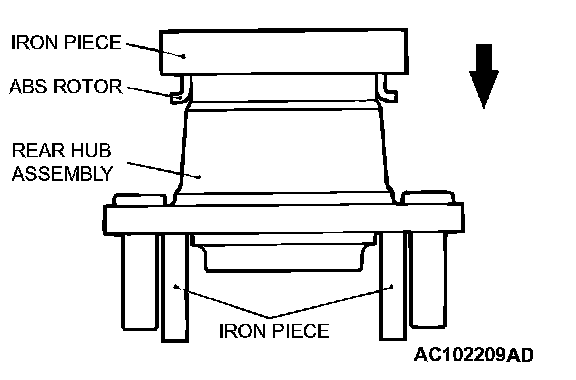

]]A[[ ABS ROTOR INSTALLATION

CAUTION: When installing, take care not to deform the ABS rotor.





Press-fit the ABS rotor to the rear hub assembly.

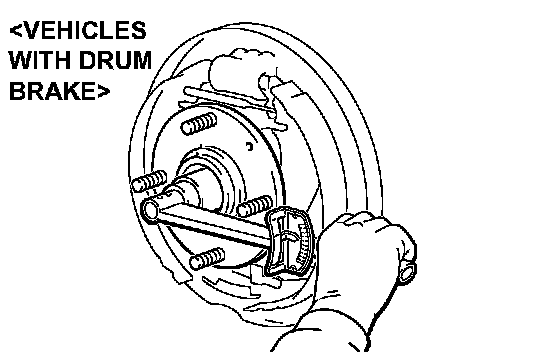

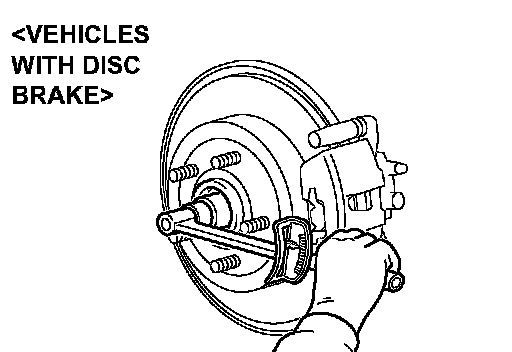

]]B[[ SELF-LOCKING NUT INSTALLATION

CAUTION: Before securely tightening the self-locking nuts, make sure there is no load on the wheel bearings. Otherwise the wheel bearing will be damaged.








Tighten the self-locking nut to the specified torque.

INSPECTION
^ Check the oil seal of the rear hub unit bearing for crack or damage.
^ Check the rear hub unit bearing for wear or damage.
^ Check the ABS rotor for chipped teeth.
