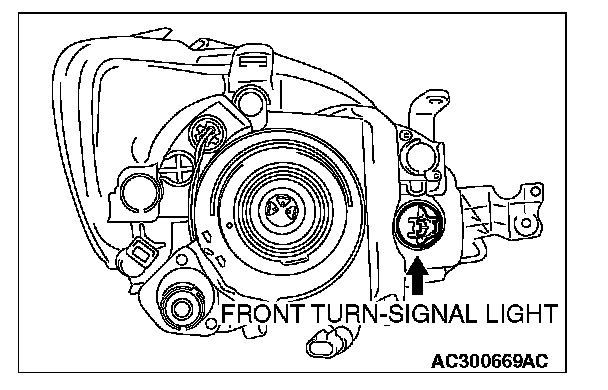

Front Turn-Signal Light Bulb

Front Turn-Signal Light bulb

CAUTION:
Do not touch the bulb surface bare-handed or with dirty gloves. If dirt is attached on surface of the bulb, immediately use alcohol or thinner to remove dirt, and install the bulb after well dried.




1. Disconnect the connector.
2. Screw out front turn-signal light socket to pull out front turn-signal light bulb.
