Headlamp: Service and Repair
HEADLIGHTPost-installation Operation:
Removal Step 1:
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
<> HEADLIGHT ASSEMBLY REMOVAL

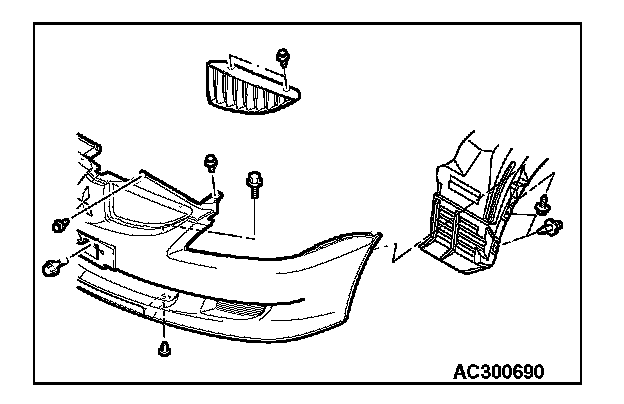

1. Remove the splash shield, the radiator grill, the front bumper assembly installation clips, the screws and the bolts as shown.

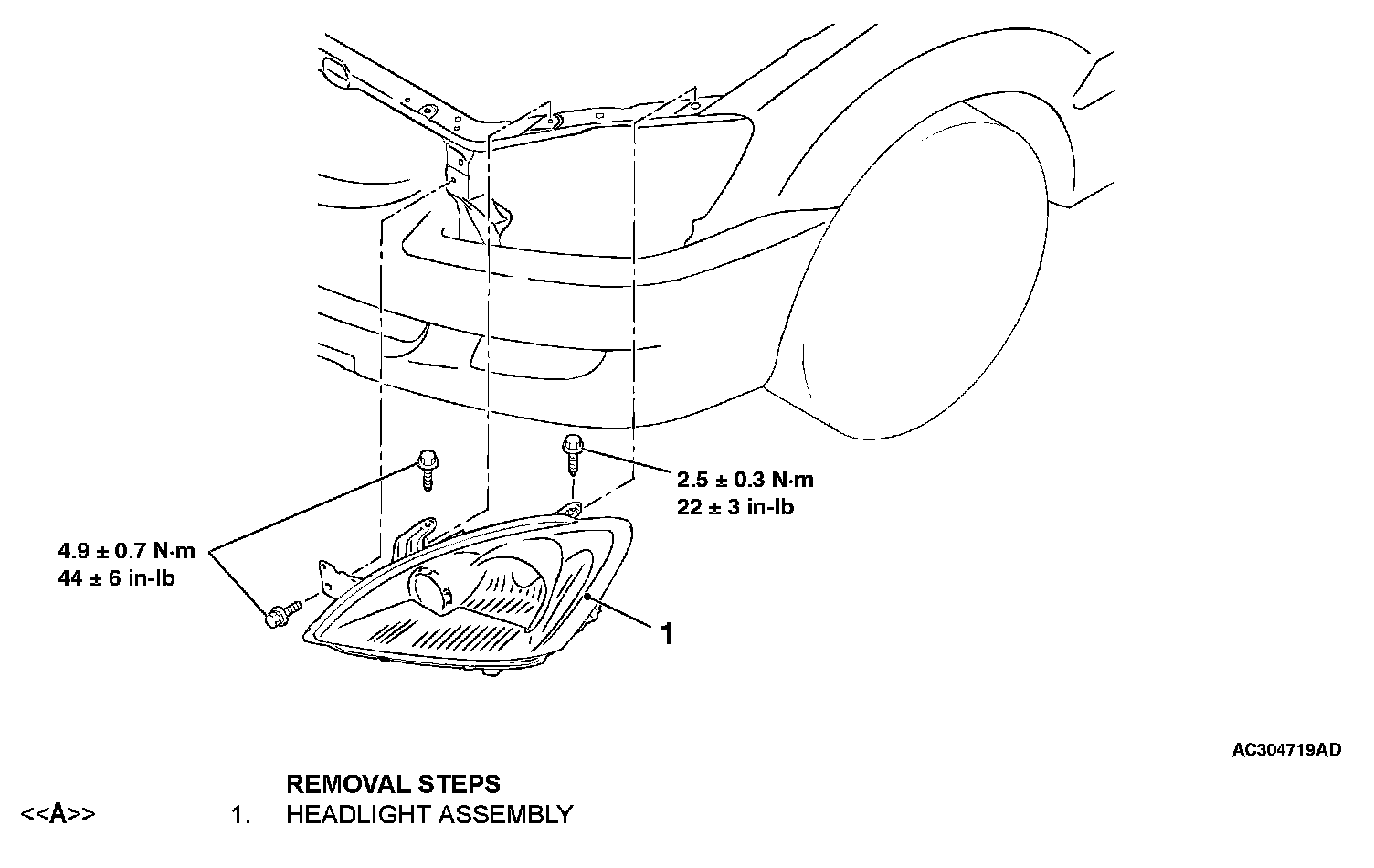

2. Slide the front bumper assembly and remove the headlight assembly.
