Fog/Driving Lamp: Service and Repair

FOG LIGHT

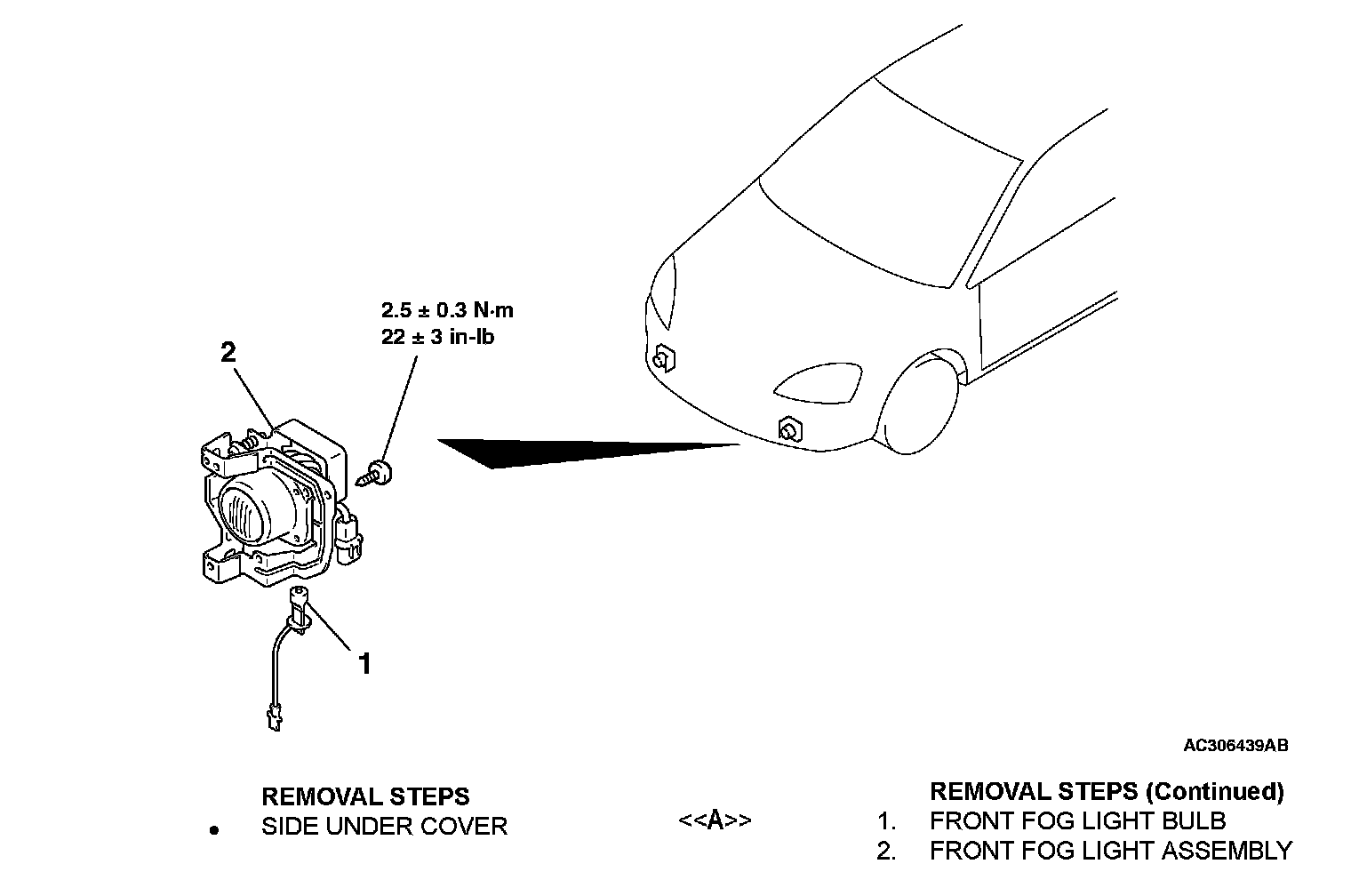

Removal Steps 1-2:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> FRONT FOG LIGHT BULB REMOVAL

CAUTION: Do not touch the surface of the bulb with bare hands or dirty gloves. If the surface (glass section) should become dirty, clean it immediately with alcohol or thinner, and let it dry thoroughly before installing it.

1. Remove the bulb cover.

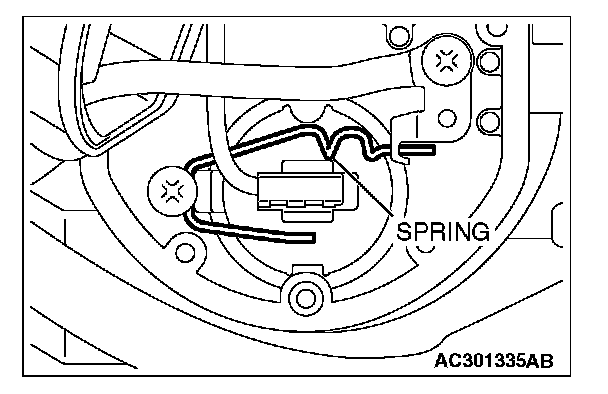

2. Remove the bulb installation spring and extract the bulb.
