Center Mounted Brake Lamp: Service and Repair

HIGH-MOUNTED STOPLIGHT

Removal Steps 1-6:

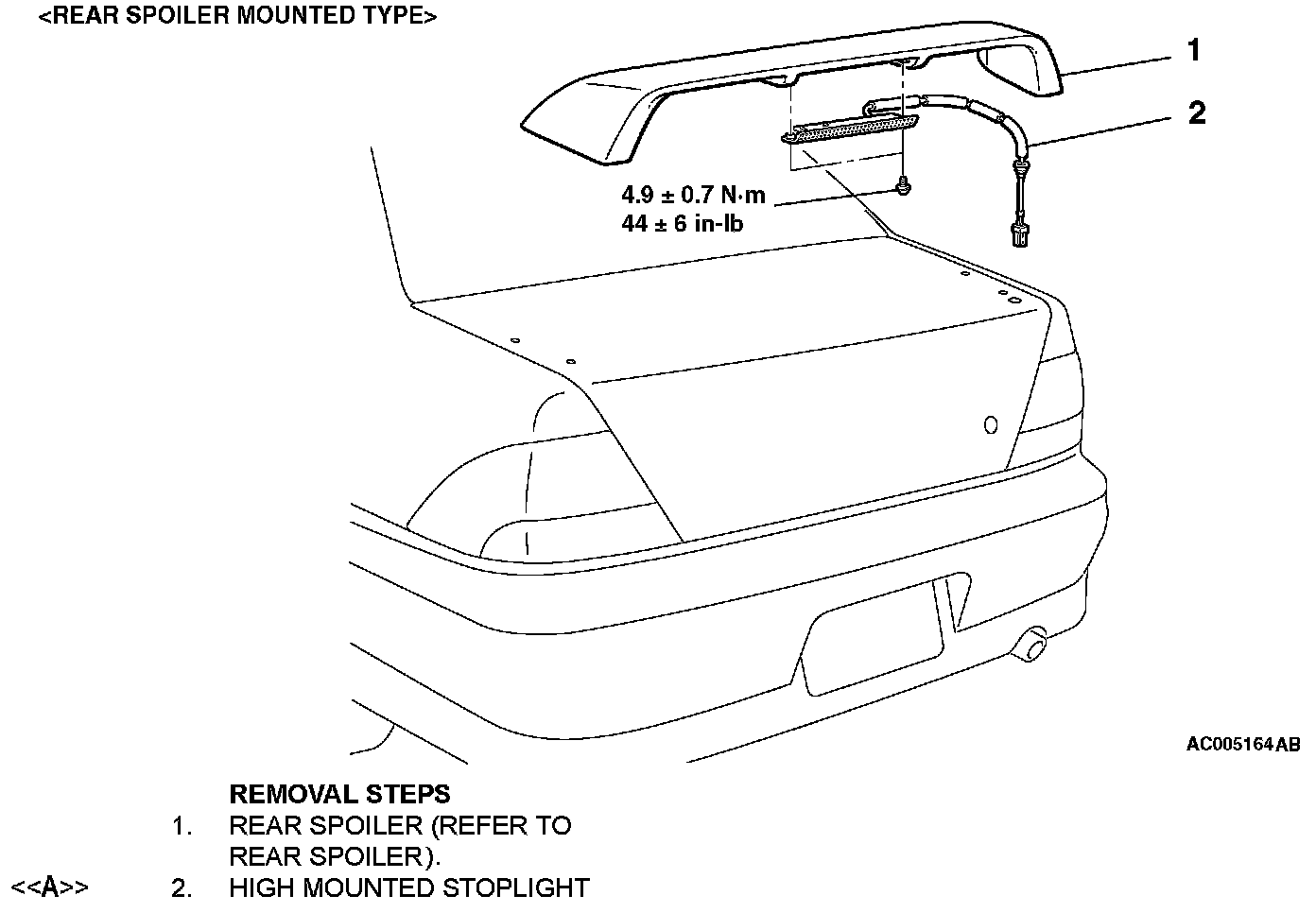

Removal Steps 1-2:

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> HIGH-MOUNTED STOPLIGHT REMOVAL
Use the following steps to easily route high-mounted stoplight harness in the event of installation:

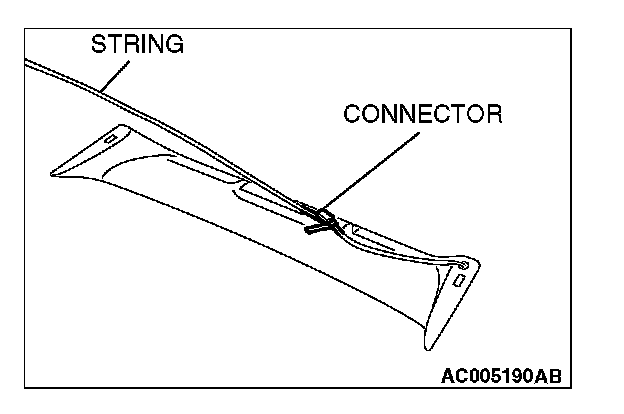

1. Tie a string on the high-mounted stoplight harness (at the connector side).

CAUTION: Ensure that the string is tightly tied.

2. Carefully pull out the high-mounted stoplight.
