Combination Meter Internal Resistance Check
Combination Meter Internal Resistance Check

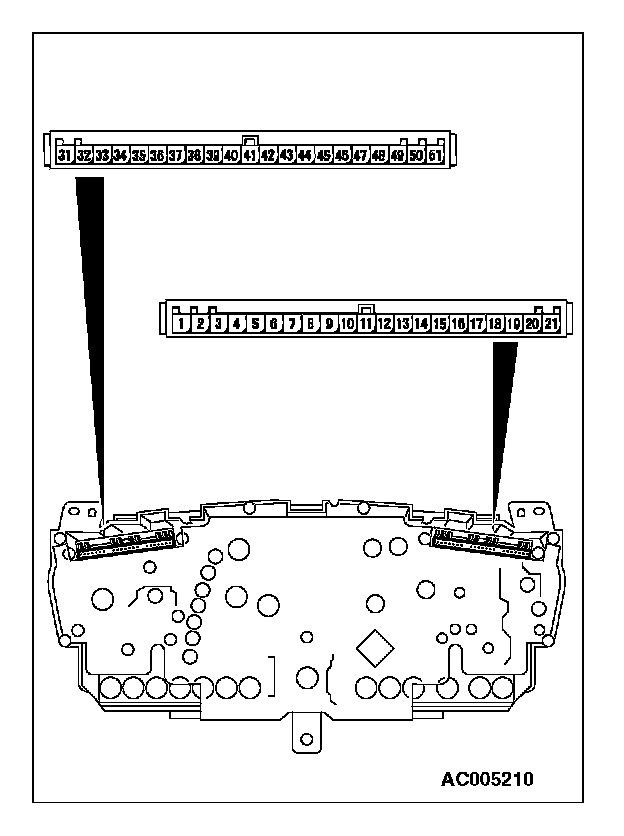

COMBINATION METER INTERNAL RESISTANCE CHECK

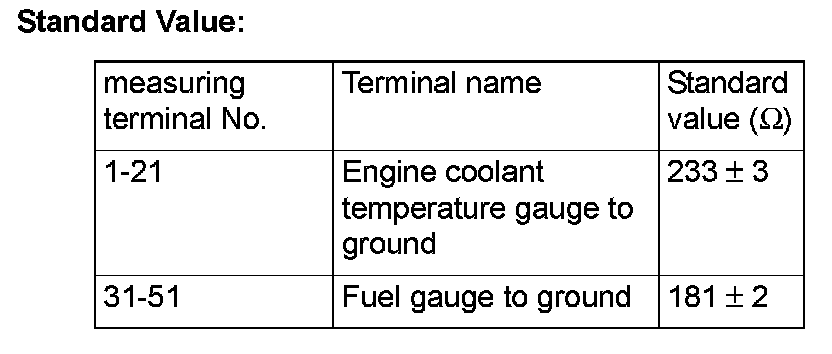

Use circuit tester to measure combination meter internal resistance.
