Removal and Installation

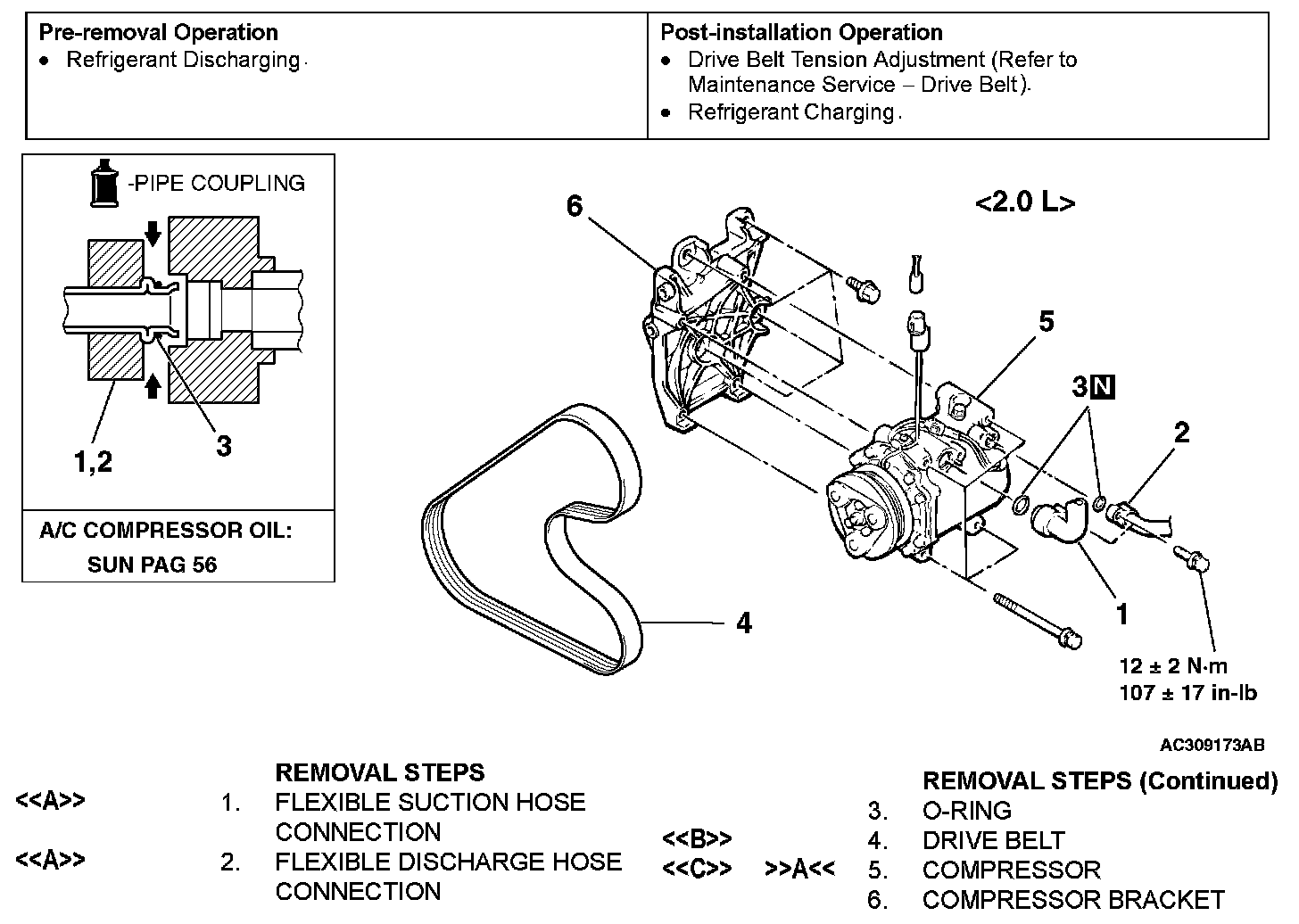

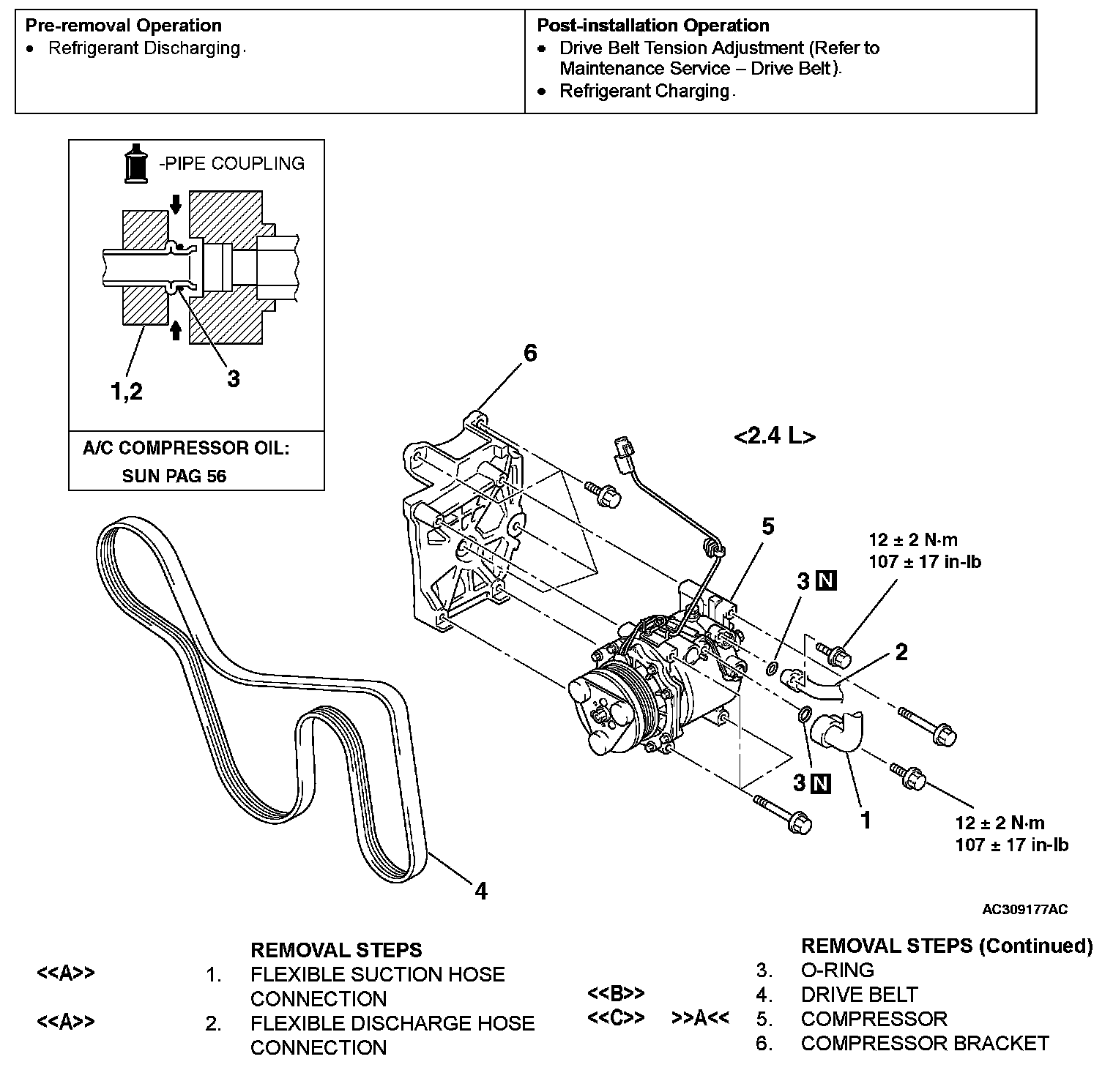

COMPRESSOR ASSEMBLY AND TENSION PULLEY
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
<> FLEXIBLE SUCTION HOSE AND FLEXIBLE DISCHARGE HOSE DISCONNECTION
CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.
To prevent the entry of dust or other foreign bodies, plug the dismantled hoses and compressor nipples.
<> DRIVE BELT REMOVAL <2.4 L>
The following operations will be needed due to the introduction of the serpentine drive system with the drive belt auto-tensioner.

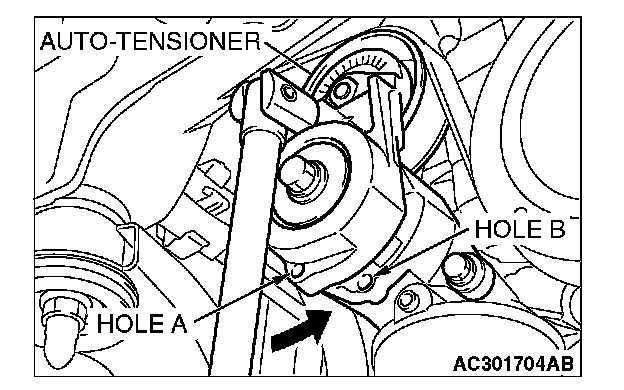

1. Securely insert the spindle handle or ratchet handle with a 12.7 mm (1/2-inch) insertion angle into the jig hole of the auto-tensioner.
2. Rotate the auto-tensioner counterclockwise and align hole A with hole B.
CAUTION: To reuse the drive belt, draw an arrow indicating the rotating direction (clockwise) on the back of the belt using chalk, etc.
3. Insert an L-shaped hexagon wrench, etc. into the hole to fix and then remove the drive belt.
<
Take care not to spill any compressor oil when removing the compressor.
INSTALLATION SERVICE POINT
>>A<< COMPRESSOR INSTALLATION
If a new compressor is installed, first adjust the amount of oil according to the procedures described below, and then install the compressor.
1. Measure the amount [X cu.cm (X floz)] of oil within the removed compressor.
2. Drain (from the new compressor) the amount [Y cu.cm (Y floz)] of oil calculated according to the following formula, and then install the new compressor.
New compressor oil amount = 140 cu.cm (4.7 floz) <2.0 L>
New compressor oil amount = 120 cu.cm (4.0 floz) <2.4 L>
140 cu.cm X cu.cm = Y cu.cm (4.7 floz X floz = Y floz) <2.0 L>
120 cu.cm X cu.cm = Y cu.cm (4.0 floz X floz = Y floz) <2.4 L>
NOTE: Y cu.cm (Y floz) indicates the amount of oil in the refrigerant line, the condenser, the evaporator, etc.
NOTE: When replacing the following parts at the same times as the compressor, subtract the rated oil amount of the each part from Y cm3 (Y floz) and discharge from the new compressor.
Quantity:
- Evaporator: 60 cu.cm (2.0 floz)
- Condenser: 15 cu.cm (0.5 floz)
- Suction hose: 10 cu.cm (0.3 floz)
- Receiver: 10 cu.cm (0.3 floz)
