A/C Compressor Clutch Operation Check

COMPRESSOR AIR CONDITIONING

A/C COMPRESSOR CLUTCH OPERATION CHECK

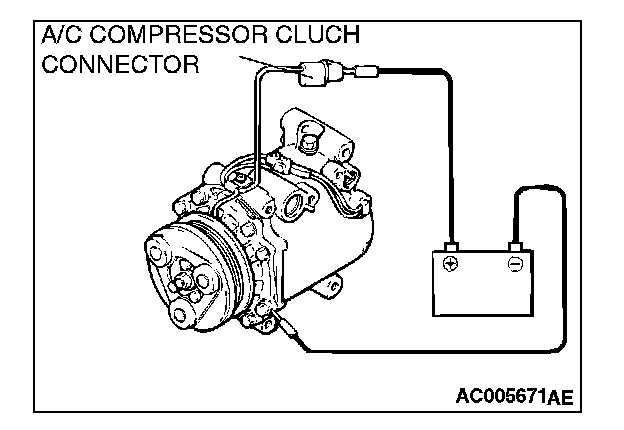

Connect the compressor connector terminal to the battery positive (+) terminal and ground the battery s negative (-) terminal to the compressor unit. At that time, the magnetic clutch should make a definite operating sound.
