Inspection Procedure 3
INSPECTION PROCEDURE 3: Radiator Fan and Condenser Fan do not Operate
[2.0L ENGINE]
[2.4L ENGINE]

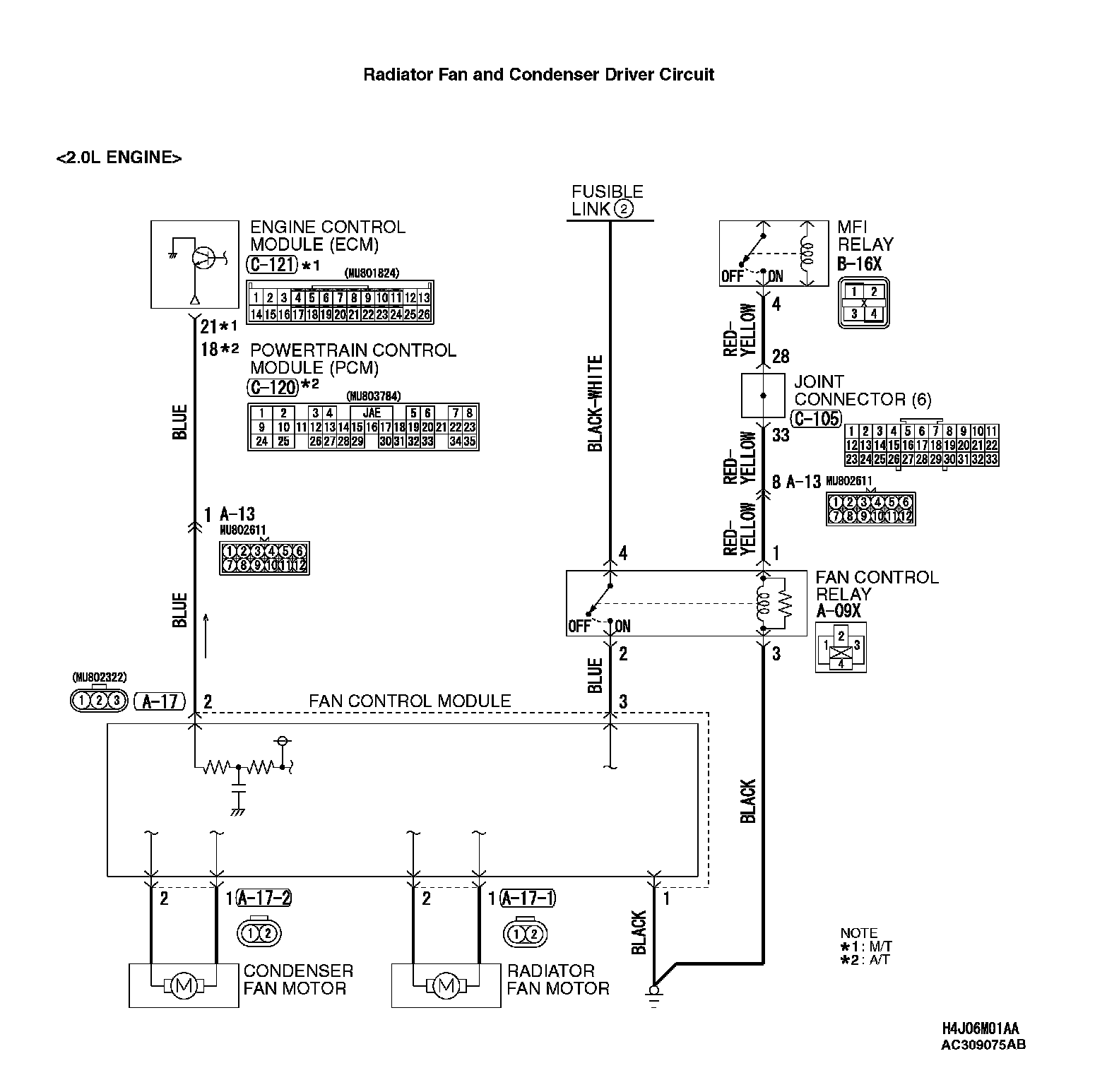

CIRCUIT OPERATION
^ The fan control module is powered from fusible link number 2.
^ The ECM [M/T] or PCM [A/T] judges the required revolution speed of radiator fan motor and condenser fan motor using the input signals transmitted from A/C switch, automatic compressor controller, vehicle speed sensor and engine coolant temperature sensor. The ECM [M/T] or PCM [A/T] activates the fan control module to drive the radiator fan motor and condenser fan motor.
TECHNICAL DESCRIPTION
^ The cause could be a malfunction of the fan control module power supply or ground circuit.
^ The cause could also be a malfunction of the fan control module or the ECM [M/T] or PCM [A/T].
TROUBLESHOOTING HINTS
^ Malfunction of fusible link
^ Malfunction of fan control relay
^ Malfunction of MFI relay
^ Malfunction of radiator fan motor
^ Malfunction of condenser fan motor
^ Malfunction of fan control module
^ Malfunction of ECM [M/T] or PCM [A/T]
^ Damaged wiring harness or connector
DIAGNOSIS
Required Special Tool:
^ MB991223: Harness Set

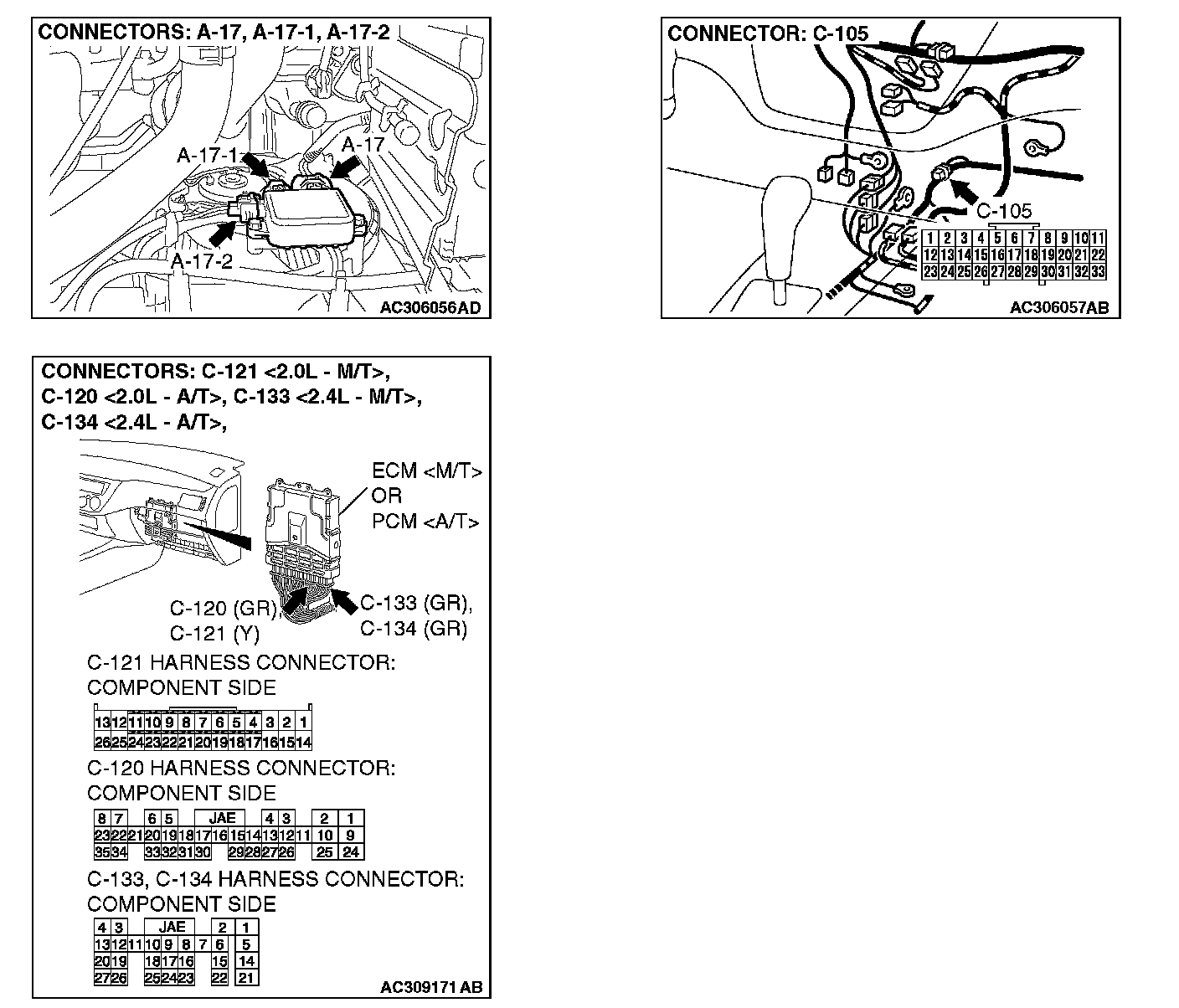

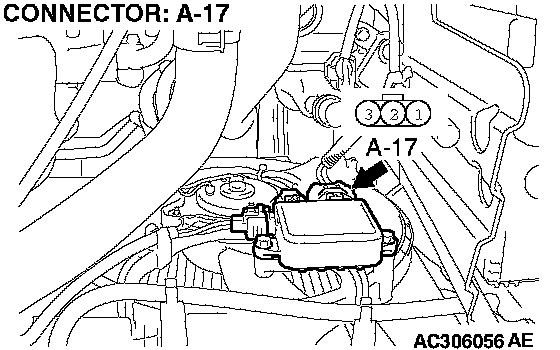

STEP 1. Check the circuit at fan control module connector A-17 (terminal 3).

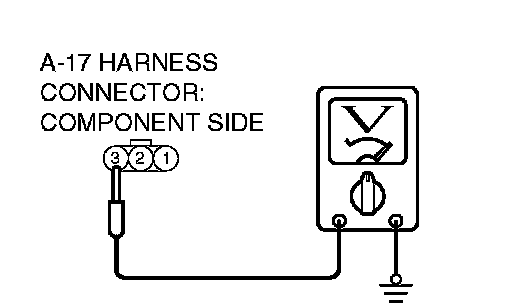

1. Disconnect fan control module connector A-17, and measure at the harness side connector.
2. Measure the voltage between terminal number 3 and ground.
^ When the ignition switch is turned to the ON position, voltage should measure battery positive voltage.
Q: Is there voltage battery positive voltage when the ignition switch is turned to the ON position?
YES: Go to Step 8.
NO: Go to Step 2.
STEP 2. Check the fan control relay.
Q: Is the fan control relay in good condition?
YES: Go to Step 3.
NO: . Replace it, then go to Step 1.
STEP 3. Check the MFI relay.
Q: Is the MFI relay in good condition?
YES: Go to Step 4.
NO: Replace it, then go to Step 1.

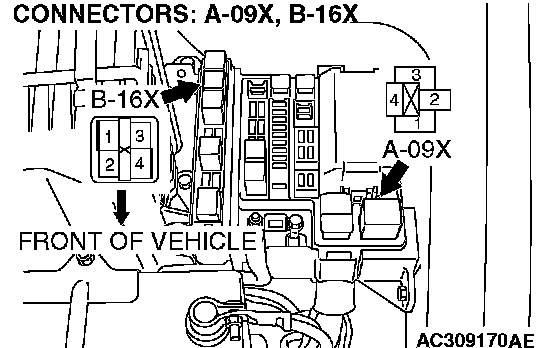

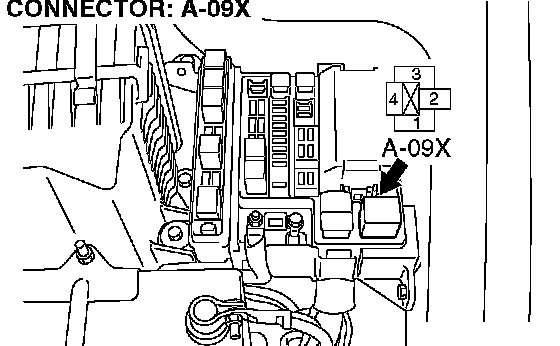

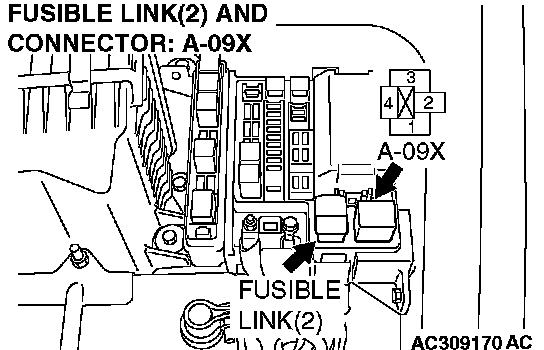

STEP 4. Check for harness damage between fusible link number 2 and fan control relay connector A-09X (terminal 4).
Q: Are the harness wires between fusible link number 2 and fan control relay connector A-09X damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 5.

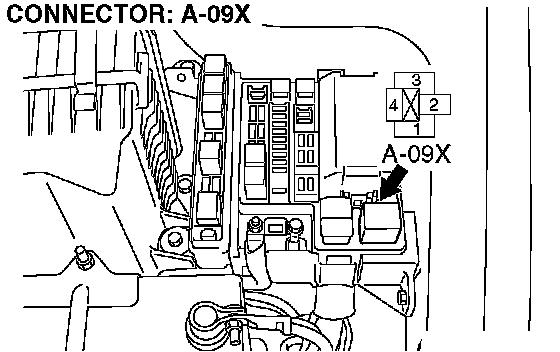

STEP 5. Check for harness damage between fan control relay connector A-09X (terminal 2) and fan control module connector A-17 (terminal 3).
Q: Are the harness wires between fan control relay connector A-09X (terminal 2) and fan control module connector A-17 (terminal 3) damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 6.

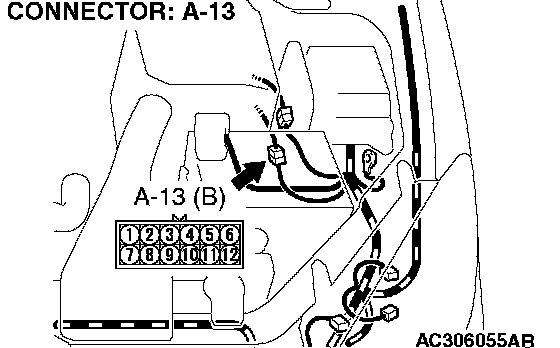

STEP 6. Check for harness damage between MFI relay connector B-16X and fan control relay connector A-09X.

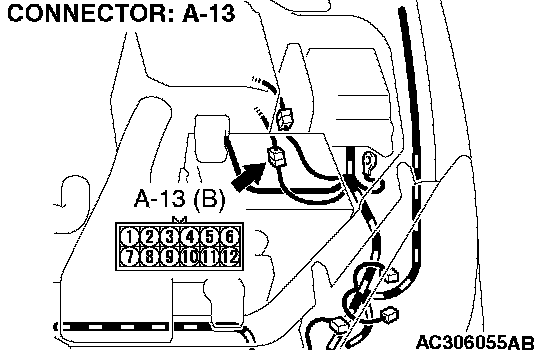

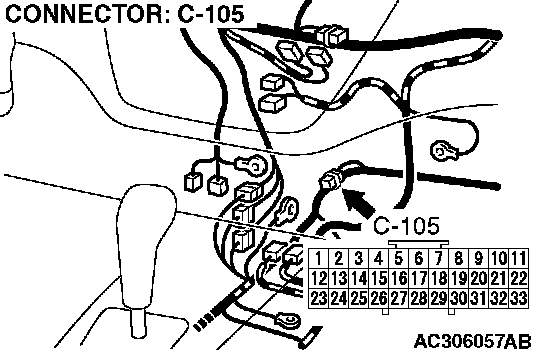

NOTE: After inspecting intermediate connector A-13 terminal 8 and joint connector C-105 terminal 28, 33 inspect the wires. If intermediate connector A-13 and joint connector C-105 are damaged, repair or replace them.
Q: Are the harness wires between MFI relay connector B-16X (terminal 4) and fan control relay connector A-09X (terminal 1) damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 7.
STEP 7. Check for harness damage between fan control relay connector A-09X (terminal 3) and ground.
Q: Are the harness wires between fan control relay connector A-09X (terminal 3) and ground damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 8.

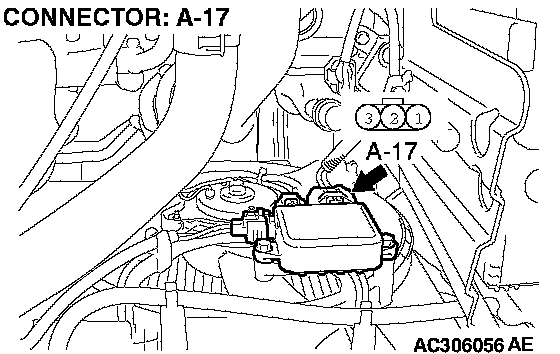

STEP 8. Check the circuit at fan control module connector A-17 (terminal 1).

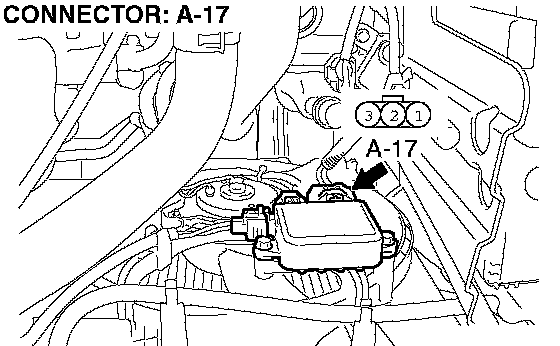

1. Disconnect fan control module connector A-17 and measure at the harness side connector.

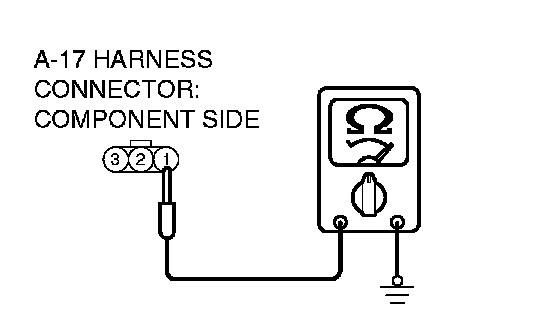

2. Measure the resistance between terminal number 1 and ground.
Q: Is the resistance less than 2 ohms?
YES: Go to Step 10.
NO: Go to Step 9.

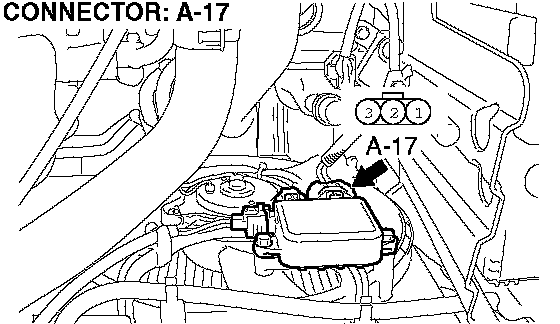

STEP 9. Check the harness wire between fan control module connector A-17 and ground.
Q: Are the harness wires between fan control module connector A-17 and ground damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 10.

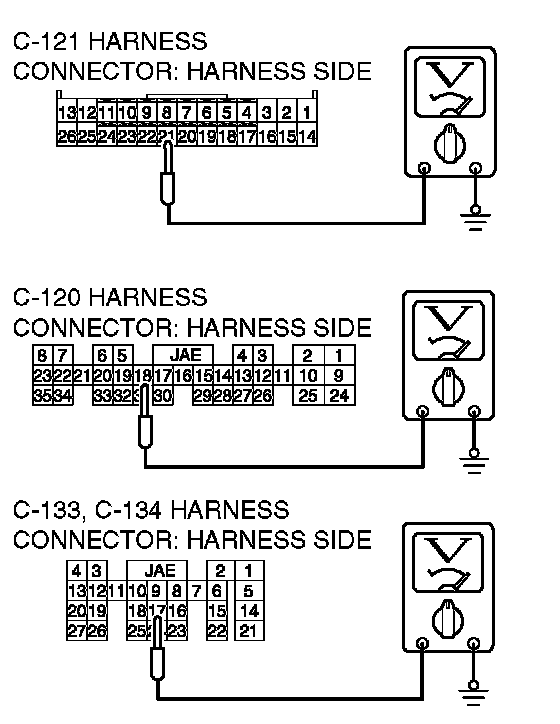

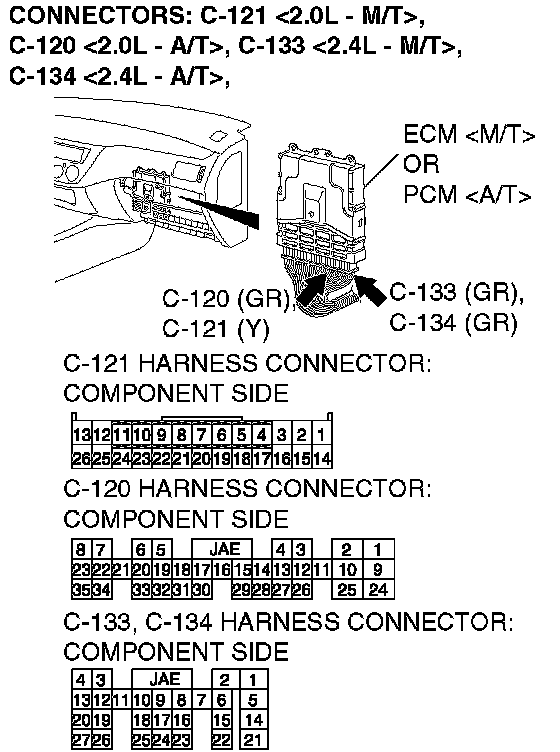

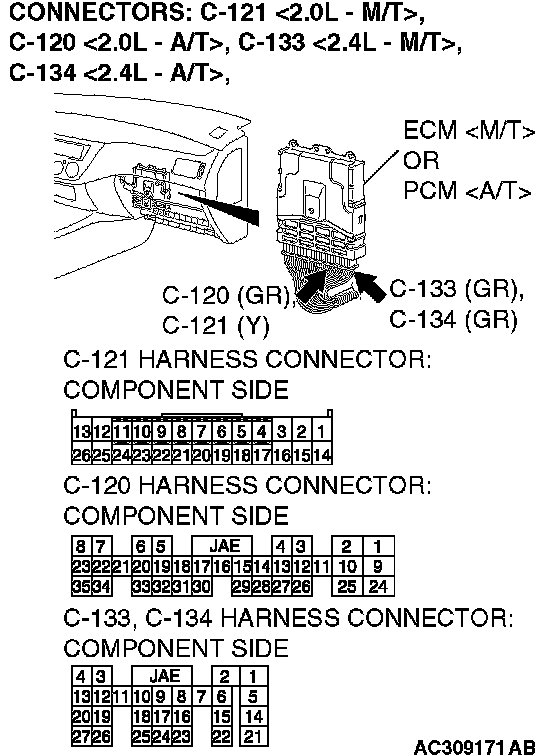

STEP 10. Measure the output circuit voltage at ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T> by backprobing.
1. Do not disconnect ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T>.
2. Start the engine and allow it to idle.
3. Measure the voltage between terminal number 21 <2.0L-M/T>, 18 <2.0L-A/T> or 17 <2.4L> and ground by backprobing.
Q: Is the voltage 0.7 volt or more when the radiator fan is operating?
YES: Go to Step 12.
NO: Go to Step 11.
STEP 11. Check the harness wire between ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T> and fan control module connector A-17.
NOTE: If intermediate connector A-13 terminal 1 is damaged, repair or replace it.
Q: Are the harness wires between ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T> and fan control module connector A-17 (terminal 2) damaged?
YES: Repair or replace them, then go to Step 13.
NO: Go to Step 12.
STEP 12. Check the fan control module at ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T>.
1. Disconnect ECM connector C-121 (terminal 21) <2.0L-M/T>, C-133 (terminal 17) <2.4L-M/T> or PCM connector C-120 (terminal 18) <2.0L-A/T>, C-134 (terminal 17) <2.4L-A/T>.
2. Turn the ignition switch to the ON position.
Q: Do the radiator fan motor and condenser fan motor operate?
YES: Replace the ECM [M/T] or PCM [A/T]. Then go to Step 13.
NO: Replace the fan control module. Then go to Step 13.
STEP 13. Check the symptoms.
Q: Do the radiator fan and condenser fan operate correctly?
YES: The procedure is complete.
NO: Return to Step 1.
