Radiator Cooling Fan: Testing and Inspection

RADIATOR FAN MOTOR CHECK





1. Remove the radiator fan motor connector.

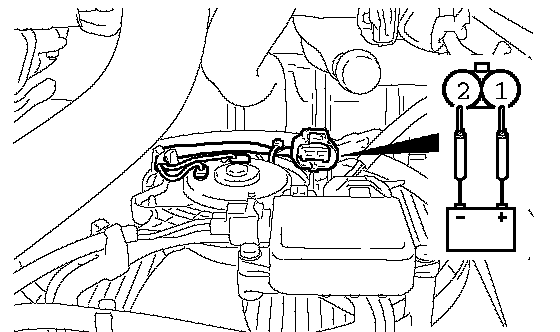

2. Check to see that the fan motor of the radiator turns when applying battery power between the connector terminals of the radiator fan motor. Also check to see that there is no abnormal sound coming from the radiator fan motor at this time.
3. If the radiator fan motor is defective, replace it.
