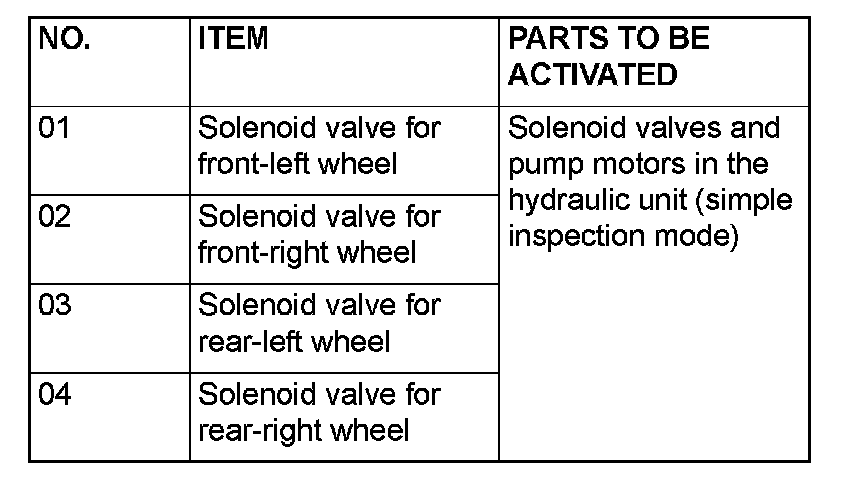

Pinout Values and Diagnostic Parameters
CHECK AT ABS-ECUTERMINAL VOLTAGE CHECK CHART

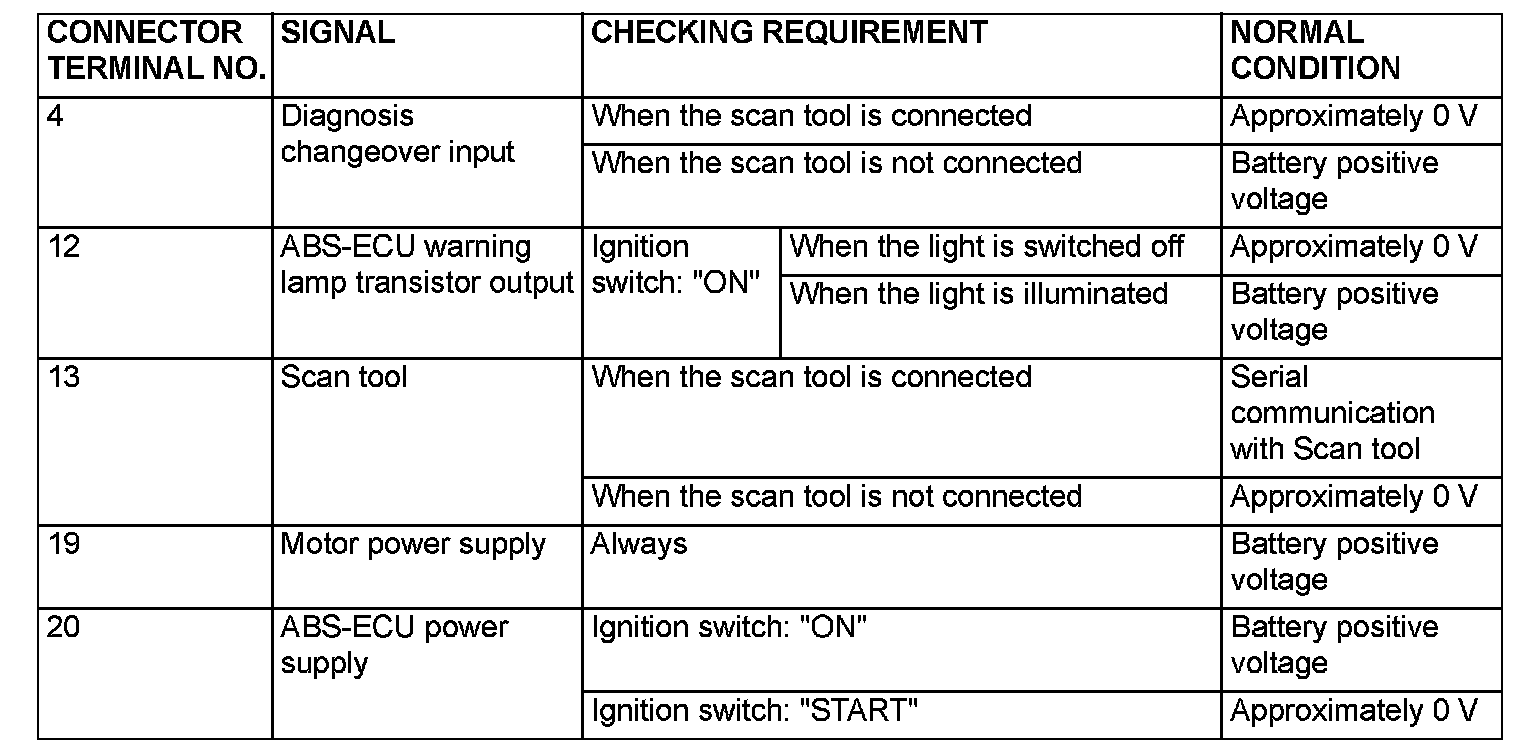

1. Measure the voltages between terminals (2) and (18) (ground terminals) and each respective terminal.
2. The terminal layouts are shown in the illustrations.
NOTE: Do not measure terminal voltage for approximately three seconds after the ignition switch is turned ON. The ABS-ECU performs the initial check during that period.
RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS
1. Turn the ignition switch to the LOCK (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.

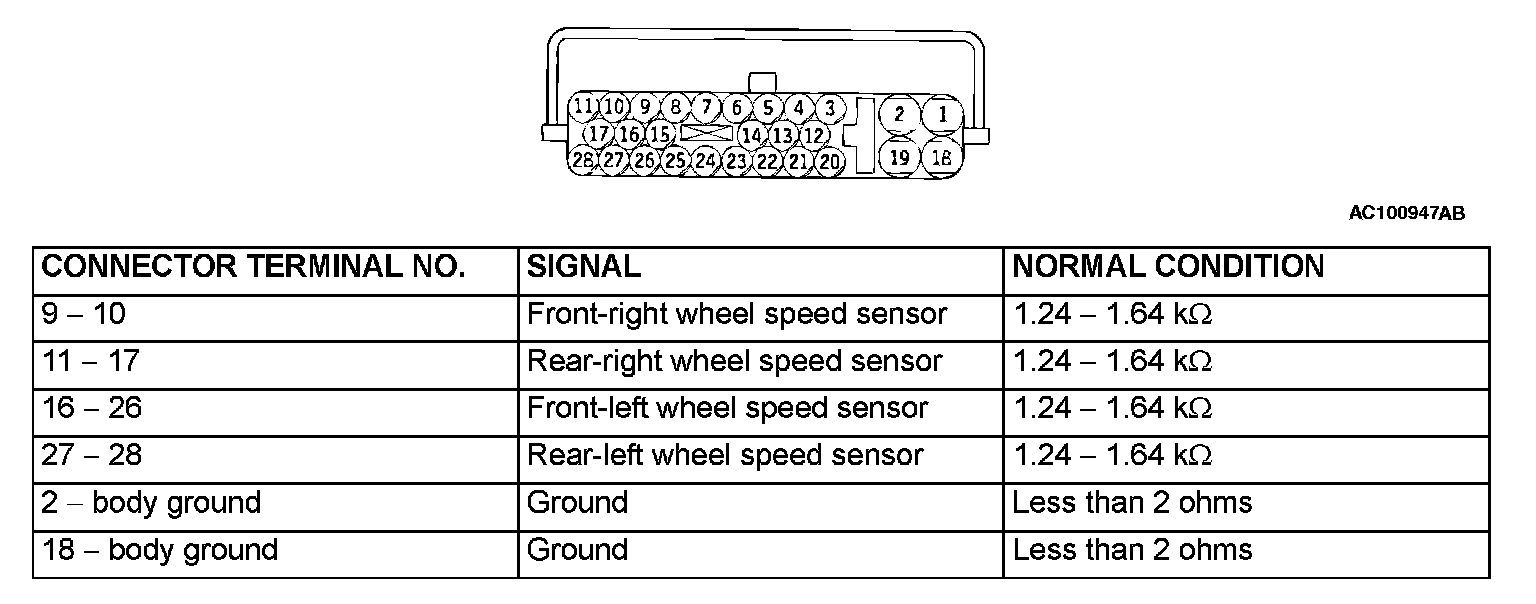

2. Check the resistance and continuity between the terminals indicated in the table.
3. The terminal layout is shown in the illustration.
