Component Tests and General Diagnostics

INSPECTION

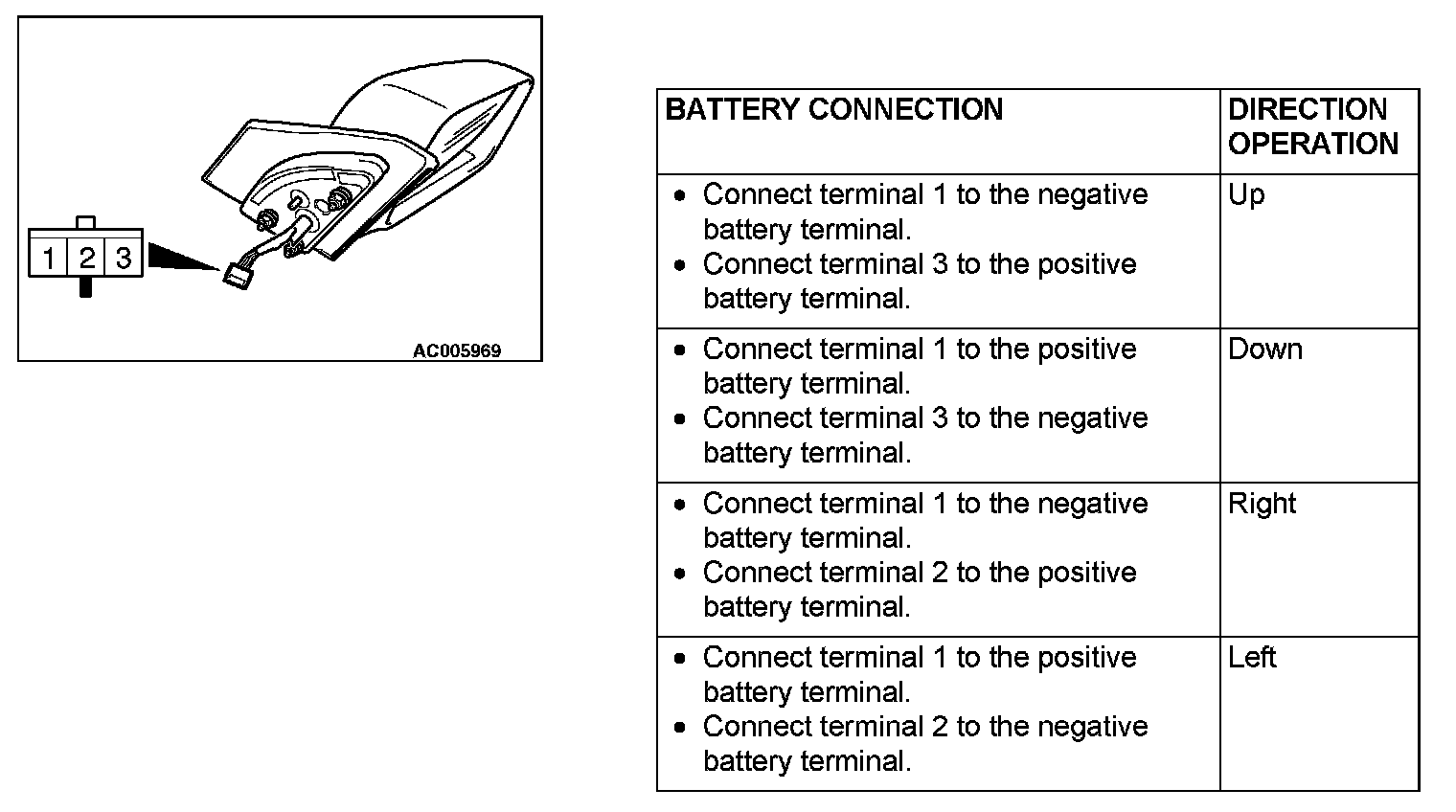

ELECTRIC REMOTE CONTROL MIRROR OPERATION CHECK [VEHICLES WITHOUT HEATED DOOR MIRROR]






Check that the mirror moves as described in the table when each terminal is connected to the battery.

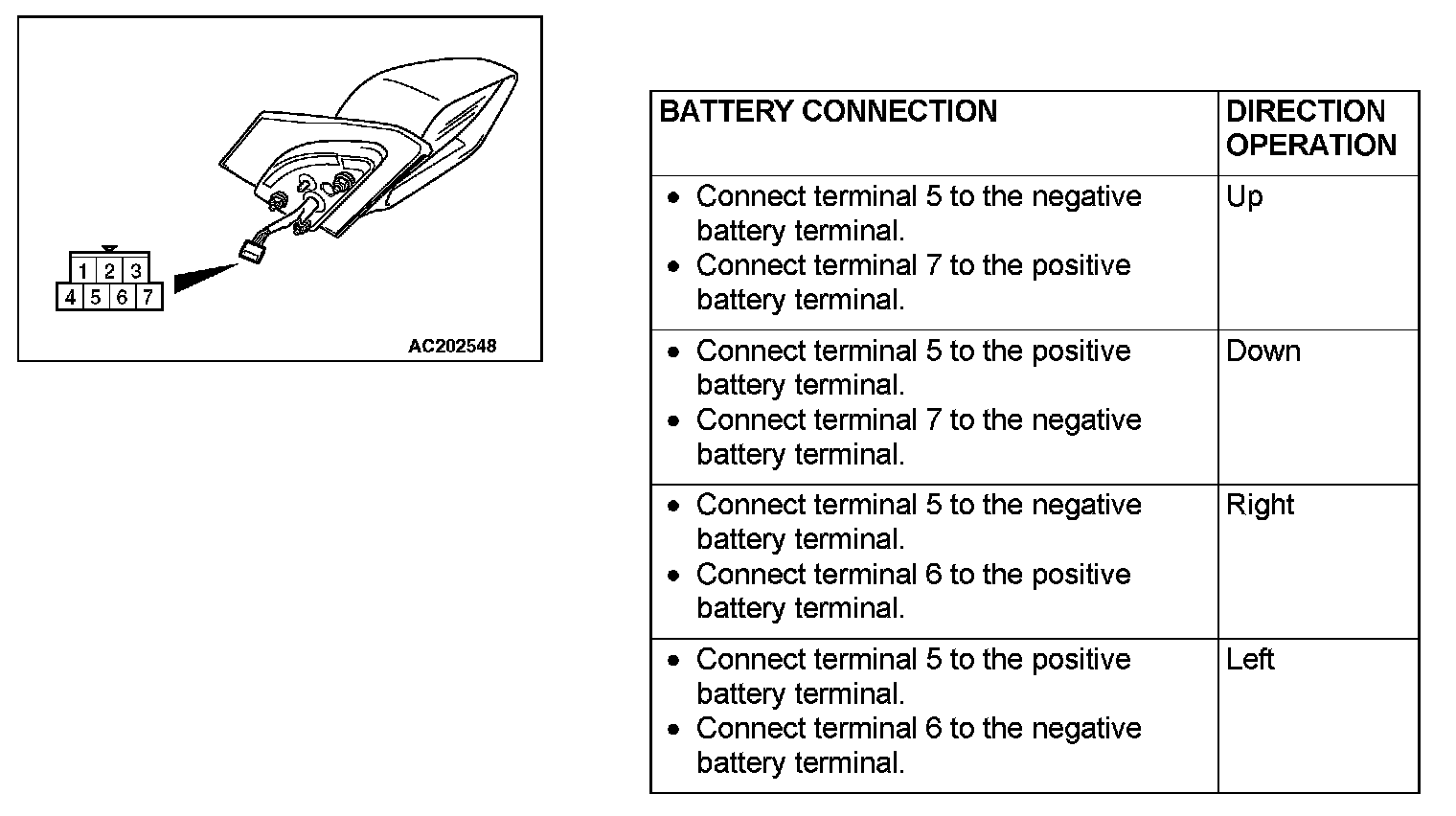

ELECTRIC REMOTE CONTROL MIRROR OPERATION CHECK [VEHICLES WITH HEATED DOOR MIRROR]






Check that the mirror moves as described in the table when each terminal is connected to the battery.

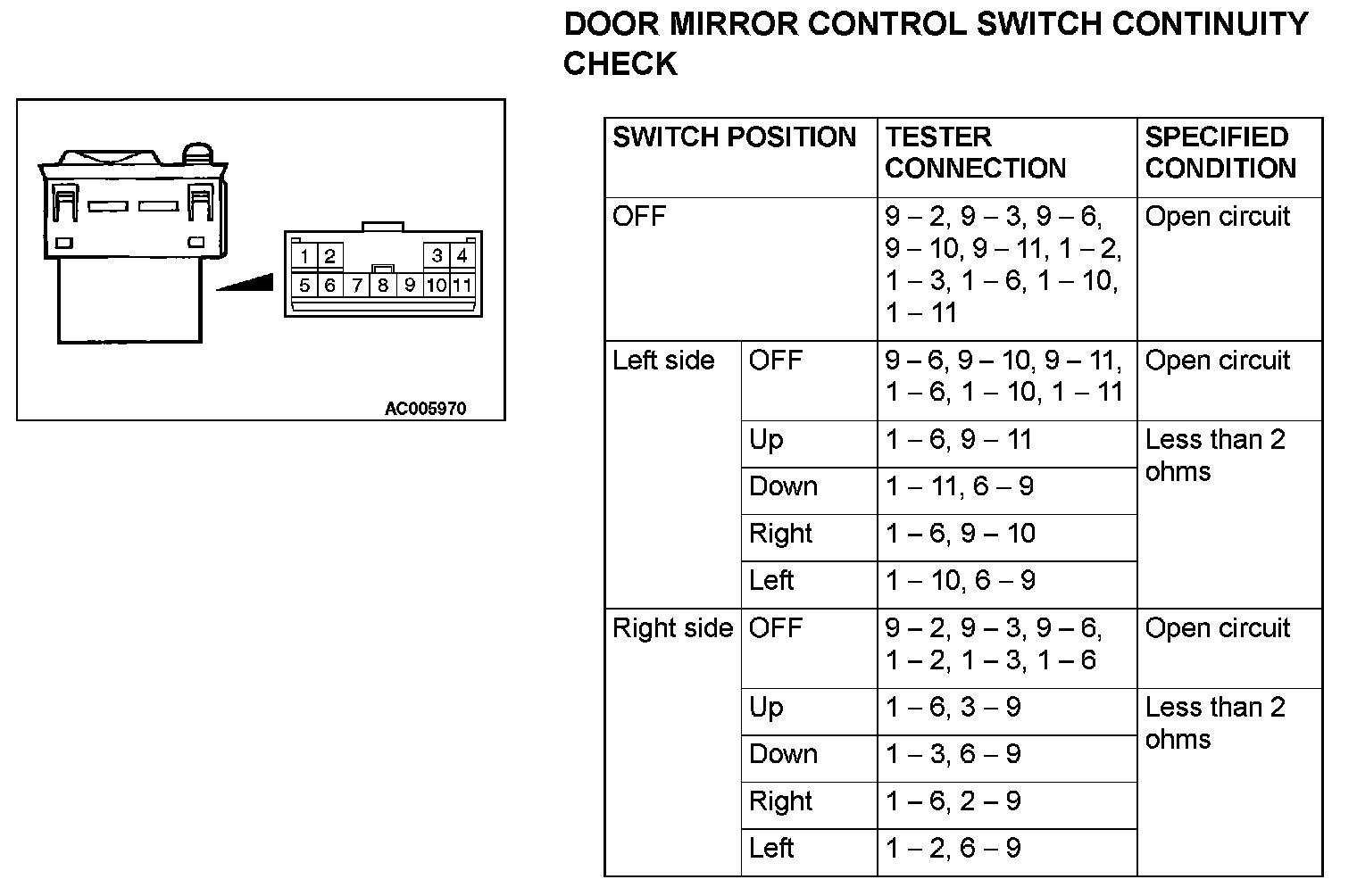

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK






HEATED DOOR MIRROR CHECK

CAUTION: When relocating the car between locations with extremely different temperatures (warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.

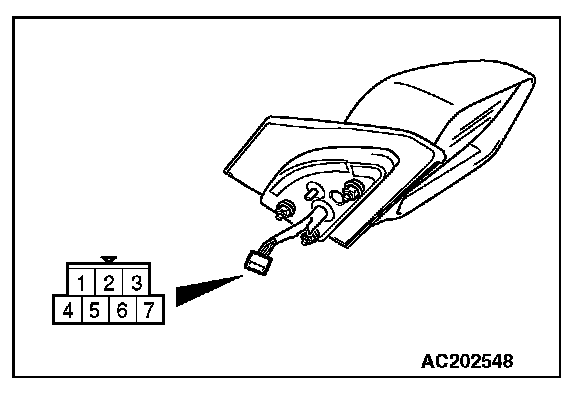

The resistance value between door mirror connector terminals 1 and 4 should meet the standard value with the ambient temperature at a steady 25° C (77° F).

Standard value: 5.9 - 7.8 ohm.
