Front Floor Console Assembly
Front Floor Console Assembly
FRONT FLOOR CONSOLE ASSEMBLY
REMOVAL AND INSTALLATION

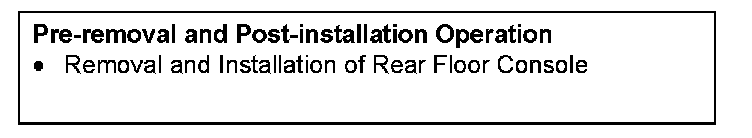

Pre-removal & Post Installation Operation:

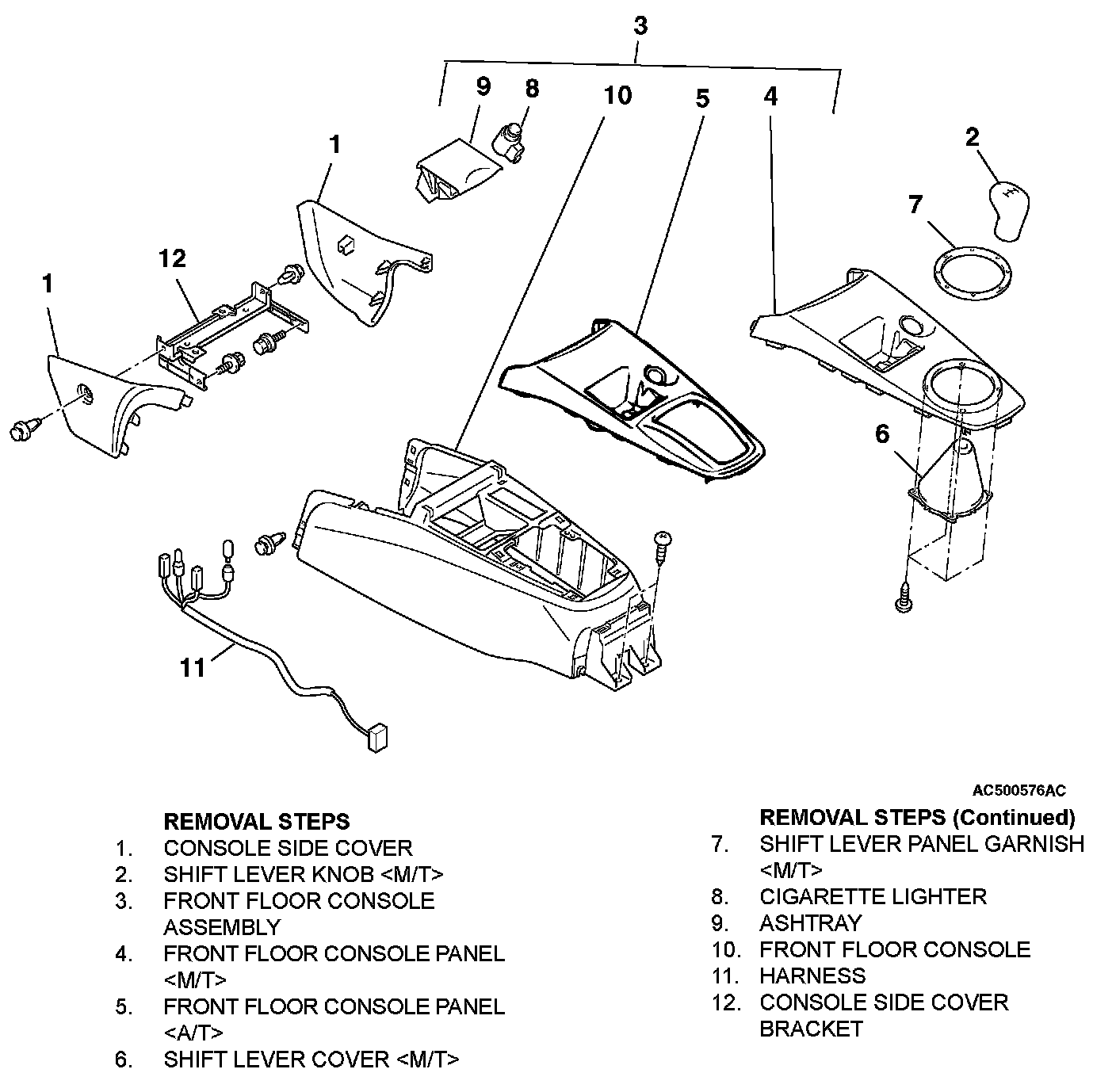

Removal Steps 1-12:
