Overhaul

DISASSEMBLY AND ASSEMBLY

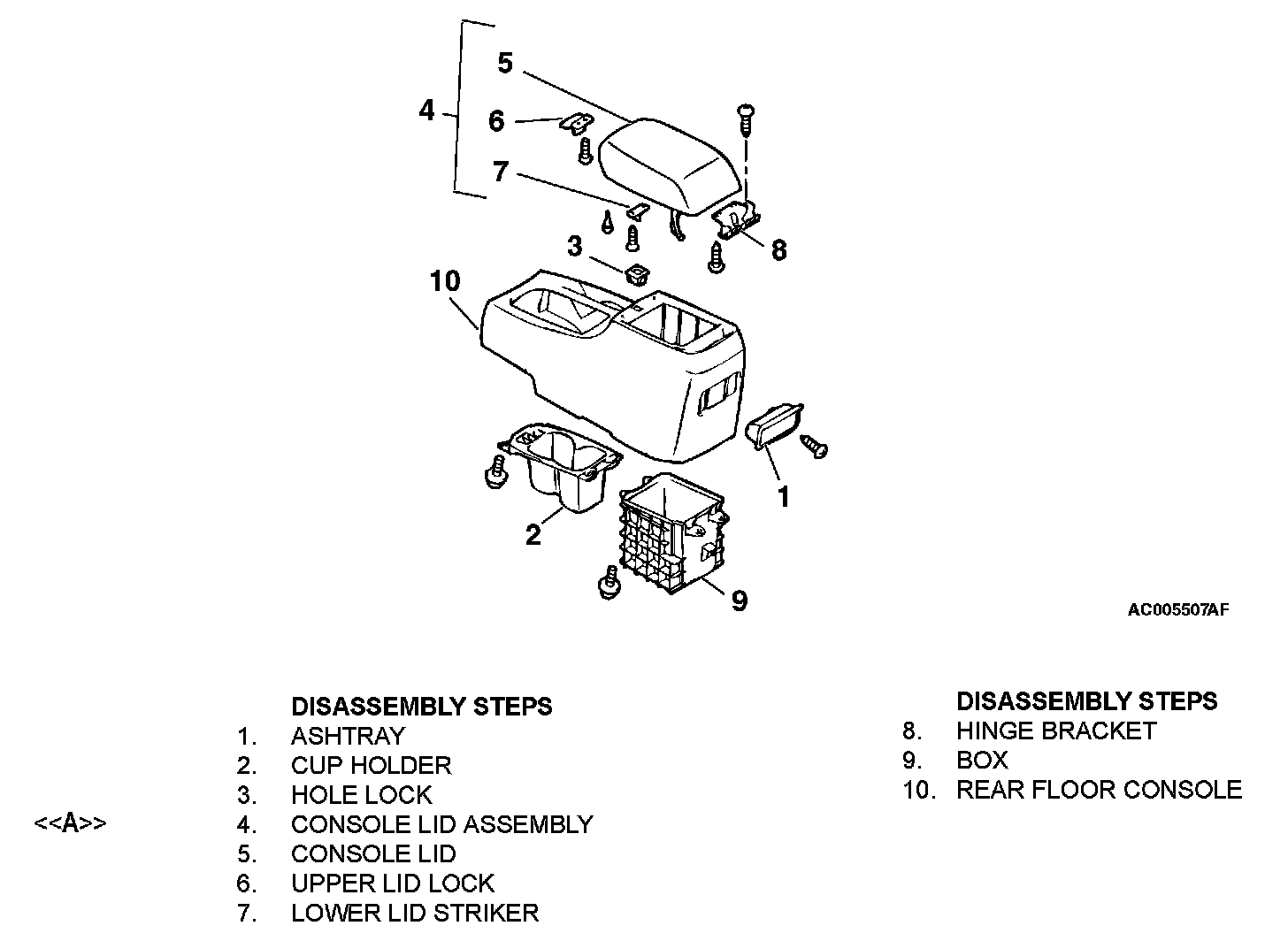

Disassembly Steps 1-10:

Required Special Tool:
- MB990784: Ornament Remover

DISASSEMBLY SERVICE POINT

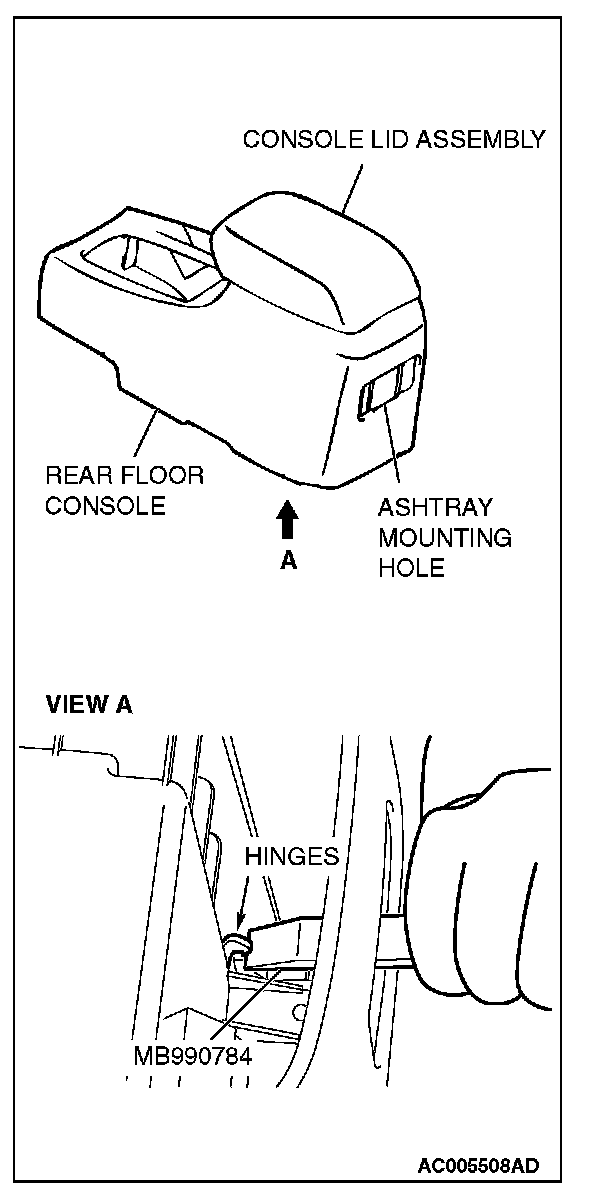

[[A]] CONSOLE LID ASSEMBLY REMOVAL






Insert the special tool MB990784 into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.
