Sunroof

SUNROOF

GENERAL DESCRIPTION CONCERNING THE SUNROOF

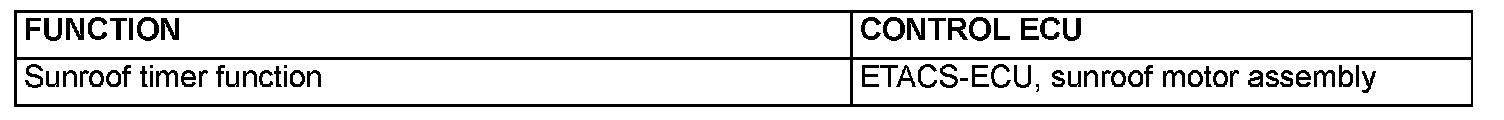

The given ECUs affect the functions and control of the sunroof.

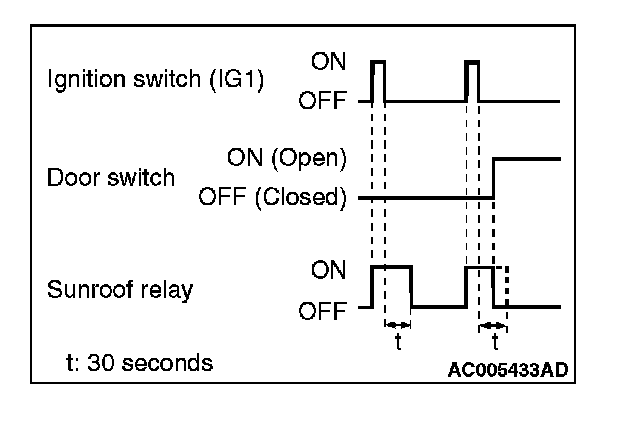

Sunroof timer function




After the ignition switch is turned OFF, the system continues to turn ON the sunroof relay for about 30 seconds and to enable the opening and closing of the sunroof by the sunroof switch. When the driver's or front passenger's door is opened while the timer is in operation, the sunroof relay will be turned OFF and the sunroof timer function will be finished. As for the sunroof functions, refer to Sunroof.
