Home >> Mitsubishi >> 2006 >> Lancer L4-2.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data List Reference Table

Data List Reference Table

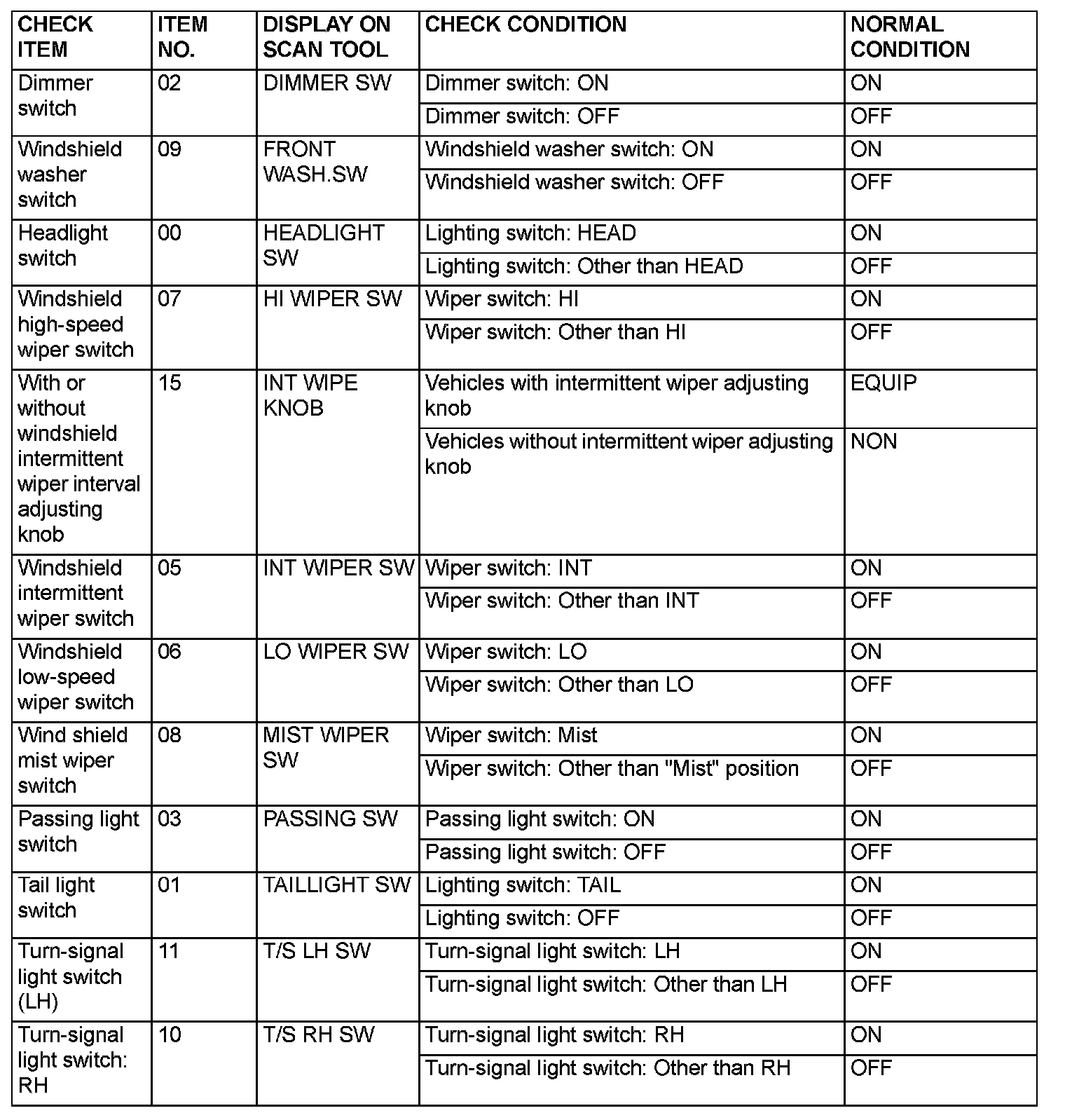

Data List Reference table - Column ECU:

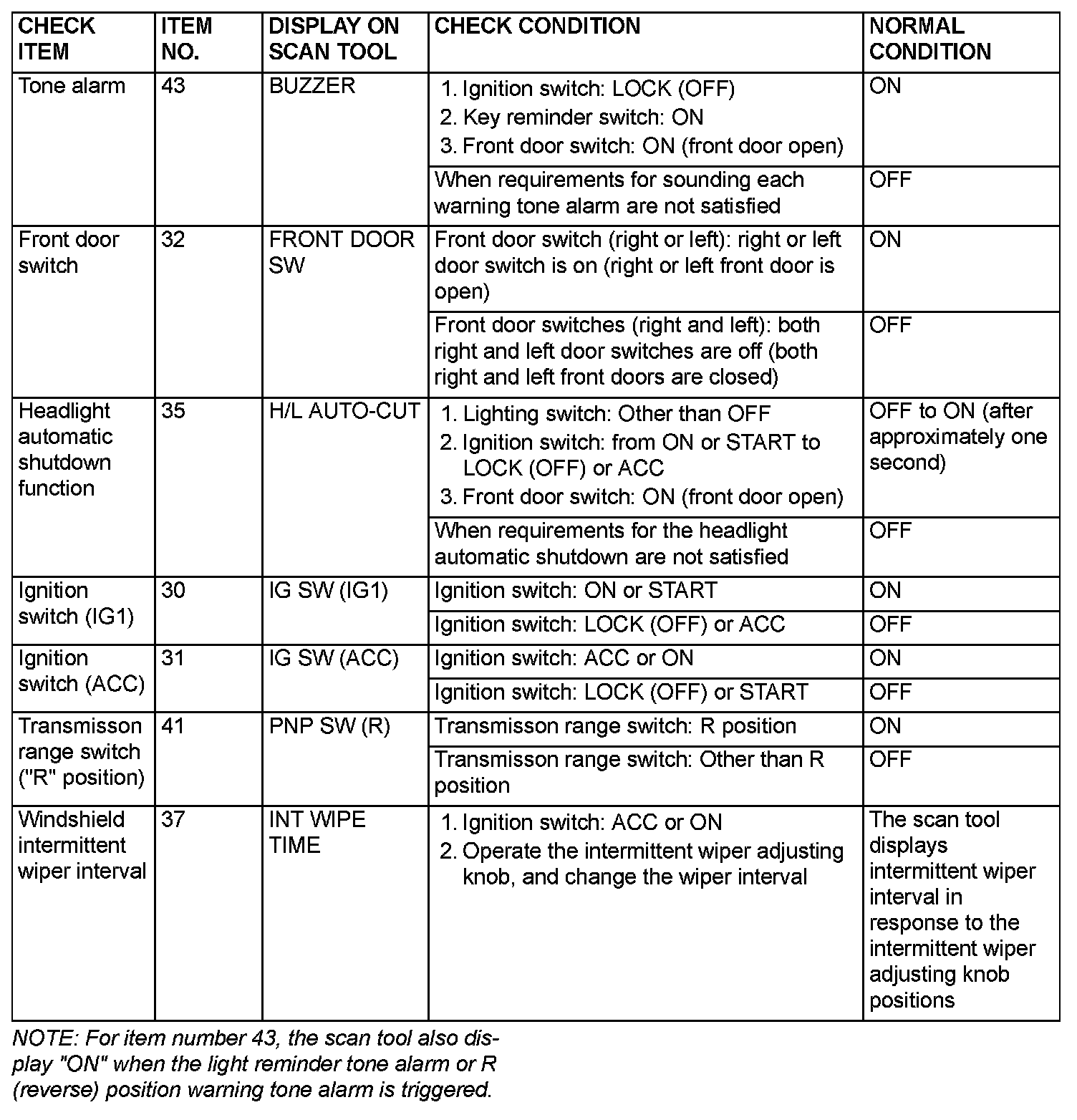

Data List Reference table - ETACS ECU:

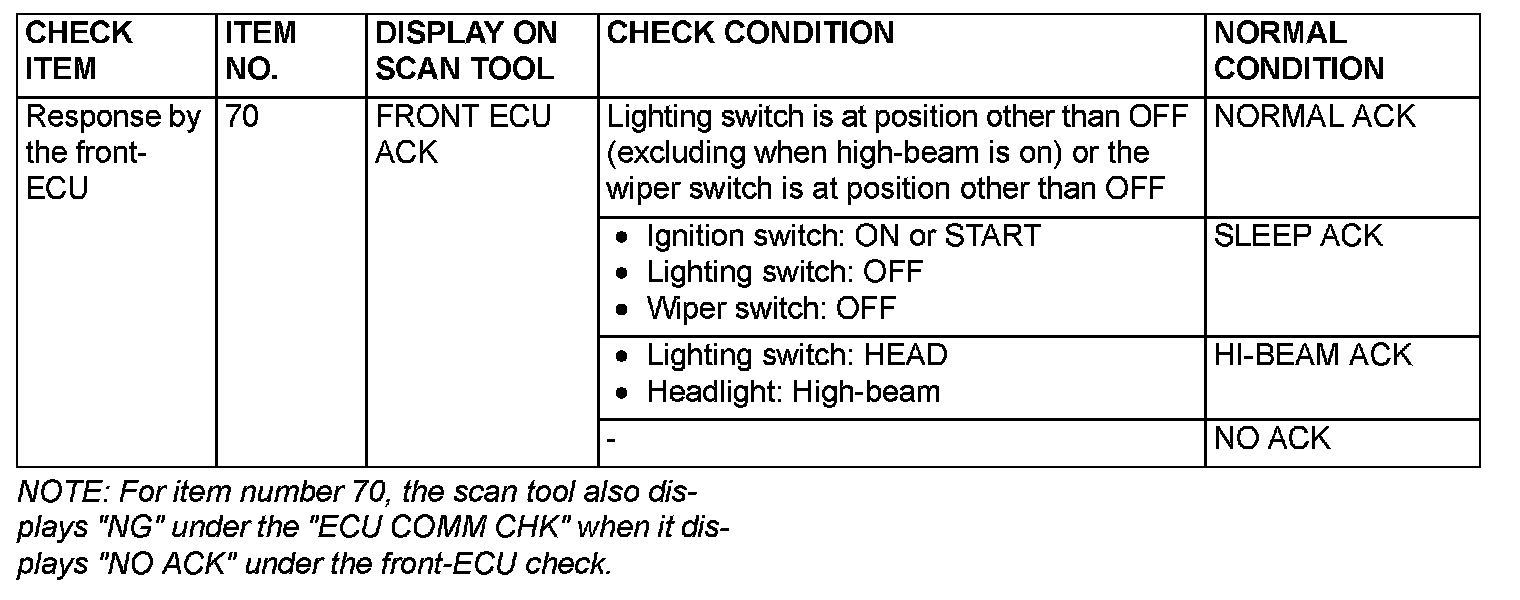

Data List Reference table - Front ECU:
