Rear Wiper Motor Check

REAR WIPER MOTOR CHECK






Inspect the rear wiper motor operation by removing the harness connector with the motor attached to the vehicle.

WIPER MOTOR OPERATION

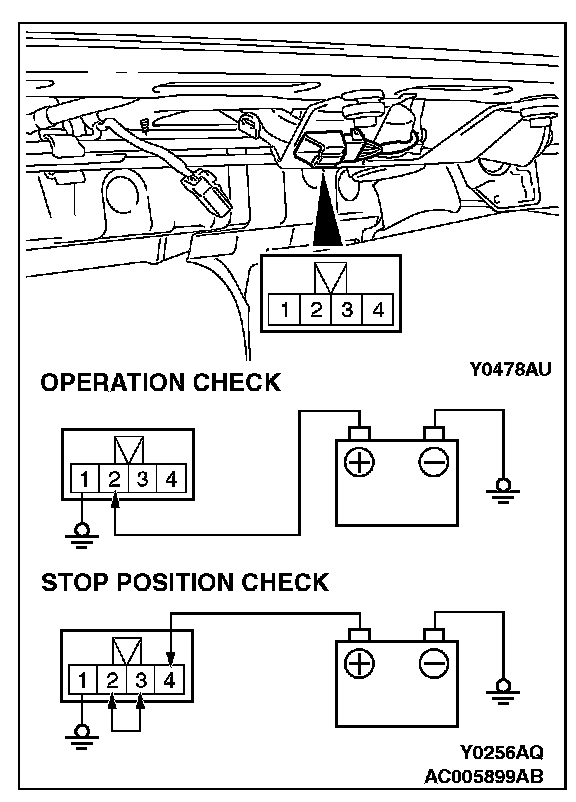

Connect the battery to the rear wiper motor as shown in the illustration and check the motor operation.


WIPER MOTOR AT STOP POSITION OPERATION
1. Run the wiper motor disconnect the battery and stop the motor.
2. Reconnect the battery as shown in the illustration and confirm that after the motor starts turning it stops at the automatic stop position.
