Windshield Washer Fluid Ejection Check

WINDSHIELD WASHER FLUID EJECTION CHECK

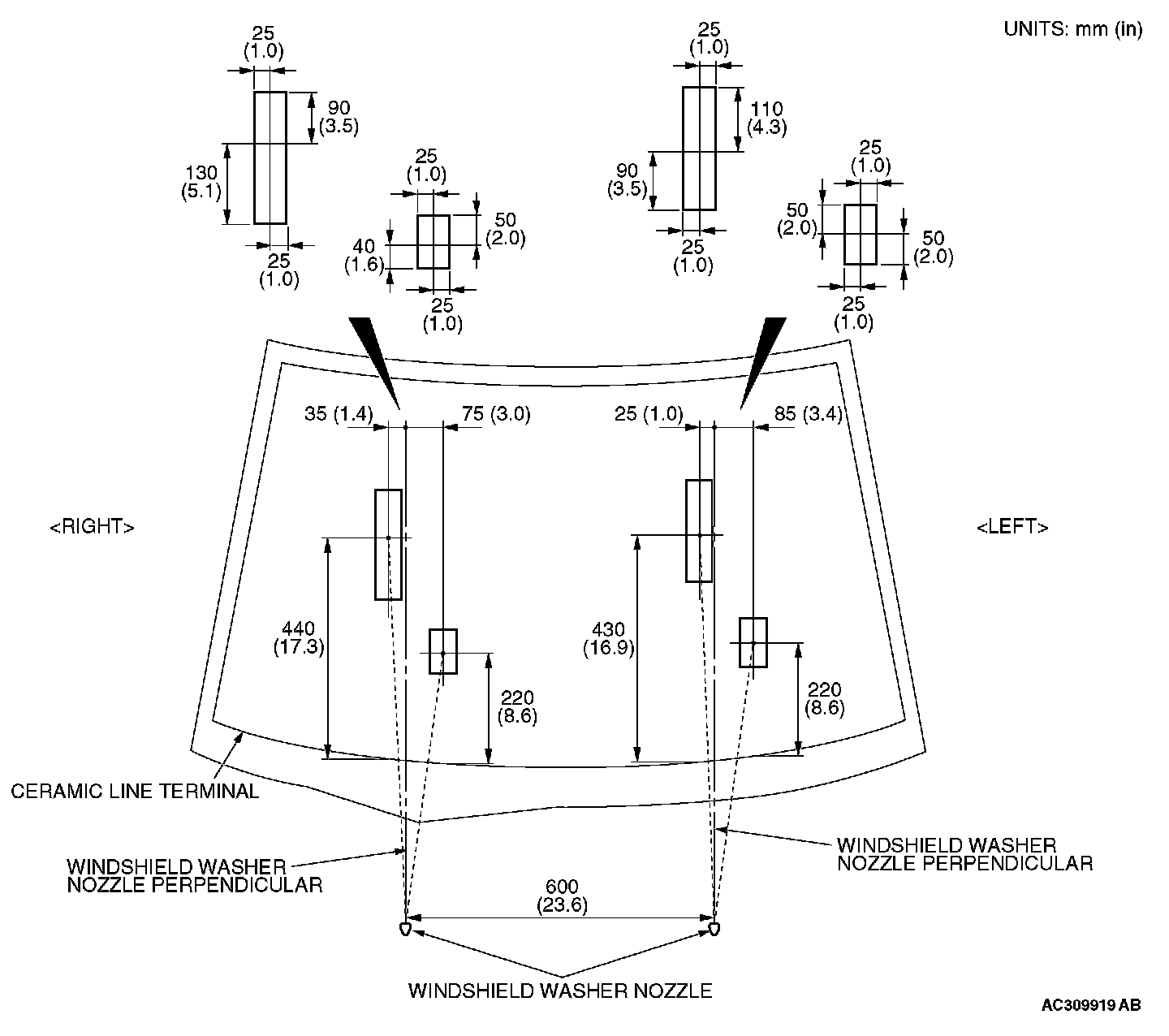

Move the nozzle to adjust the position so that the spray is in the area shown in the illustration.
