Windshield Washer Pump: Service and Repair

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

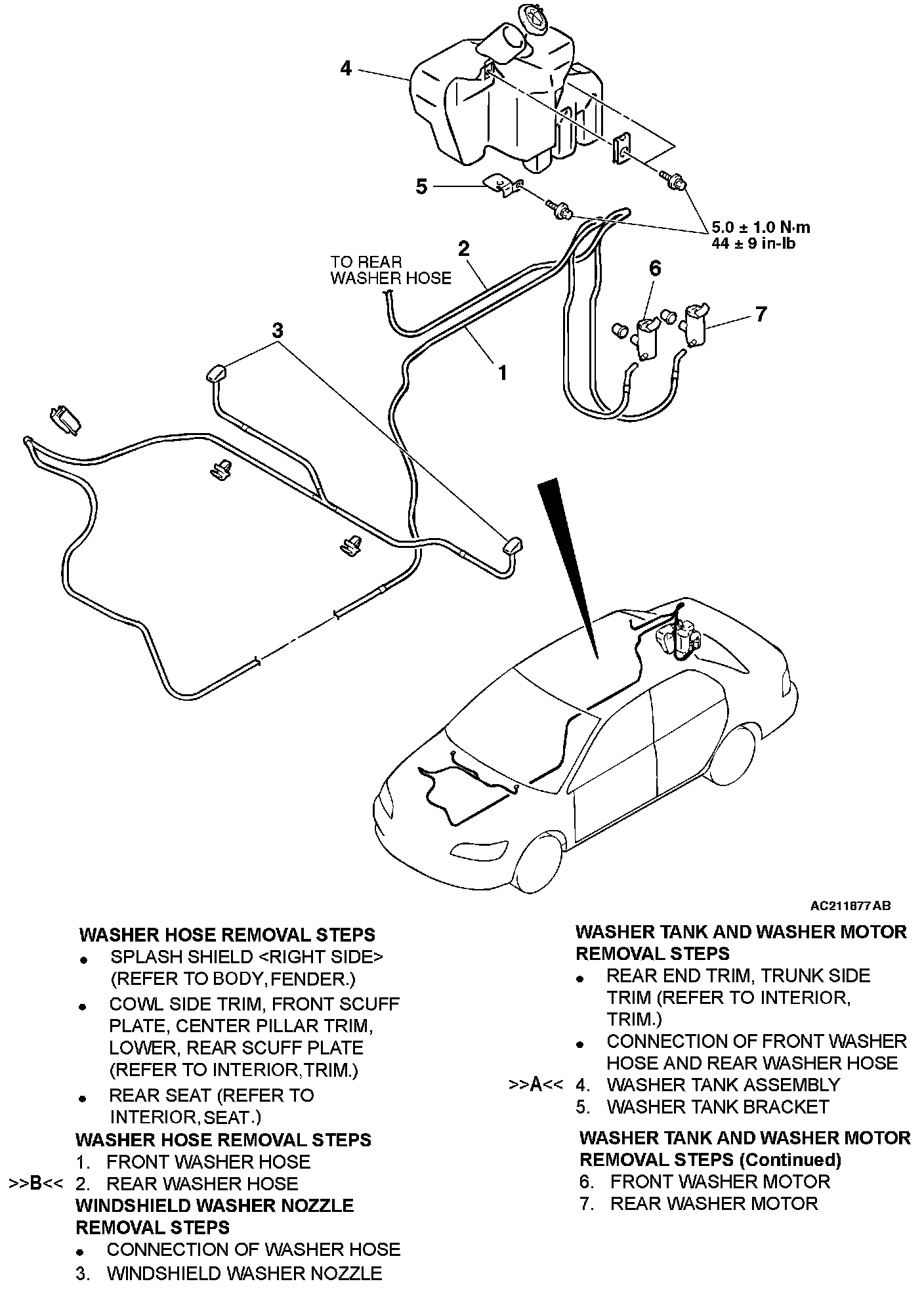

Removal Steps 1-7:

NOTE: For removal and installation of the wiper and washer switch, refer to Chassis Electrical, Column switch.

INSTALLATION SERVICE POINTS

]]A[[ WASHER TANK ASSEMBLY INSTALLATION

CAUTION: Take care not to confuse the two washer motor connectors when connecting them to the washer motor. Connect the green connector to the rear washer motor; and the milky white connector to the front washer motor; respectively.

]]B[[ REAR WASHER HOSE INSTALLATION

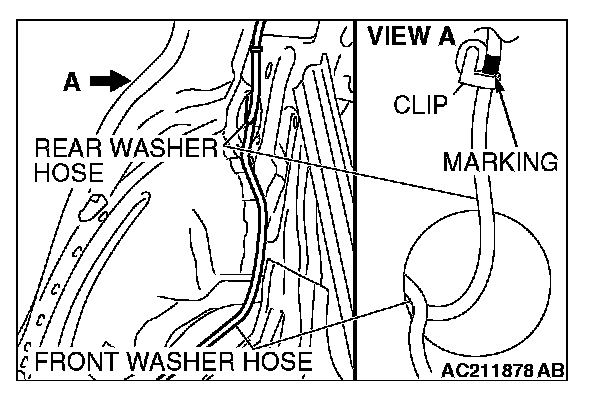

Align the marking on the rear washer hose with the clip as shown.
