Front Door Window Regulator: Service and Repair

WINDOW REGULATOR ASSEMBLY/POWER WINDOW REGULATOR MOTOR ASSEMBLY:

REMOVAL SERVICE POINTS

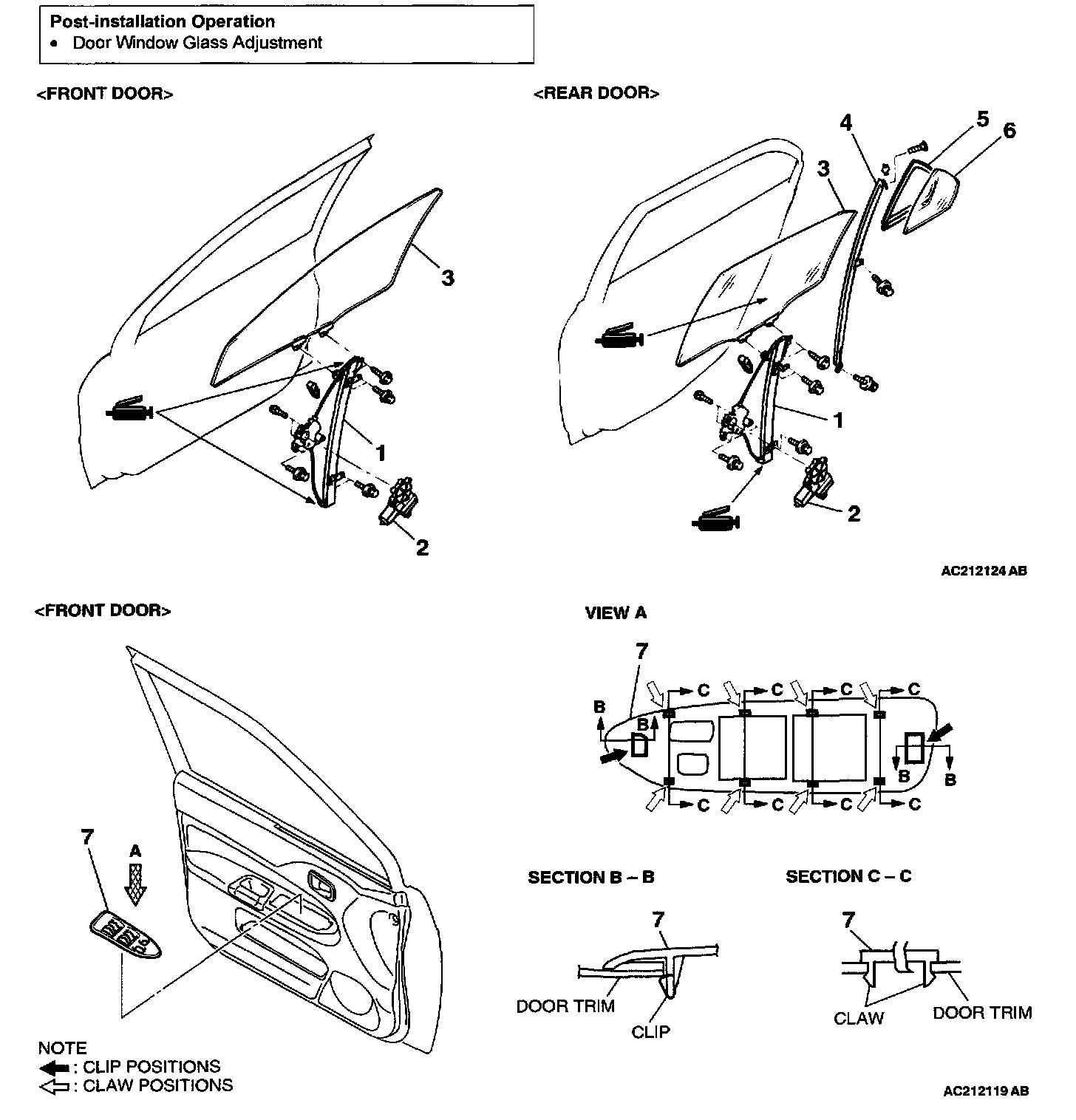

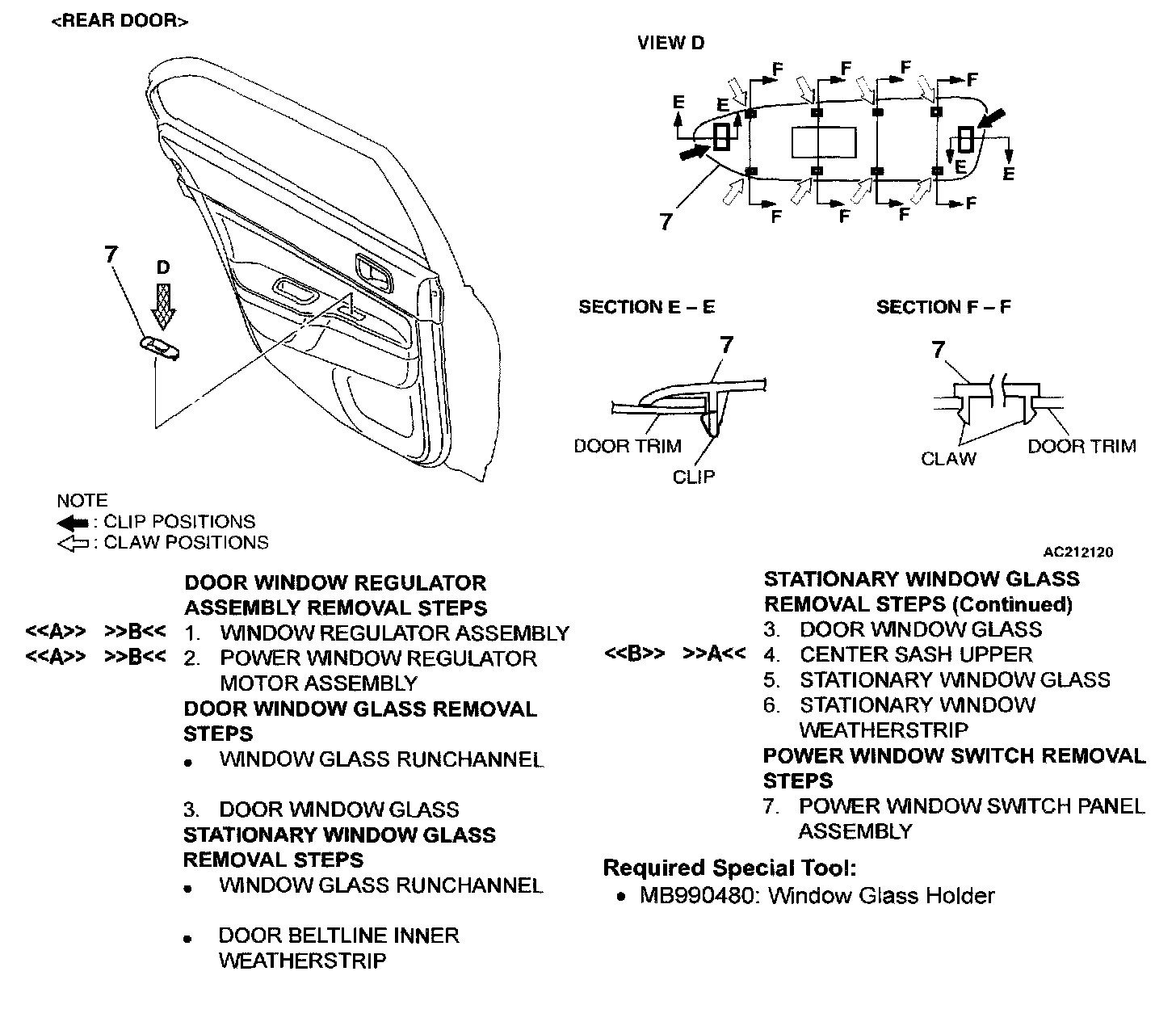

[[A]] WINDOW REGULATOR ASSEMBLY/POWER WINDOW REGULATOR MOTOR ASSEMBLY REMOVAL
1. Remove the door window glass installation bolts.

CAUTION: If film is adhered to the door window glass, attach special tool MB990480 to the outside of the glass to prevent the film from peeling off.

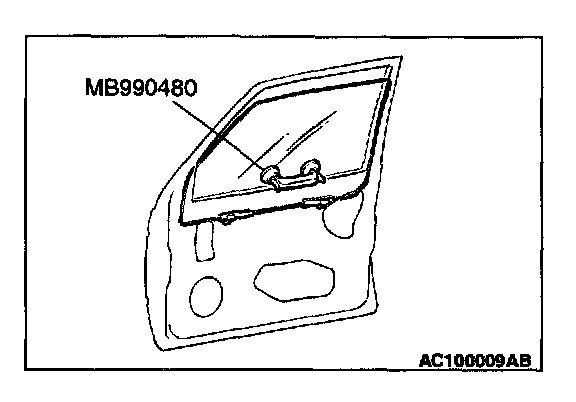

2. Lift the door window glass, and attach special tool MB990480 to the glass as shown to prevent the glass from falling.
3. Remove the window regulator assembly and power window motor assembly.

[[B]] CENTER SASH UPPER REMOVAL
1. Remove the door outer opening weatherstrip from the center sash upper only.
2. Remove the center sash upper mounting screws, and then remove the center sash upper from the door panel.

INSTALLATION SERVICE POINTS

]]A[[ CENTER SASH UPPER INSTALLATION
Securely insert the center sash upper into the window rear sash (door).

]]B[[ WINDOW REGULATOR ASSEMBLY/POWER WINDOW REGULATOR MOTOR ASSEMBLY INSTALLATION

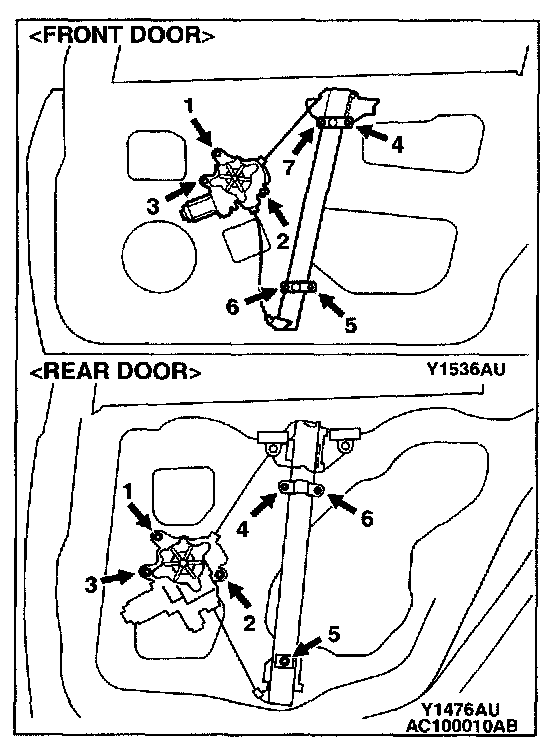

When installing the window regulator assembly, tighten the bolts to the specified torque in the order shown.
