How to Perform Actuator Test

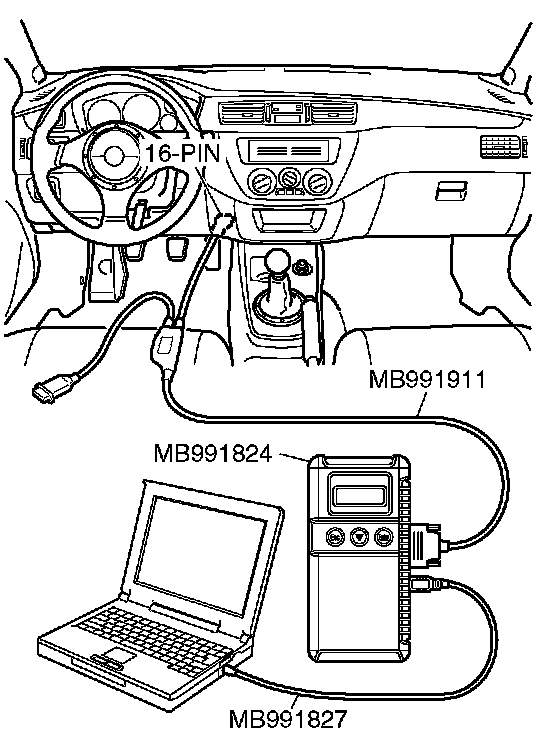

HOW TO PERFORM ACTUATOR TESTRequired Special Tools:
^ MB991958: Scan Tool (M.U.T-III Sub Assembly)
^ MB991824: V.C.I.
^ MB991827: M.U.T.-III USB Cable
^ MB991911: M.U.T.-III Main Harness B
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the LOCK (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the ON position.
3. Select Interactive Diagnosis from the start-up screen.
4. Select System select.
5. Choose AYC/ACD from the POWER TRAIN tab.
6. Select MITSUBISHI.
7. Select Actuator Test.
8. Choose an appropriate item and select the OK button.
