Actuator Test Reference Table

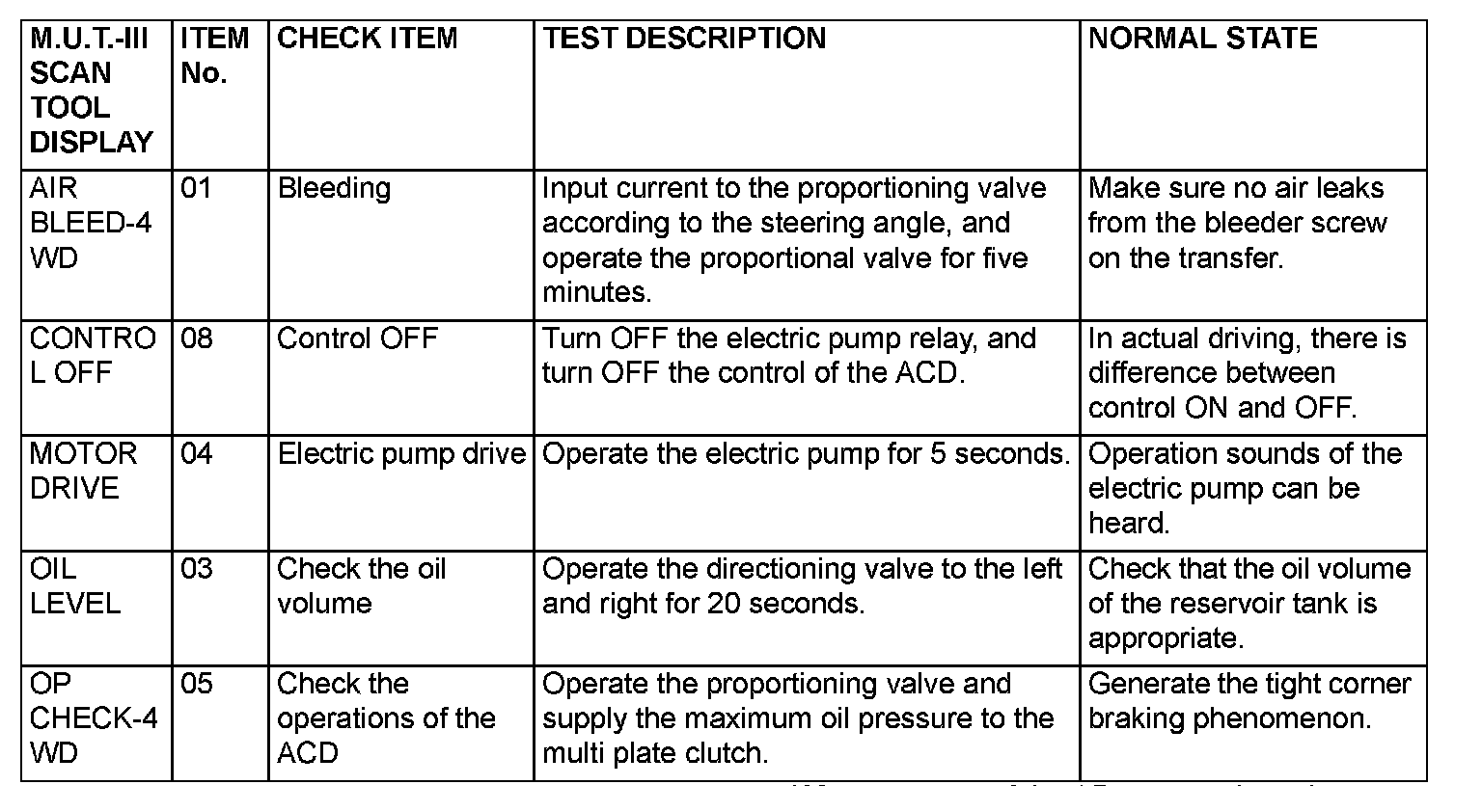

ACTUATOR TEST REFERENCE TABLE

ACTUATOR TEST REFERENCE TABLE:

1. The actuator test can be executed only when all the following conditions are satisfied.
^ All ABS sensor inputs below 20 km/h (12 mph).
^ No system malfunction detected.
^ Steering angle is within ± 30 degrees from the neutral position.

2. When the actuator test corresponds to one of the following conditions, forced driving will be cleared.
^ When any one of the ABS sensor input is detected to be above 20 km/h (12 mph). (excluding Item No.08 "Control OFF").
^ When system malfunction is detected. (excluding diagnostic code No.82, 85).
^ When the forced drive time is exceeded.
^ When the scan tool is removed.
^ When the clear key of the scan tool is operated.
